Solar Tracker Actuator Slewing Drive Slewing Motor

Coresun Drive Equipment Changzhou Co., Ltd.
  • Application：Motor
  • Type：Gear Reducer
  • Motor：24VDC
  • Holding Torque：43kn.M
  • Tilting Moment Torque：54.3kn.M
  • Output Torque：1029.6kn.M

Base Info

  • Model NO.：SC12-78-24H3033-REV. A
  • Output Speed：0.038rpm
  • Inner Mounting Size：259mm
  • Outer Mounting Size：358mm
  • Precision：0.15 Degree
  • Corrosion Protection：C3
  • Transport Package：Wooden Case with Vci Package
  • Specification：SC12-78-RC-24H3033-REV. A
  • Trademark：Coresun Drive
  • Origin：Changzhou, China
  • HS Code：8483409000
  • Production Capacity：3000PCS,Month

Description

Model

SC12

Place of Origin

Changzhou,China

Brand

Coresun Drive

Type

Single Axis

IP Class

IP65

Output Torque

1029.6N.m

Tilting Moment Torque

54.3KN.m

Holding Torque

43KN.m

Mounting Bolts

M16

Color

Grey or Black

Gear Ratio

78:1

Efficiency

40%



High quality sun tracker slewing drive worm gear for solar tracker design

Solar Tracker Actuator Slewing Drive Slewing Motor
Solar Tracker Actuator Slewing Drive Slewing Motor

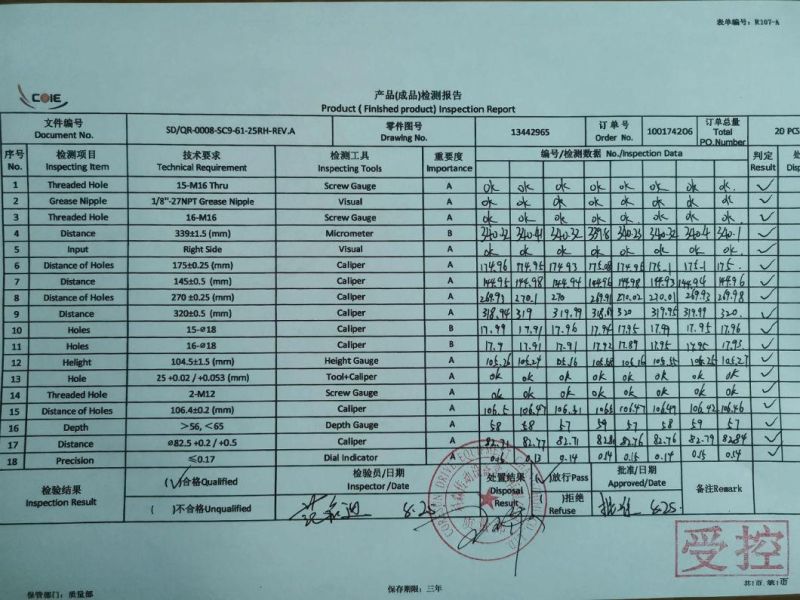

For worm shaft,slewing gear and casting housing Coresun Drive makes 100% finished product inspection
Solar Tracker Actuator Slewing Drive Slewing Motor

Solar Tracker Actuator Slewing Drive Slewing Motor

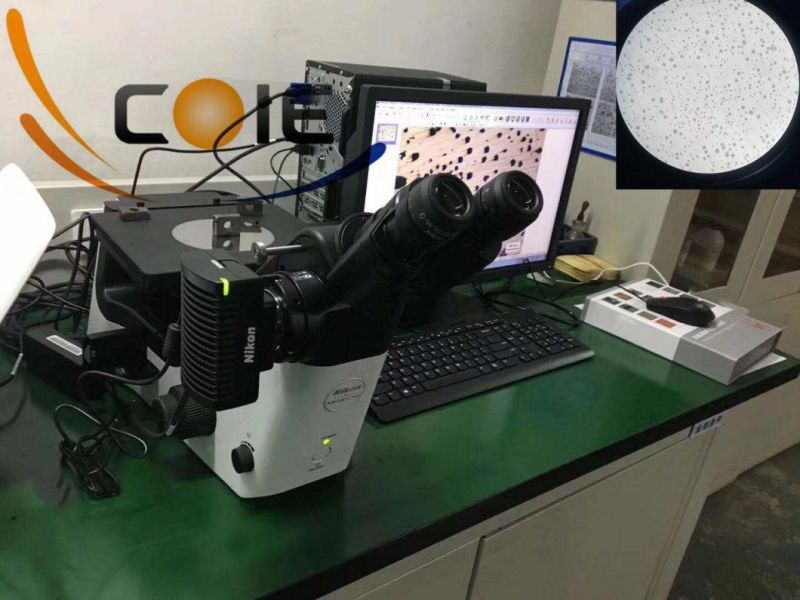

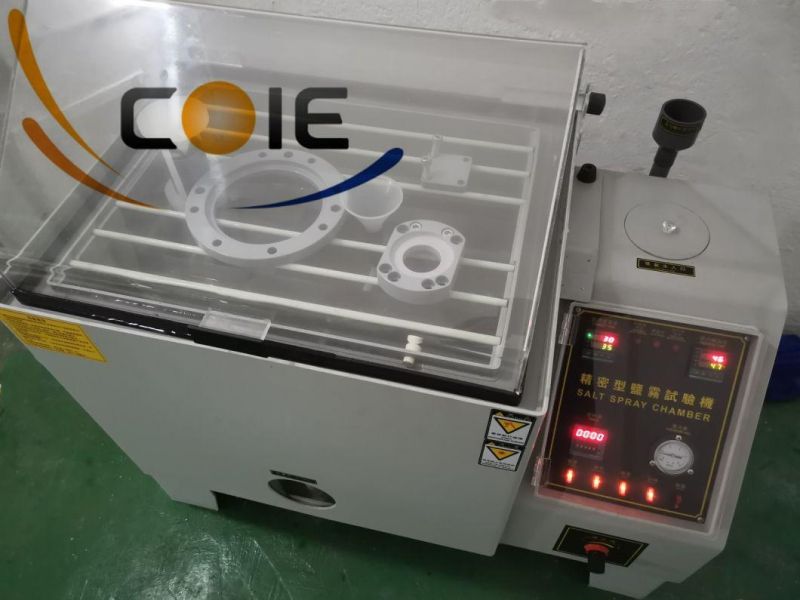

Coresun Drive processes the Slewing Drive Motor metallographic testing to ensure the quality of raw material and makes the salt &spray testing to make sure the anti-corrosionperformance.

Solar Tracker Actuator Slewing Drive Slewing Motor
Solar Tracker Actuator Slewing Drive Slewing Motor
