Dual Axis Slewing Drive Worm Gear Motor Drive
Coresun Drive Equipment Changzhou Co., Ltd.- Application：Motor
- Type：Gear Reducer
- Motor：24VDC
- Holding Torque：1100n.M
- Tilting Moment Torque：2200n.M
- Output Torque：446n.M
Base Info
- Model NO.：SVH3-62B-RC-2430018
- Output Speed：0.5rpm
- IP Class：IP65
- Slef-Locking：Yes
- Precision：0.1 Degree
- Mounting Hole：6xm10
- Corrosion Protection：C3
- Mounting Specification：100mm
- Transport Package：Wooden Case with Vci Package
- Specification：SVH3-62B-RC-2430018
- Trademark：Coresun Drive
- Origin：Changzhou, China
- HS Code：8483409000
- Production Capacity：3000PCS,Month
Description
Model
SVH3
Place of Origin
Changzhou,China
Brand
Coresun Drive
Type
Dual Axis
IP Class
IP65
Output Torque
446N.m
Tilting Moment Torque
1100N.m
Holding Torque
2000N.m
Mounting Bolts
M10
0.5rpm
Gear Ratio
62:1
Efficiency
40%

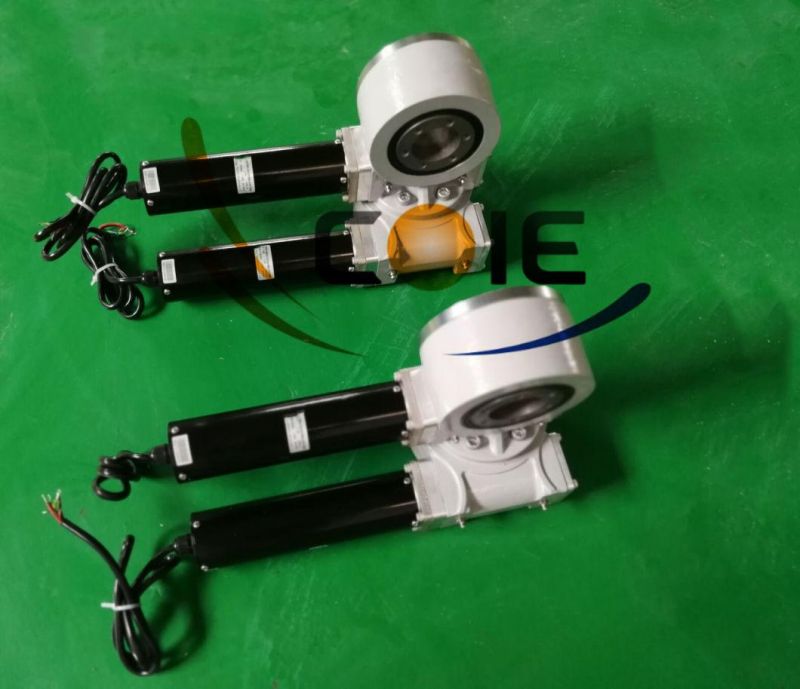

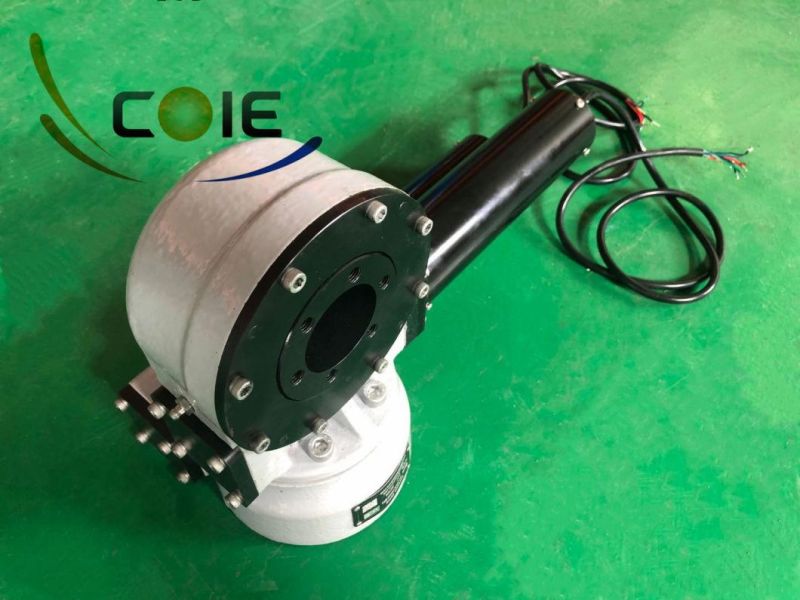

3" SVH3 Slewing Drive Production Photo
The definition of altitude angle is the angle formed between a horizontal plane and an imaginary line pointed to the sun. The azimuth angle is a horizontal angular distance from a reference direction, usually north.
Generally, these trackers are set up as alt-azimuth mounts, meaning the axes move vertically (the altitude) and horizontally (azimuth). This reduces the issue of ground clearance, which can be a problem with equatorial mounts, but it requires a controller to make the adjustments in driving two motors.
In addition to the benefit for concentrating collectors, dual-axis tracking is sometimes used with flat collectors. A flat collector always receives the maximum amount of solar energy if it is oriented so that the direct radiation is perpendicular to its surface.
A dual-tracker moves the collector continuously during daylight hours to meet this condition, thus maximizing the solar energy harvested.

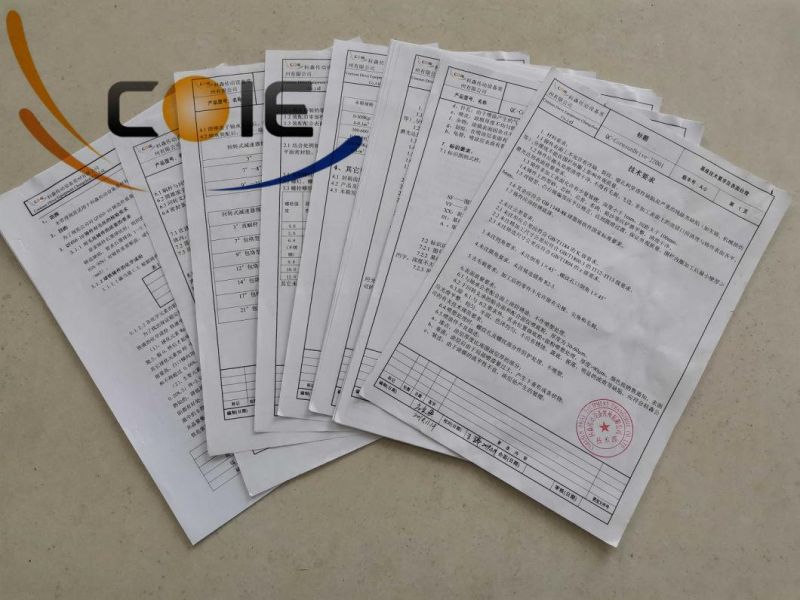

Coresun Drive processes the Slewing Drive Worm Gear Slewing Bearing metallographic testing to ensure the quality of raw material and follows the standard inspection specification.
