Vh3 High Precision Satellite Receiver Slewing Ring Slew Drive

Coresun Drive Equipment Changzhou Co., Ltd.
  • Application：Motor
  • Type：Gear Reducer
  • Motor：24VDC
  • Holding Torque：1100n.M
  • Tilting Moment Torque：2200n.M
  • Output Torque：716n.M

Base Info

  • Model NO.：VH3-62B-RC-24H3033
  • Output Speed：0.048rpm
  • IP Class：IP65
  • Slef-Locking：Yes
  • Precision：0.12 Degree
  • Mounting Hole：6xm10
  • Corrosion Protection：C3
  • Dynamic Axial Rating：9.6kn
  • Dynamic Radial Rating：8.4kn
  • Transport Package：Wooden Case with Vci Package
  • Specification：VH3-62B-RC
  • Trademark：Coresun Drive
  • Origin：Changzhou, China
  • HS Code：8483409000
  • Production Capacity：5000PCS,Month

Description

Model

VH3

Place of Origin

Changzhou,China

Brand

Coresun Drive

Type

Vertical Drive

IP Class

IP65

Output Torque

716N.m

Tilting Moment Torque

1100N.m

Holding Torque

2000N.m

Mounting Bolts

M10

Color

Grey or Black

Dynamic Axial Rating

9.6kN

Dynamic Radial Rating

8.4kN

Vh3 High Precision Satellite Receiver Slewing Ring Slew Drive

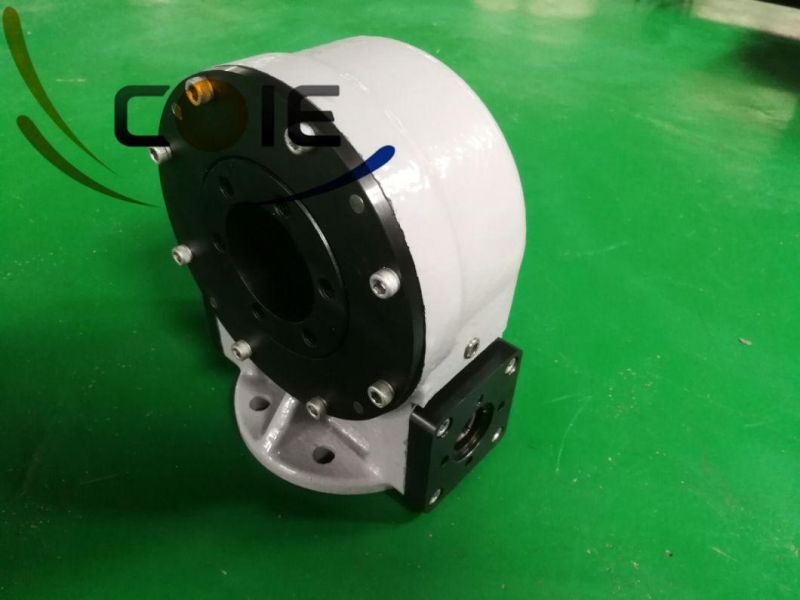

3" Slewing Drive Production Photo
Vh3 High Precision Satellite Receiver Slewing Ring Slew Drive

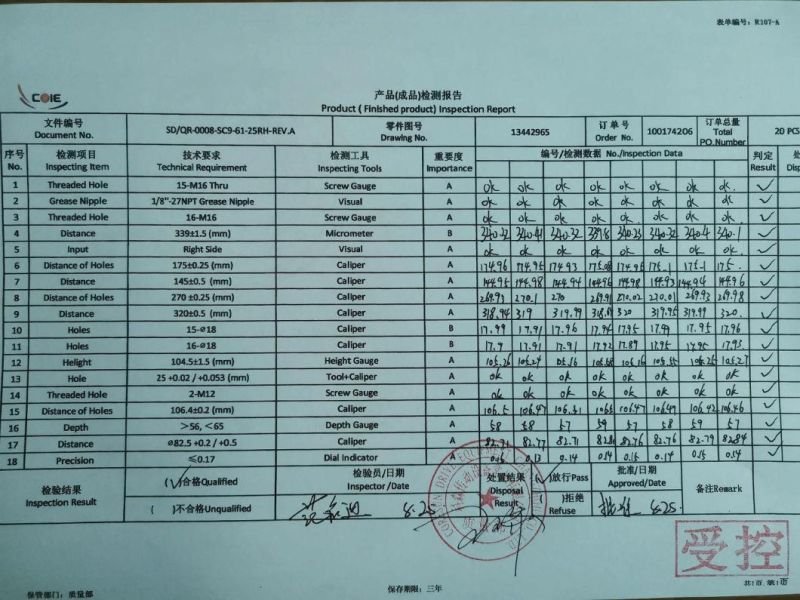

Coresun Drive's slewing drive gearbox slewing ring slewing bearing with 100% full Inspection process and inspection report to ensure the quality.


Vh3 High Precision Satellite Receiver Slewing Ring Slew Drive

Vh3 High Precision Satellite Receiver Slewing Ring Slew Drive
