Power Transmission Parts

Home > Product > Speed Reducer

Slewing Drive Slewing Gear Slewing Ring

Coresun Drive Equipment Changzhou Co., Ltd.
  • Application：Motor
  • Type：Gear Reducer
  • Motor：24VDC
  • Holding Torque：38.7kn.M
  • Tilting Moment Torque：33.9kn.M
  • Output Torque：2440kn.M

Base Info

  • Model NO.：SC9-61-RC-2430100
  • Output Speed：0.048rpm
  • Inner Mounting Size：175mm
  • Outer Mounting Size：270mm
  • Precision：0.1 Degree
  • Corrosion Protection：C3
  • Outer Dia.：175mm
  • Inner Dia.：270mm
  • Transport Package：Wooden Case with Vci Package
  • Specification：SC9-61B-RC
  • Trademark：Coresun Drive
  • Origin：Changzhou, China
  • HS Code：8483409000
  • Production Capacity：3000PCS,Month

Description

Model

SC9

Place of Origin

Changzhou,China

Brand

Coresun Drive

Type

Single Axis

IP Class

IP65

Output Torque

716N.m

Tilting Moment Torque

33.9KN.m

Holding Torque

38.7KN.m

Mounting Bolts

M16

Color

Grey or Black

Gear Ratio

61:1

Efficiency

40%

Slewing Drive Slewing Gear Slewing Ring

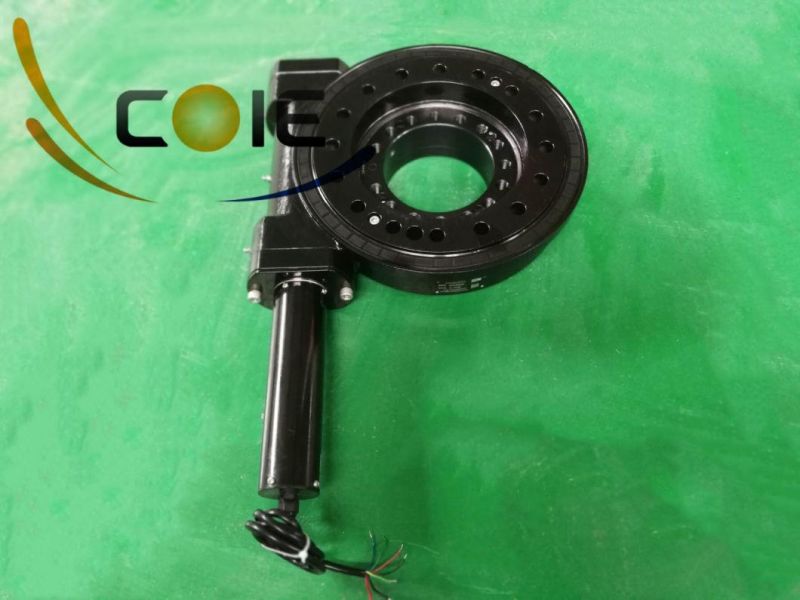

SC9 high quality hourglass slewing drive slewing gear motor production photo
Slewing Drive Slewing Gear Slewing Ring
Slewing Drive Slewing Gear Slewing Ring

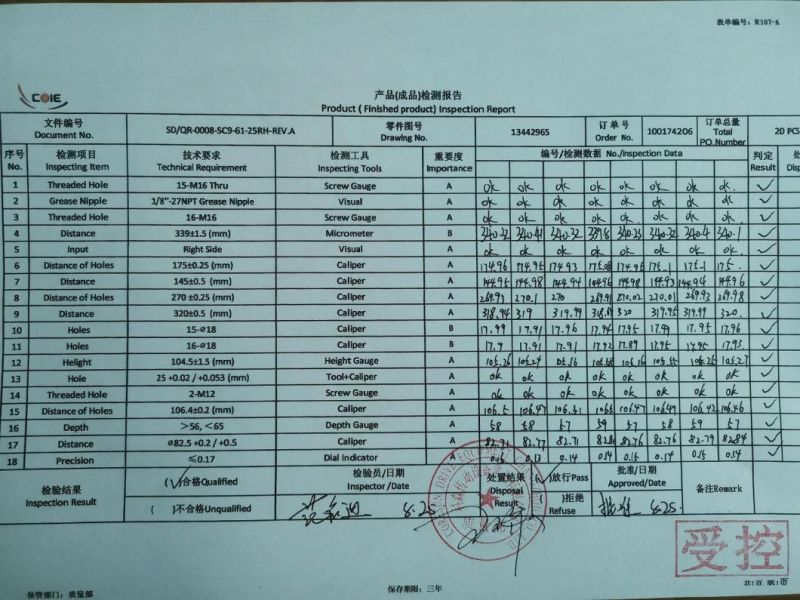

Coresun Drive makes 100% finished product inspection
Slewing Drive Slewing Gear Slewing Ring

Slewing Drive Slewing Gear Slewing Ring

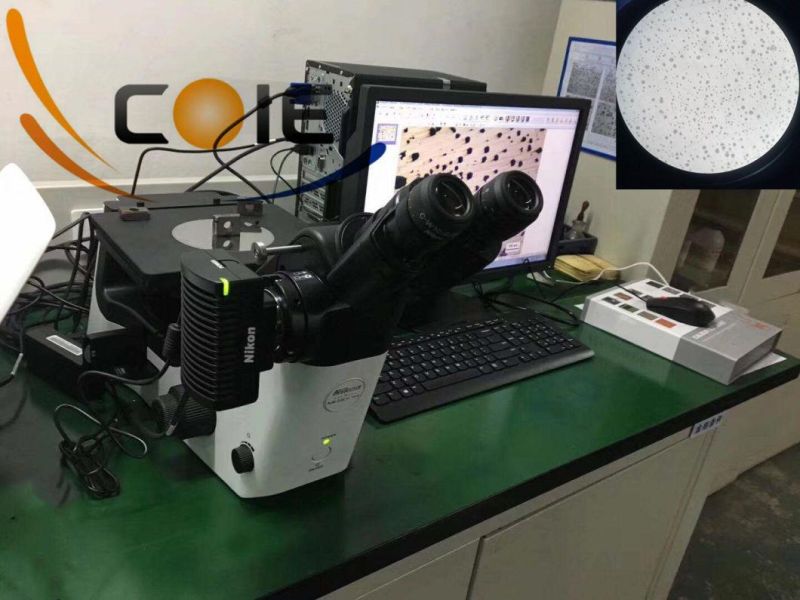

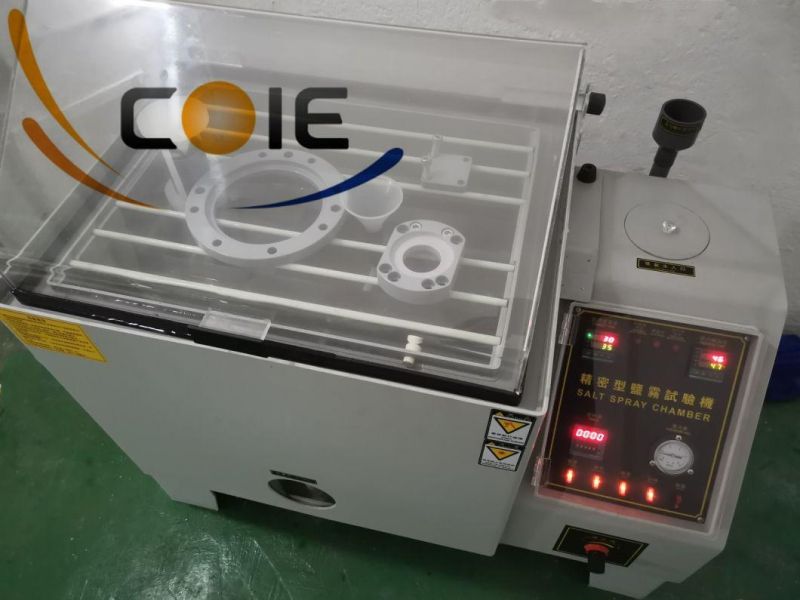

Coresun Drive processes the Slewing Drive Motor metallographic testing to ensure the quality of raw material and makes the salt &spray testing to make sure the anti-corrosionperformance.

Slewing Drive Slewing Gear Slewing Ring
Slewing Drive Slewing Gear Slewing Ring
