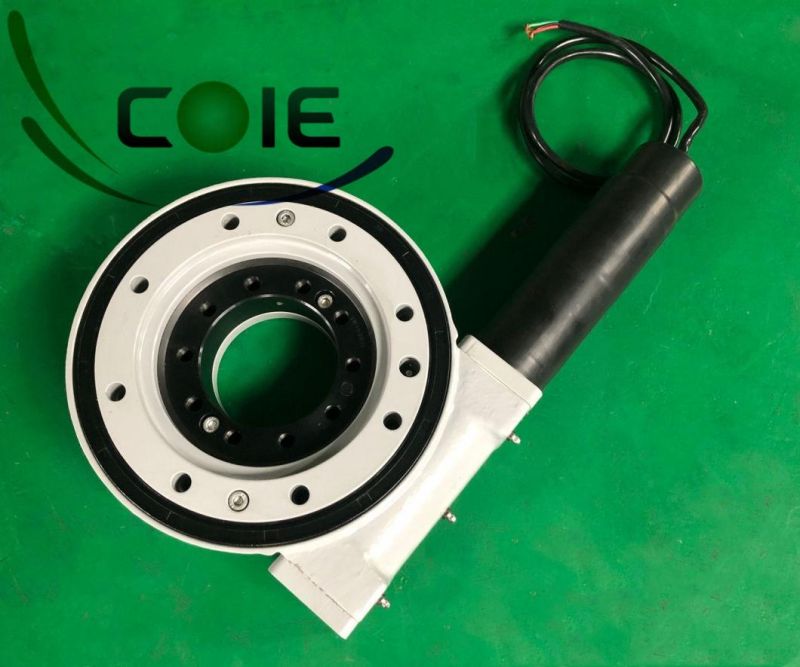

China High Quality Solar Tracker Slewing Drive Turntable Motor
Coresun Drive Equipment Changzhou Co., Ltd.- Application：Motor
- Type：Worm And Wormwheel
- Holding Torque：10400n.M
- Tilting Moment Torque：13500n.M
- Output Speed：0.048rpm
- Output Torque：994n.M
Base Info
- Model NO.：SC7-71-RC-24H7735
- IP Class：IP65
- Corrosion Protection：C4
- Delivery Time：7 Days
- Weight：24kg
- Gear Ratio：71:1
- Mounting Holes：M12
- Inner Dia.M：120.6mm
- Outer Dia.M：203.2mm
- Transport Package：Wooden Case
- Specification：SC7-71-RC-24H7735
- Trademark：Coresun Drive
- Origin：Changzhou, China
- HS Code：8483409000
- Production Capacity：5000PCS,Month
Description
Model
SC7
Place of Origin
Changzhou,China
Brand
Coresun Drive
Available Load Weight
200-500kg
IP Class
IP65
Output Torque
994N.m
Tilting Moment Torque
13500N.m
Holding Torque
10400N.m
Mounting Bolts
M12
120.6mm
Gear Ratio
71:1
Outer Dia.m
203.2mm

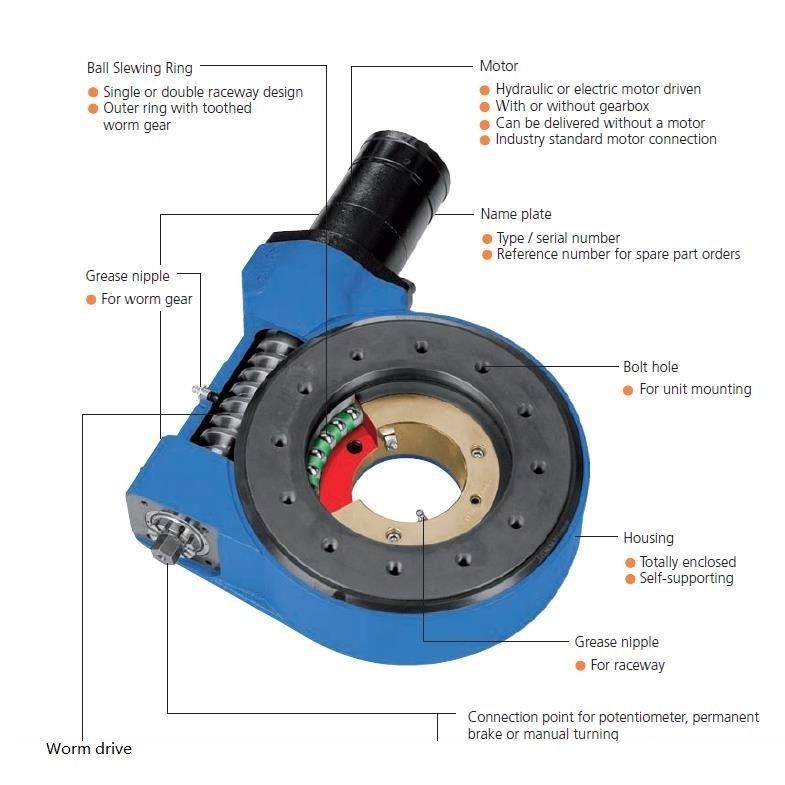

Characteristics Of Slewing Drive
Coresun Drive is professional on slewing drive for solar tracker system,on the basis of original design,we have improved the performance of worm shaft and end cap for ensuing the full strength on axis load for worm shaft side.So, it's much strong than the original model(the original design is 4 bolts,the new strong type is 8 bolts)
Coresun Drive Services & Strength
1.Raw material from reliable suppliers;2.Production process is in strict accordance with ISO9001 Quality Management System .
3.Strict in-process quality control and 100% finished product inspection before delivery;
4.Third party product inspections are acceptable upon customer request.
5.Adoption of standardized product design process and APQP, PPAP, FEMA for application analysis.
7 inch slewing gear motor worm drive is certificated by CE
