• Model NO.：SC3-62B-RC
• Delivery Time：7 Days
• Motor：24VDC
• Gear Ratio：62:1
• Inner Dia.：100mm
• Mounting Hole Size：6xm10
• Transport Package：Wooden Case Vci Package

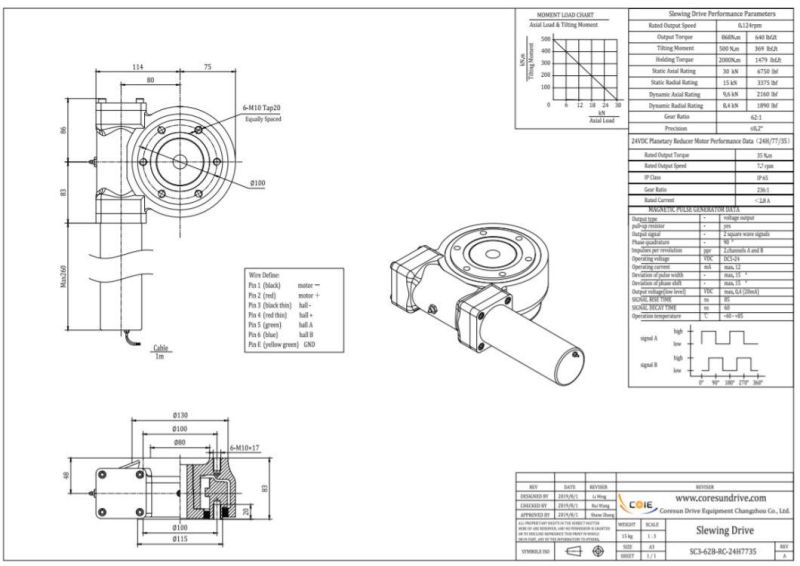

• Specification：SC3-62B-RC-24H3033-REV. A
• Trademark：Coresun Drive
• Origin：Changzhou, China
• HS Code：8483409000
• Production Capacity：5000PCS,Month

Model

SC3

Place of Origin

Changzhou,China

Brand

Coresun Drive

Available Load Weight5

50-200kg

IP Class

IP65

Output Torque

716N.m

Tilting Moment Torque

1.1KN.m

Holding Torque

2.2KN.m

Static Axial laod rating

20kN

15kN

Gear Ratio

62:1

Motor

24V DC

Characteristics Of Slewing Drive

CoreSun - Practical Slewing Drive&Slewing Bearing Promoter.  We are committed to researching, developing and applying high quality, precision transmission equipment products,who provides reliable mechanical actuator for horizonal single axis, dual-axis photovoltaic tracking system, CSP,CPV solar tracking design.Our professional and high-quality products will be also applied well as a steady solution on aerial working platform, truck crane, timber grab, drilling rig, spray equipment, hydraulic module vehicle,automated assembly lines, wind yaw systems,etc.

The worm slewing drive is a new type of slewing product, usually called slewing ring, which is usually composed of worm, slewing ring, housing, motor and other components. Since the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new rotary drive features easy installation, easy maintenance and a greater degree of installation space. Application area Slewing drive are widely used in PV,CPV,STP solar tracking systems and construction applications including truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications.

The slewing drive is a gearbox that can safely hold radial and axial loads, as well as transmit a torque for rotating. The rotation can be in a single axis, or in multiple axes together. Slewing ring drives are made by manufacturing gearing, bearings, seals, housing, motor and other auxiliary components and assembling them into a finished gearbox.

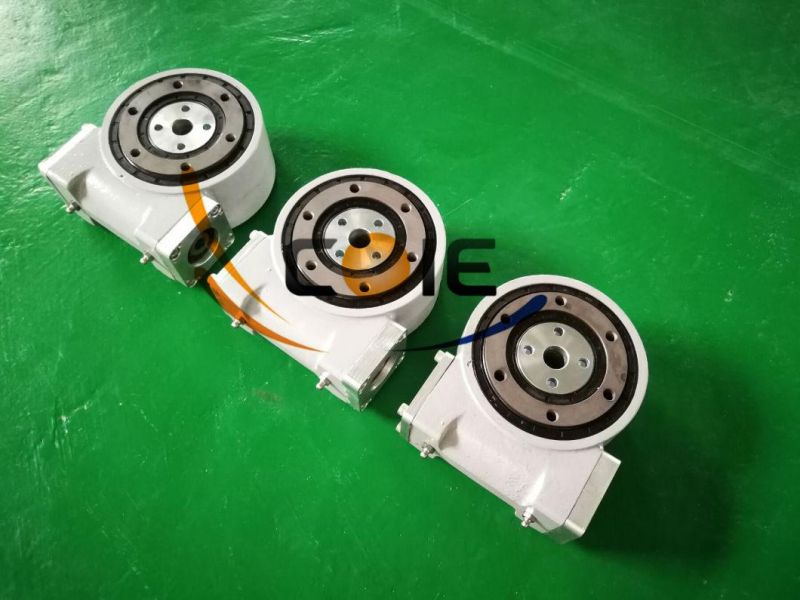

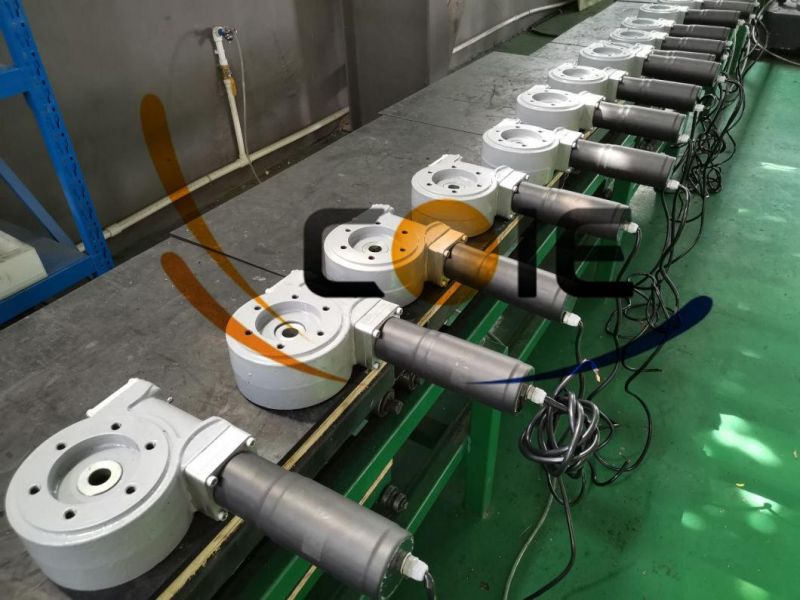

Production Photo and Application



Coresun Drive processes 100% finished product inspection

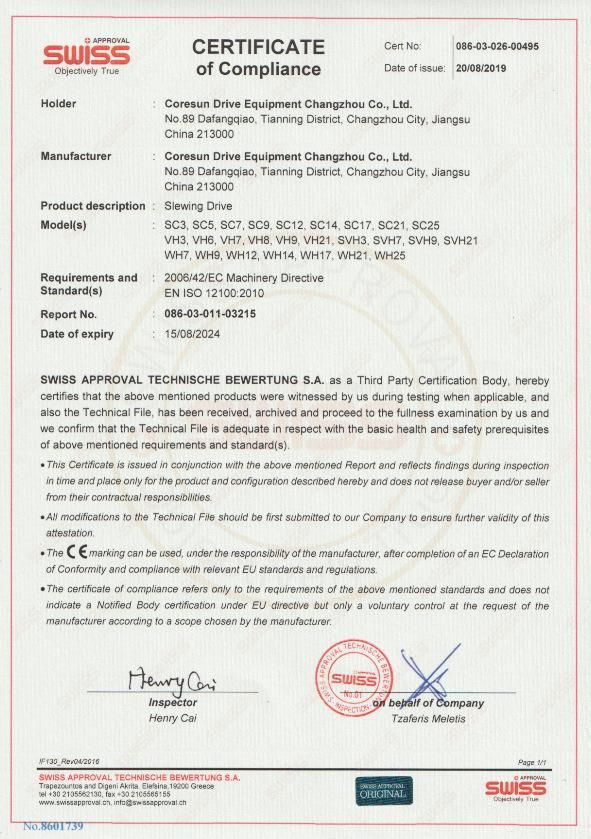

SC3 slewing drive gear motor with 24VDC motor is certificated by CE

It is sincerely looking forward to cooperating with you for and providing you the best quality product & service with all of our heart!
