• Model NO.：SC9-61-RC-24H3033-REV. A
• Delivery Time：7 Days
• Weight：54kg
• Gear Ratio：61:1
• Static Axial Load Rating：338kn
• Static Radial Load Rating：135kn
• Color：Grey
• Mounting Bolts：M16
• Transport Package：Wooden Case
• Specification：SC9-61-RC-24H3033-REV. A
• Trademark：Coresun Drive
• Origin：Changzhou, China
• HS Code：8483409000
• Production Capacity：5000PCS,Month

Model

SC9

Place of Origin

Changzhou,China

Brand

Coresun Drive

Available Load Weight

500-800kg

IP Class

IP65

Output Torque

805N.m

Tilting Moment Torque

33.9KN.m

Holding Torque

38.7KN.m

Static Axial laod rating

338kN

135kN

Gear Ratio

61:1

Mounting Bolts

M16

Characteristics Of Slewing Drive

The slewing drive is a new type of slewing product, usually called slewing ring, which is usually composed of worm, slewing ring, housing, motor and other components. Since the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new slewing drive features easy installation, easy maintenance and a greater degree of installation space.

Slewing drive are widely used in PV,CPV,STP solar tracking systems and construction applications including truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications.

1) Real & valid experimental data
CoreSun promises to offer the most accurate data by experiment for ensuing the technical parameters meet        requirements

2)Economical & practical production
From the customer's perspective, providing the cost-effective production.

3)Customzied Solution
We design and make various special and non-standard as customers' requirement

4)Mutual respectable  & growth
The key to teamwork is respect for each other. Common development with our customers.

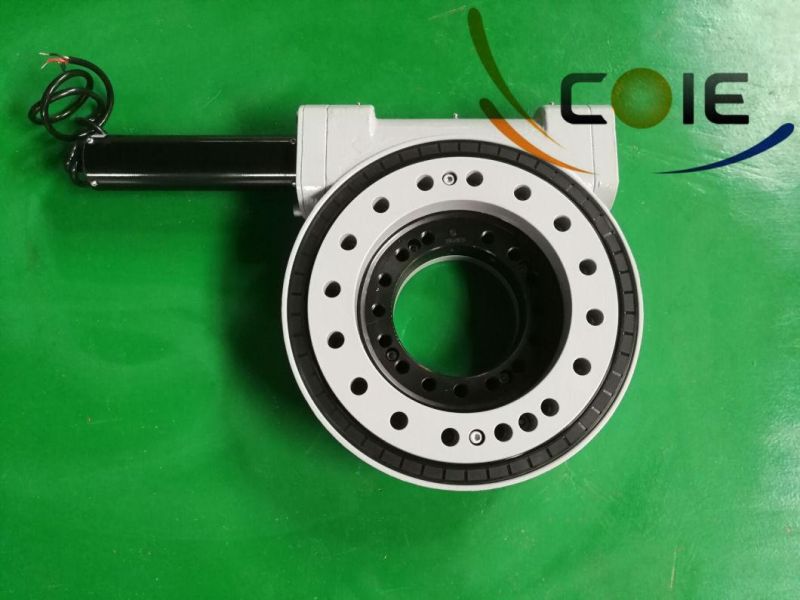

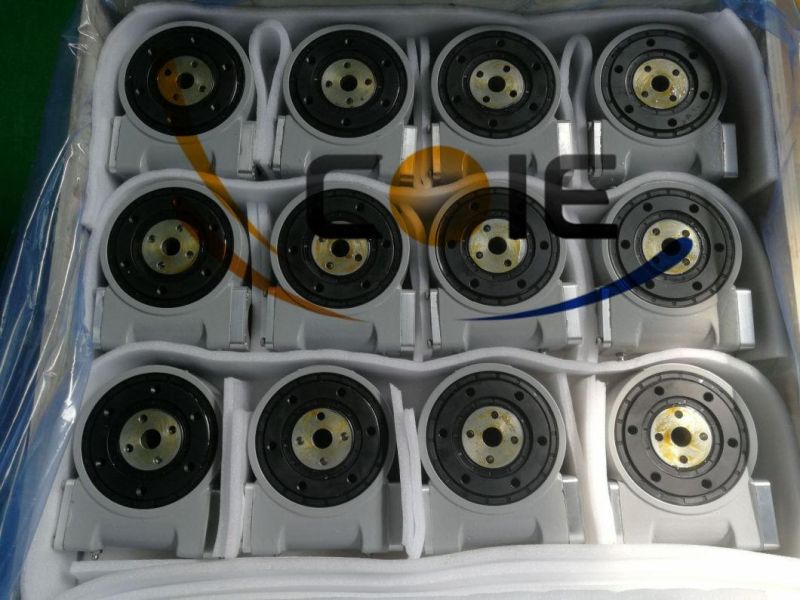

Production Photo and Application

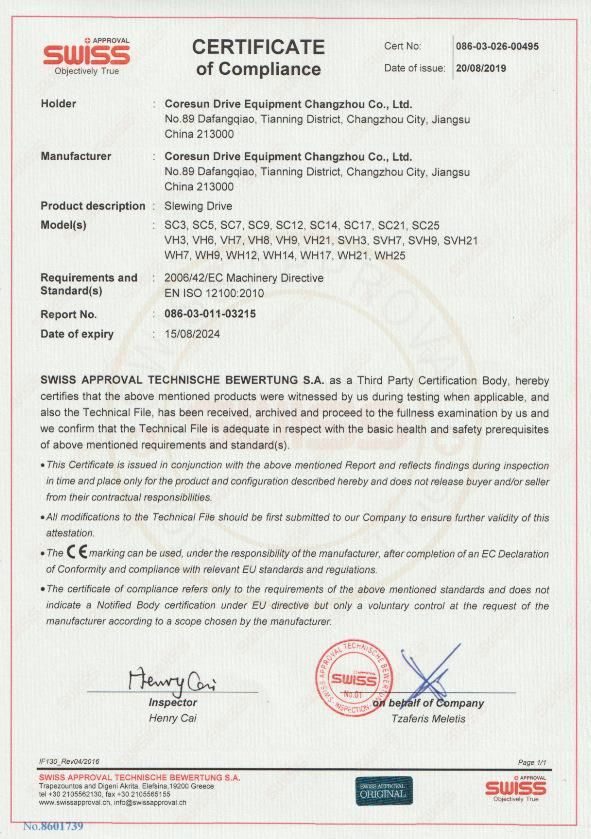

SC9 slewing drive gear motor with 24VDC motor is certificated by CE

It is sincerely looking forward to cooperating with you for and providing you the best quality product & service with all of our heart!
