• Model NO.：SC3-62B-RC-24H3033
• IP Class：IP65
• Corrosion Protection：C4
• Delivery Time：7 Days
• Weight：15kg
• Gear Ratio：62:1
• Mounting Holes：M10
• Static Axial Rating：30kn
• Static Radial Rating：15kn
• Color：Grey
• Transport Package：Wooden Case
• Specification：SC3-62B-RC
• Trademark：Coresun Drive
• Origin：Changzhou, China
• HS Code：8483409000
• Production Capacity：5000PCS,Month

Model

SC3

Place of Origin

Changzhou,China

Brand

Coresun Drive

Available Load Weight

50-200kg

IP Class

IP65

Output Torque

818N.m

Tilting Moment Torque

1.2KN.m

Holding Torque

2.2KN.m

Mounting Bolts

M10

62:1

Color

Grey

Efficiency

40%

Characteristics Of Slewing Drive

Coresun strives to create a good corporate environment, improve employees' cultural literacy and moral standards, promote employee communication and enhance cohesion, and at the same time promote the company's corporate culture concept, enrich employees' amateur cultural life, and broaden their horizons. The formation of cohesion, centripetal force and binding force within the enterprise will enable the enterprise to have a positive effect, thereby enhancing its competitiveness.

Coresun Drive is professional on slewing drive for solar tracker system,3 inch is our smallest product used on 2-8 square meter solar tracker application and small solar dish.SC models is hourglass worm design with much tooth contact structure.All-around anti-corrosion and anti-rust performance.SC series has High tilting moment torque
Steady static locking  performance,Smooth transmission.

The SC product is an upgraded version of our classic SD series product. The product adopts the enveloping worm and helical gear meshing transmission, multi-tooth meshing, large tooth surface contact area, and strong tooth structure. The tooth part of the slewing bearing adopts quenching treatment. After treatment, the tooth part has high hardness, strong wear resistance and long service life. It has strong anti-overturning ability and high safety performance.

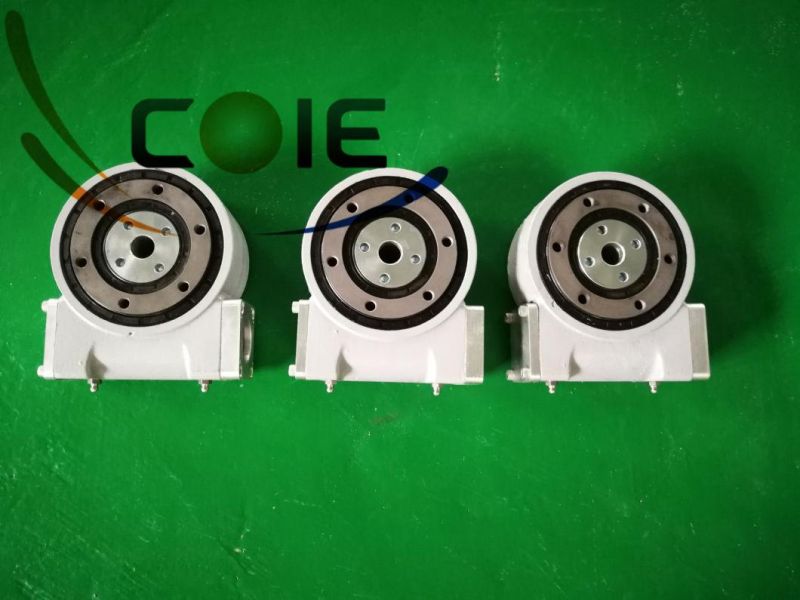

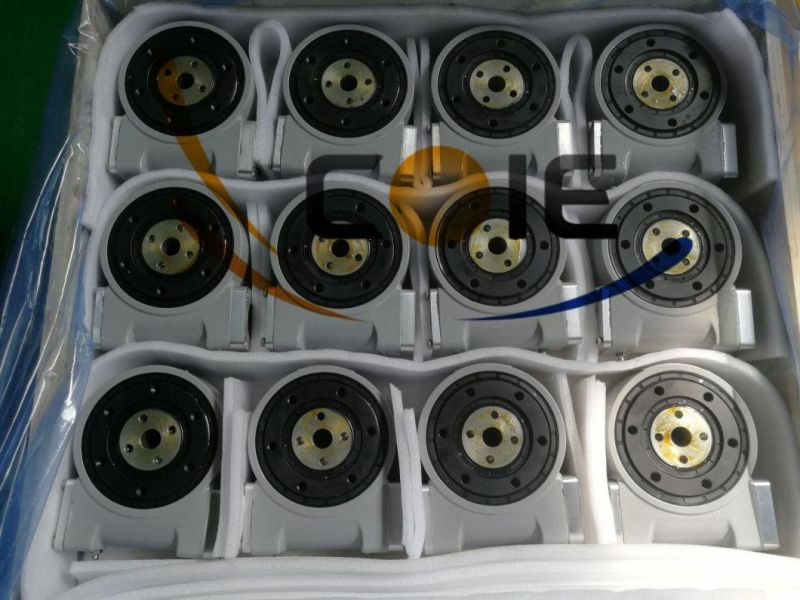

Production Photo

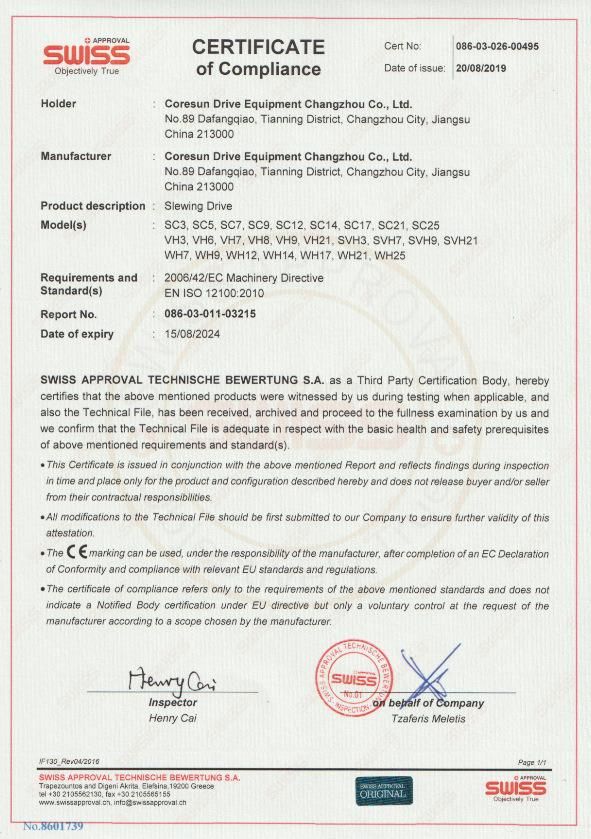

 3 inch slewing gear motor worm drive is certificated by CE

It is sincerely looking forward to cooperating with you for and providing you the best quality product & service with all of our heart!
