• Model NO.：SC14-85-RC-24H30100-REV. A
• Weight：72kg
• Gear Ratio：85:1
• Outer Dia.M：390mm
• Inner Dia.M：295mm
• Transport Package：Standard Wooden Case
• Specification：SC14-85-RC-24H30100-REV. A
• Trademark：Coresun Drive
• Origin：Changzhou, China
• HS Code：8483409000
• Production Capacity：5000PCS,Month

Model

SC14

Place of Origin

Changzhou,China

Brand

Coresun Drive

Inner Dia.m

295mm

Outer Dia.m

390mm

Output Torque

3.4kN.m

Tilting Moment Torque

67.8kN.m

Holding Torque

48kN.m

Precision

0.17°

≤4.5A

Gear Ratio

85:1

Efficiency

40%

Mechanism Characteristics:

1. SC series slewing drive, we use framework oil sealing so it has the higher performance of waterproof and dustproof than traditional oil seal.

2.SC has the performance of self eccentric function and higher tracking precision. So, the backlash between the worm and gear can be adjust.

3. SC series,on the basis of original design,we have improved the performance of worm shaft and end cap for ensuing the full strength on axis load for worm shaft side.

4.The key point of slewing drive is holding torque and tilting moment for solar tracker system.

5.On the basis of original design,we have improved the performance of worm shaft and end cap for ensuing the full strength on axis load for worm shaft side,especially for     strong wind force.So, it's much strong than the original model(the original design is 4 bolts,the new strong type is 8 bolts)

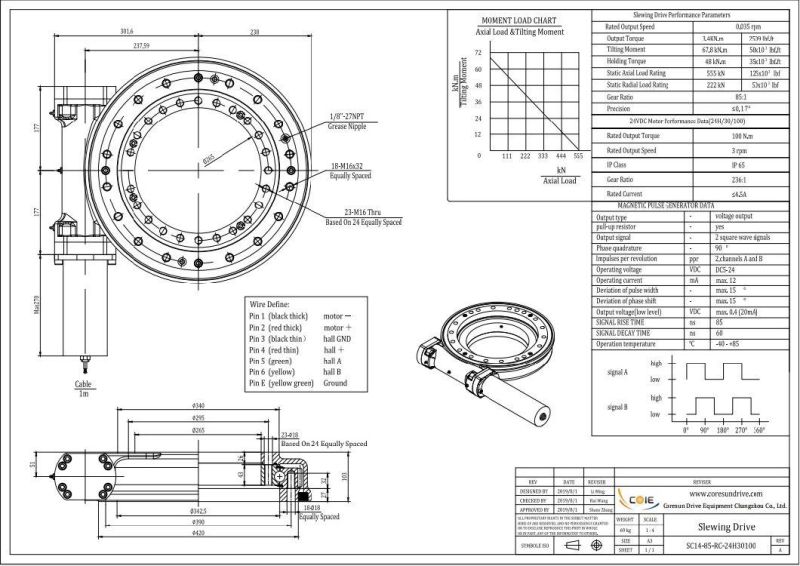

SC14 single axis slewing drive gearbox for CPV, PV solar tracker system

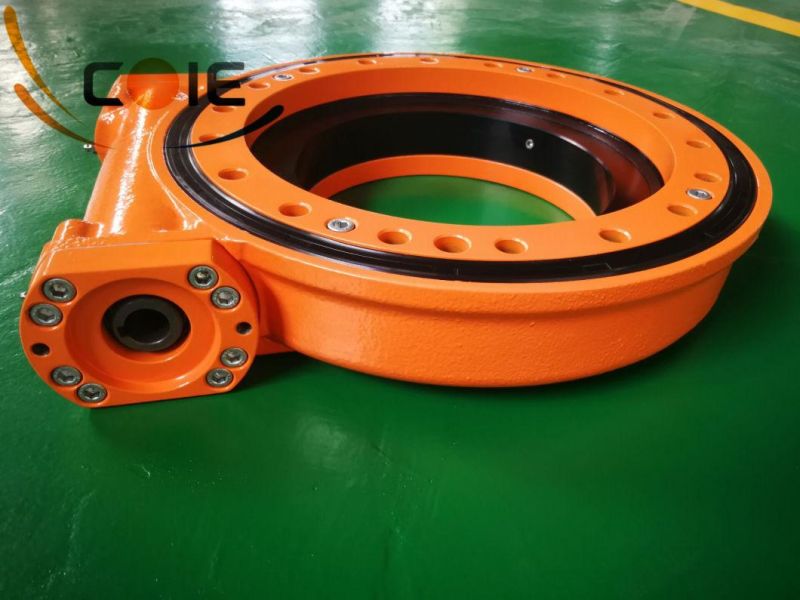

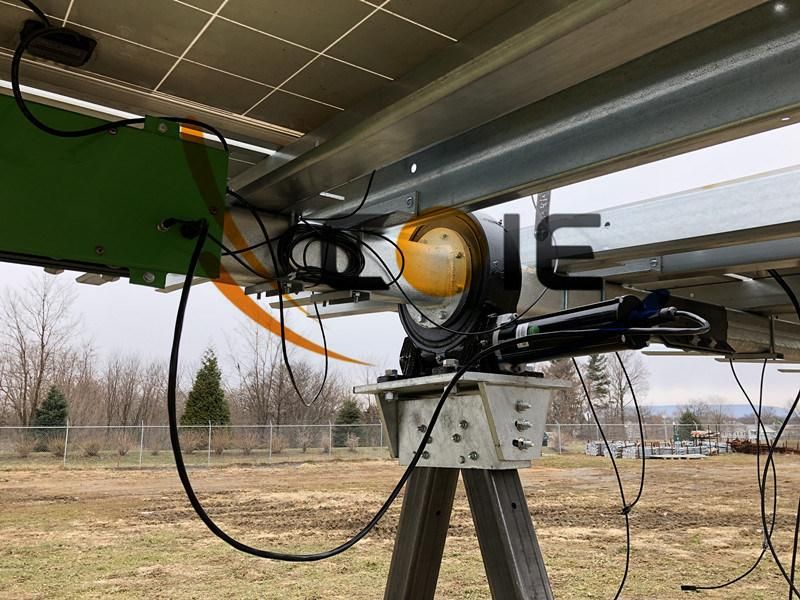

Production Photo and Application

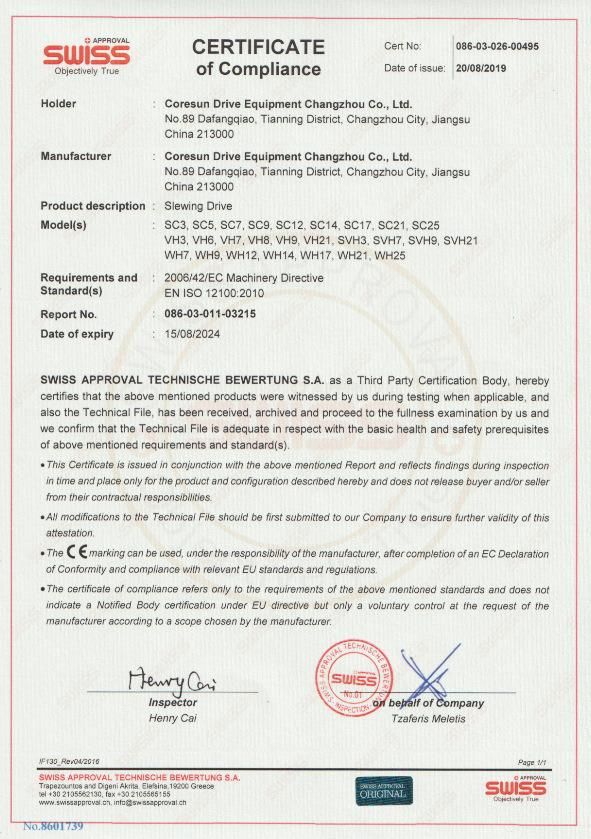

SC14 slewing drive with 24VDC motor is certificated by CE

It is sincerely looking forward to cooperating with you for and providing you the best quality product & service with all of our heart!
