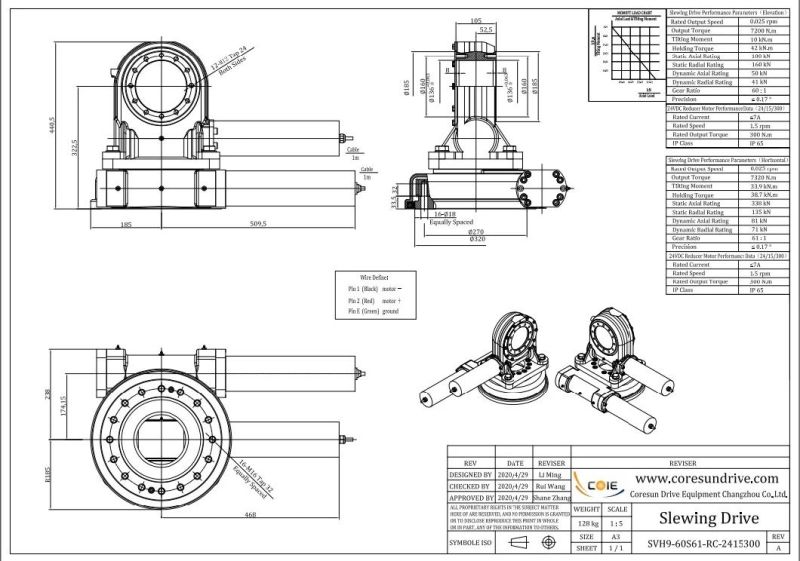

• Model NO.：SVH9-60S61-RC-2415300-REV. A
• Delivery Time：7 Days
• Weight：120kg
• Gear Ratio：60:1
• Static Axial Rating：100kn
• Transport Package：Standard Exporting Package
• Specification：SVH9-60S61-RC-2415300-REV. A
• Trademark：Coresun Drive
• Origin：Changzhou, China
• HS Code：8483409000
• Production Capacity：5000PCS,Month

Model

SVH9

Place of Origin

Changzhou,China

Brand

Coresun Drive

Type

Dual Axis

IP Class

IP65

Output Torque

7200N.m

Tilting Moment Torque

10kN.m

Holding Torque

42kN.m

160kN

Gear Ratio

60:1

Efficiency

40%

Worm gear slewing drive and worm structure is often used to transfer motion and power between two staggered shafts.Worm gear and worm in the middle plane is equivalent to gear and rack, worm and screw shape is similar.

Mechanism Characteristics

1.Double output structure
2.SVH9 is made by framework oil sealing structure,so the waterproof and dustproof is much better than normal oil sealing production.
3.Special heat treatment,corrosion resistance
4.Built-in eccentric mechanism, ensure the accuracy requirements of the slewing drive
5.SVH9 have 8 bolts on worm shaft side,the original model just have 4 bolts.So,the axial load of SVH9 is more steady than the other model.

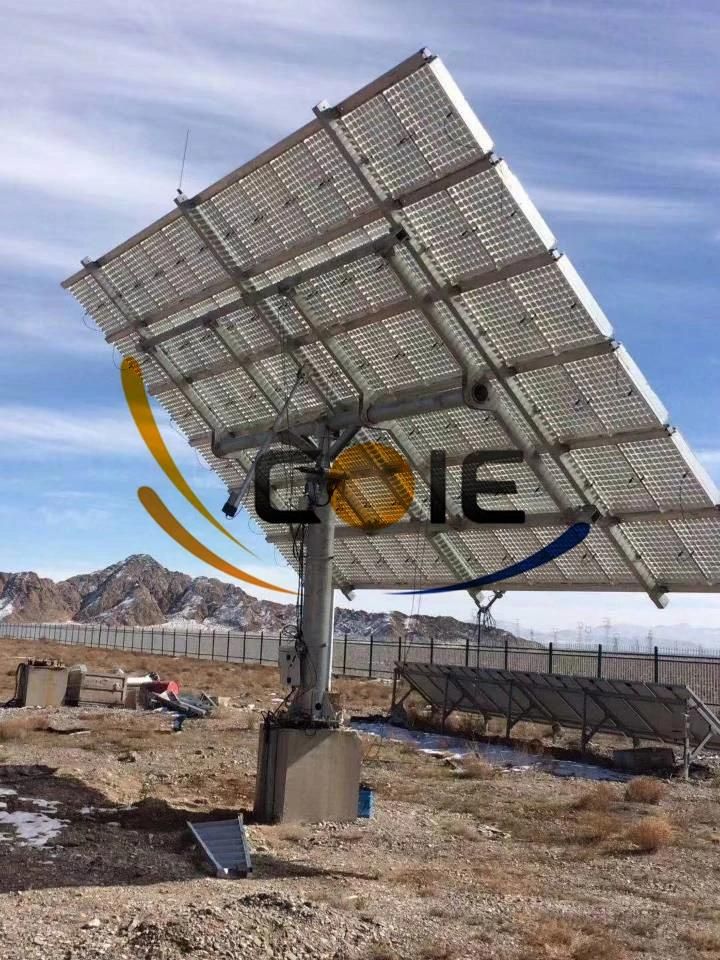

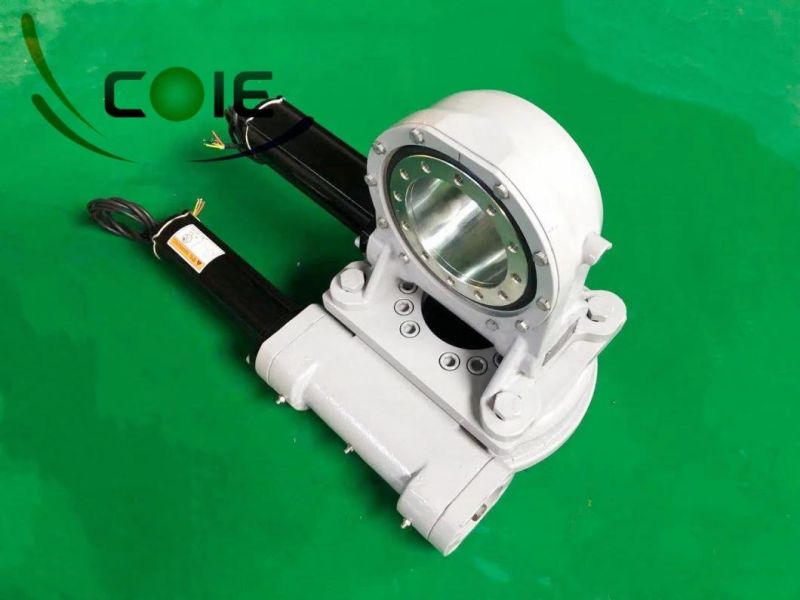

Production Photo and Application

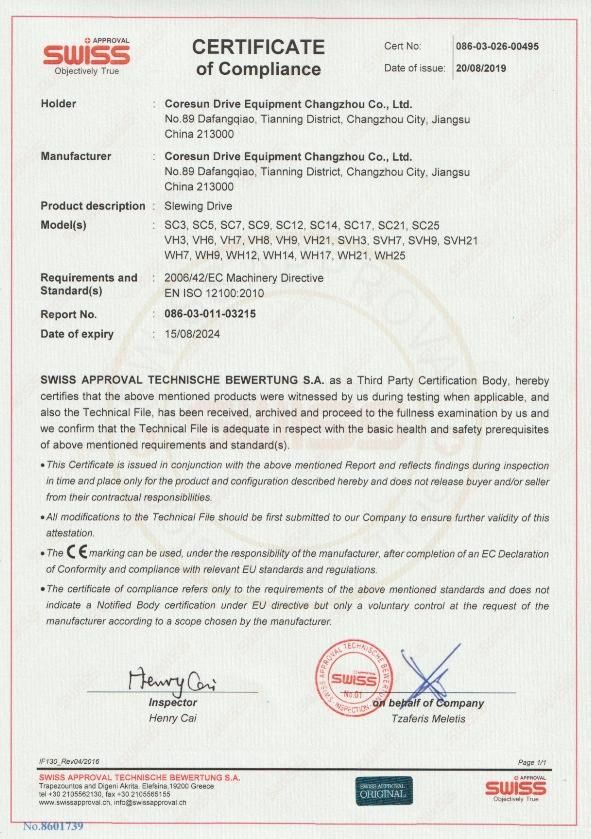

SVH9 slewing drive slewing gearbox with 24VDC motor is certificated by CE
