• Model NO.：SC14-85-RC-24H3033
• Weight：72kg
• Gear Ratio：85:1
• Transport Package：Standard Wooden Case
• Specification：SC14-85-RC-24H30100-REV. A
• Trademark：Coresun Drive
• Origin：Changzhou, China
• HS Code：8483409000
• Production Capacity：5000PCS,Month

Model

SC14

Place of Origin

Changzhou,China

Brand

Coresun Drive

Type

Single Axis

IP Class

IP65

Output Torque

3.4kN.m

Tilting Moment Torque

67.8kN.m

Holding Torque

48kN.m

Precision

0.17°

≤4.5A

Gear Ratio

85:1

Efficiency

40%

Mechanism Characteristics:

1. SC series slewing drive, we use framework oil sealing so it has the higher performance of waterproof and dustproof than traditional oil seal.

2.SC has the performance of self eccentric function and higher tracking precision. So, the backlash between the worm and gear can be adjust.

3. SC series,on the basis of original design,we have improved the performance of worm shaft and end cap for ensuing the full strength on axis load for worm shaft side.

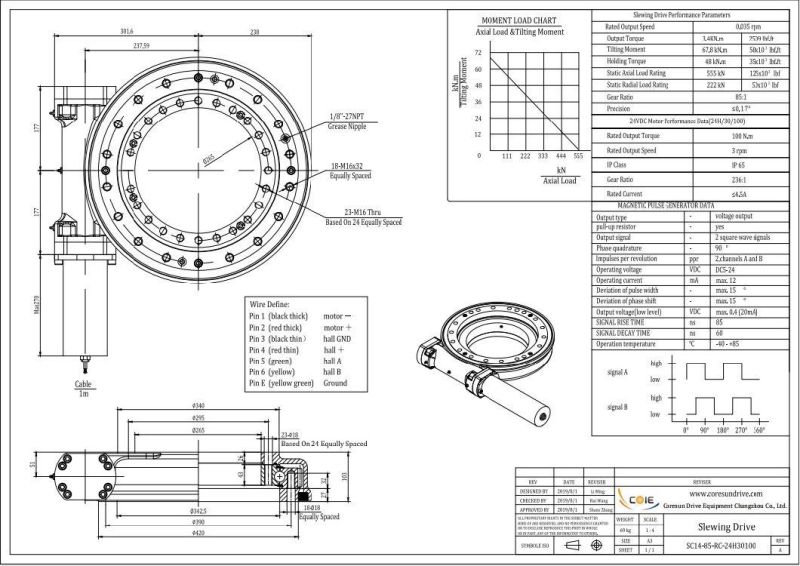

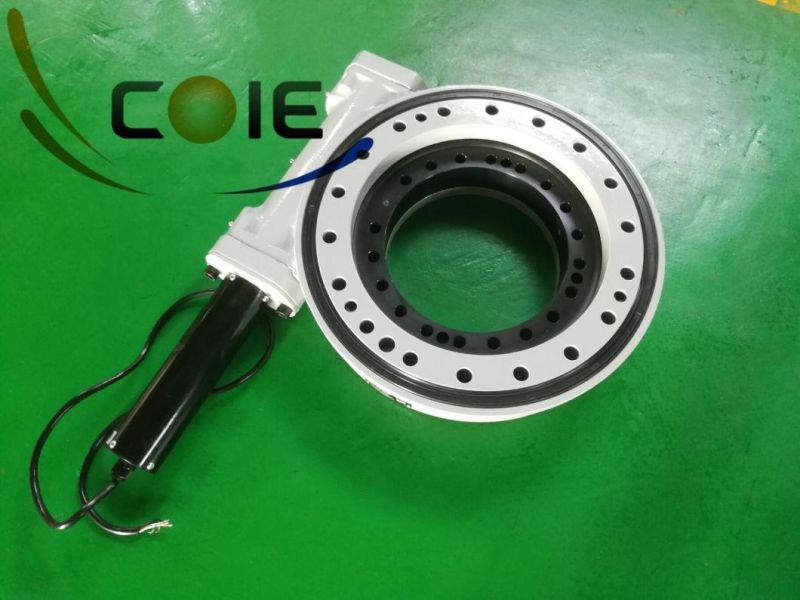

SC14 single axis slewing drive for solar tracker

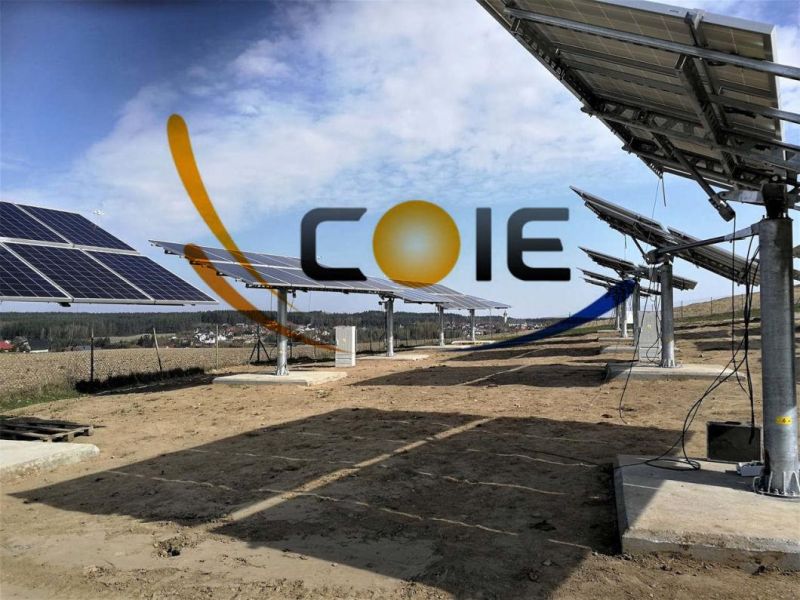

Production Photo and Application

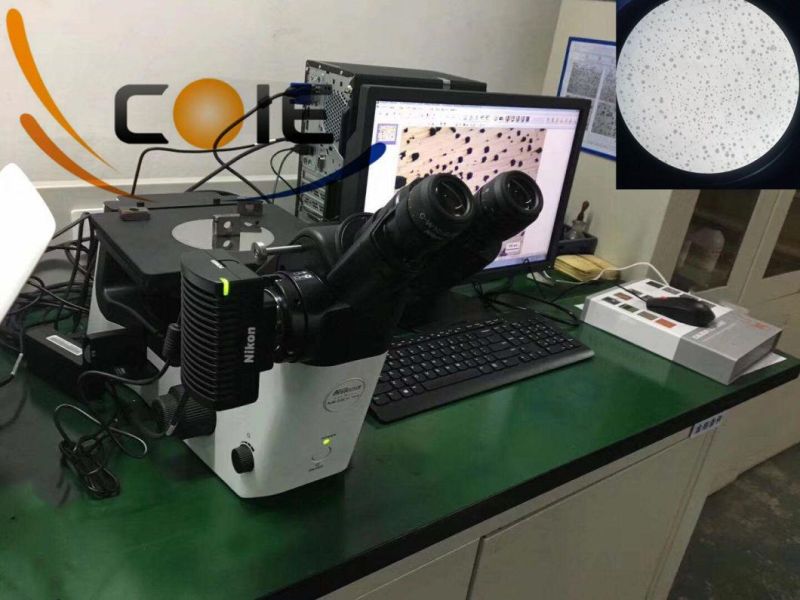

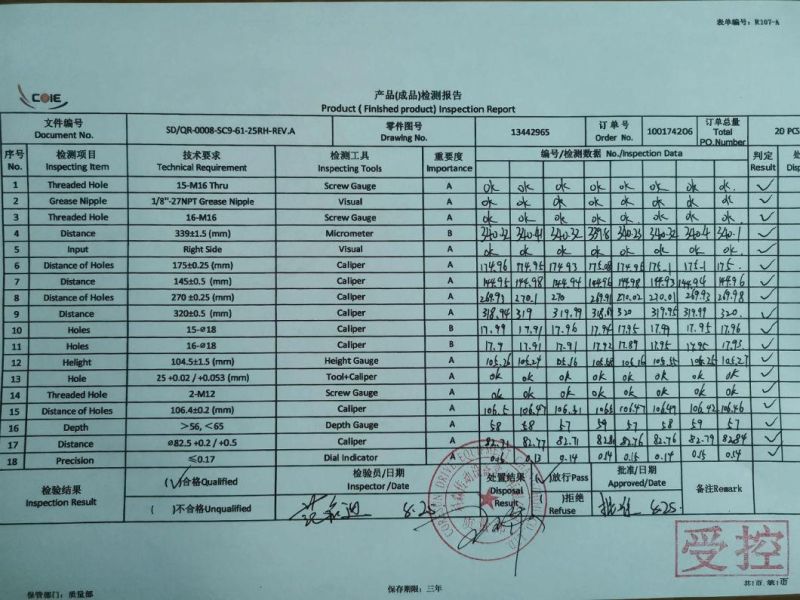

Coresun Drive processes the metallographic analysis to ensure the quality of raw material and 100% finished product inspection.

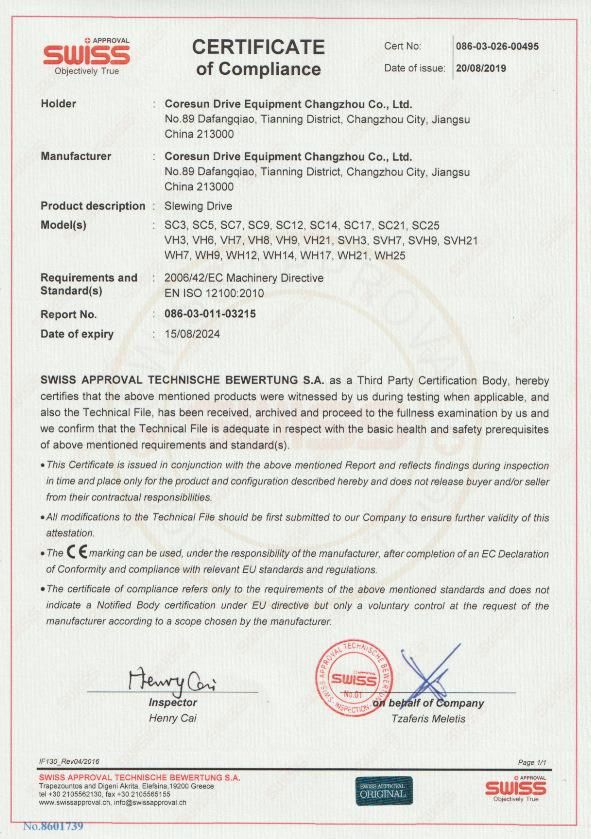

SC14 slewing drive with 24VDC 12VDC motor is certificated by CE
