• Model NO.：VH3-62B-RC-24H3033
• Corrosion Protection：C3
• Gear Ratio：62:1
• Dynamic Axial Rating：9.6kn
• Dynamic Radial Rating：8.4kn
• Static Axial Rating：30kn
• Static Radial Rating：15kn
• Transport Package：Wooden Case
• Specification：VH3-62B-RC-24H3033
• Trademark：Coresun Drive
• Origin：Changzhou, China
• HS Code：8483409000
• Production Capacity：6000PCS,Month

Model

VH3

Place of Origin

Changzhou,China

Brand

Coresun Drive

Dynamic Radial Rating

8.4kN

Dynamic Axial Rating

9.6kN

Output Torque

716N.m

Tilting Moment Torque

500N.m

Holding Torque

2000N.m

Color

Grey

Electrial Motor

24VDC

Gear Ratio

62:1

Efficiency

40%



Worm gear slewing drive and worm structure is often used to transfer motion and power between two staggered shafts.Worm gear and worm in the middle plane is equivalent to gear and rack, worm and screw shape is similar.

Mechanism Characteristics:

1. Double sealed, improve teh overall sealing performance of the slewing drive, more stable and reliable

2. The meshing surfaces of the two wheels are in line contact, and the bearing capacity is much higher than that of the staggered shaft helical gear mechanism.

3. Worm drive is equivalent to spiral drive, multi-tooth meshing drive, so the drive is stable and has little noise.

4. We are using deep groove ball bearing instead of needle bearing on both side of slewing gear ,which can improve mechnical efficiency,precision and rotate more smoothly for slewing drive

VH3 single axis slewing drive gearmotor is available to load 50-200kg weight:

For 4-6pcs solar panels tracking design

For 1-2.5 Dia. satellite receiver and solar dish system

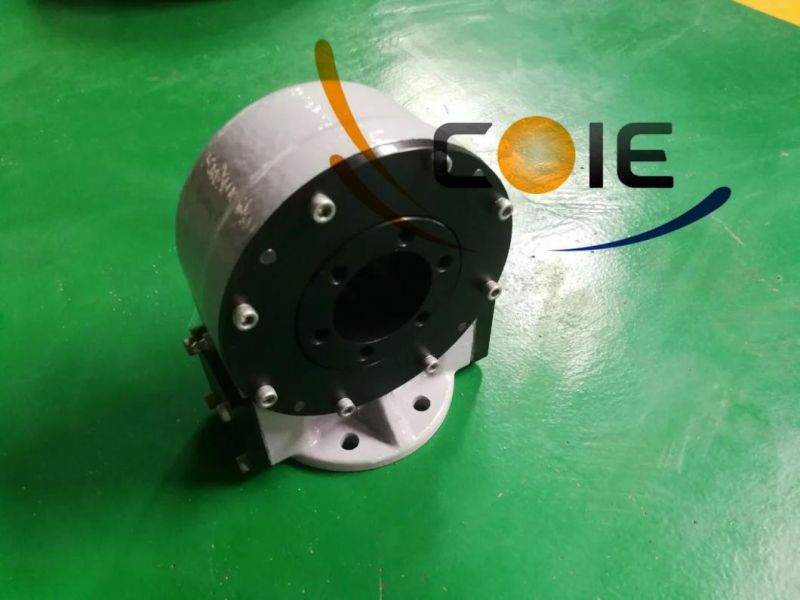

Production Photo and Application:

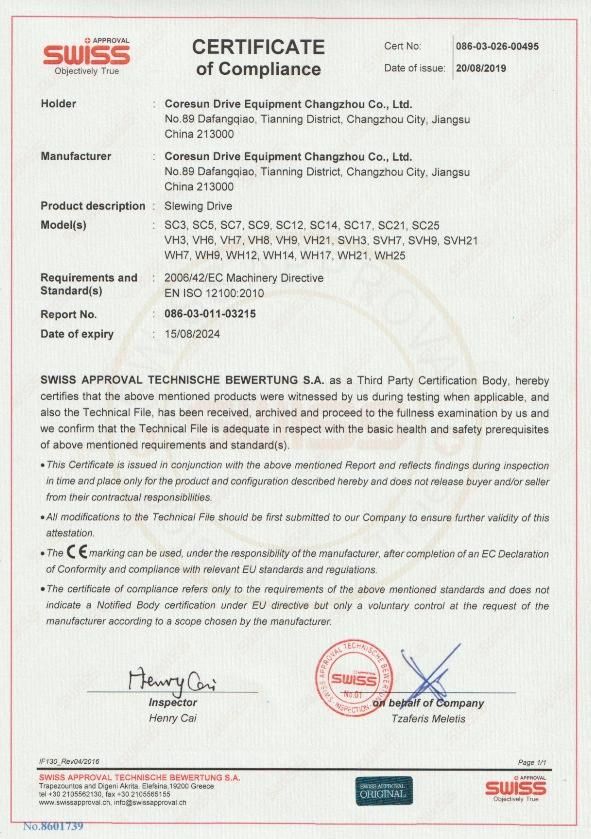

VH3 slewing drive with 24VDC motor is certificated by CE:
