• Model NO.：SC9-61-RC-24H30100-RV. A
• Corrosion Protection：C4
• Delivery Time：7 Days
• Weight：54kg
• Gear Ratio：61:1
• Transport Package：Wooden Case
• Specification：SC9-61-RC-24H30100-RV. A
• Trademark：Coresun Drive
• Origin：Changzhou, China
• HS Code：8483409000
• Production Capacity：5000PCS,Month

Model

SC9

IP

IP65

Brand

Coresun Drive

Available Load Weight

500-800kg

IP Class

IP65

Output Torque

854N.m

Tilting Moment Torque

33.9KN.m

Holding Torque

38.7KN.m

Mounting Bolts

M16

24VDC

Gear Ratio

61:1

Efficiency

40%

Coresun Drive Equipment Changzhou Co., Ltd. Slewing drives function with standard worm technology, in which the worm on the horizontal shaft acts as the driver for the gear. The rotation of the horizontal screw turns a gear about an axis perpendicular to the screw axis. This combination reduces the speed of the driven member and also multiplies its torque; increasing it proportionally as the speed decreases. The speed ratio of shafts depends upon the relation of the number of threads on the worm to the number of teeth in the worm wheel or gear.

Solar heliostat tracking system is a mechanical and electronic control unit system which optimizes the use of sunlight to improve photoelectric conversion efficiency in the process of photothermal and photovoltaic power generation. It mainly includes photovoltaic applications and photothermal applications.

1. Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2015 and GB/T19001-2008.

2. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements.

3. With abundant raw materials and high production efficiency, the company can supply products to customers as quickly as possible and shorten the time for customers to wait for products.

4. Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. The company has complete testing equipment and advanced testing method.

5. Strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.



Our Services & Strength

1.Raw material from reliable suppliers;
2.Production process is in strict accordance with ISO9001 Quality Management System .
3.Strict in-process quality control and 100% finished product inspection before delivery;
4.Third party product inspections are acceptable upon customer request.
5.Adoption of standardized product design process and APQP, PPAP, FEMA for application analysis.

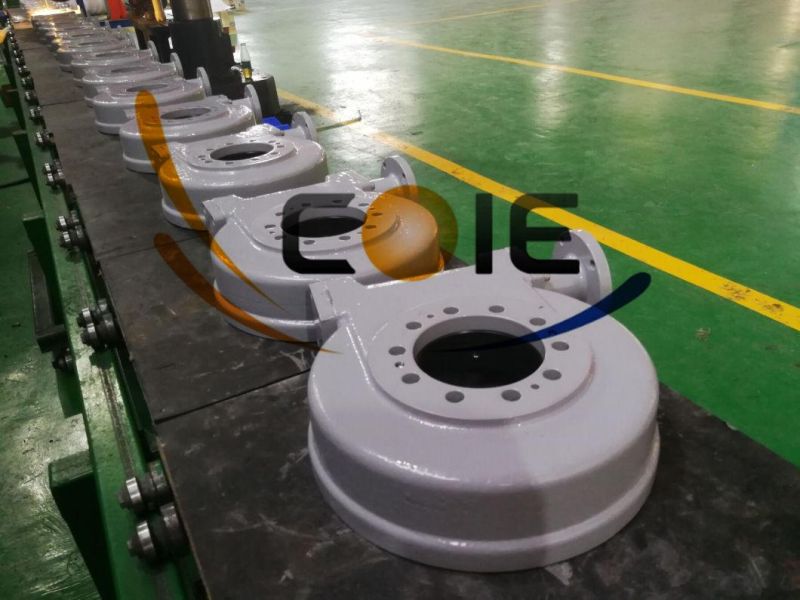

Coresun Drive Slewing Drive Motor Production Photo and Application

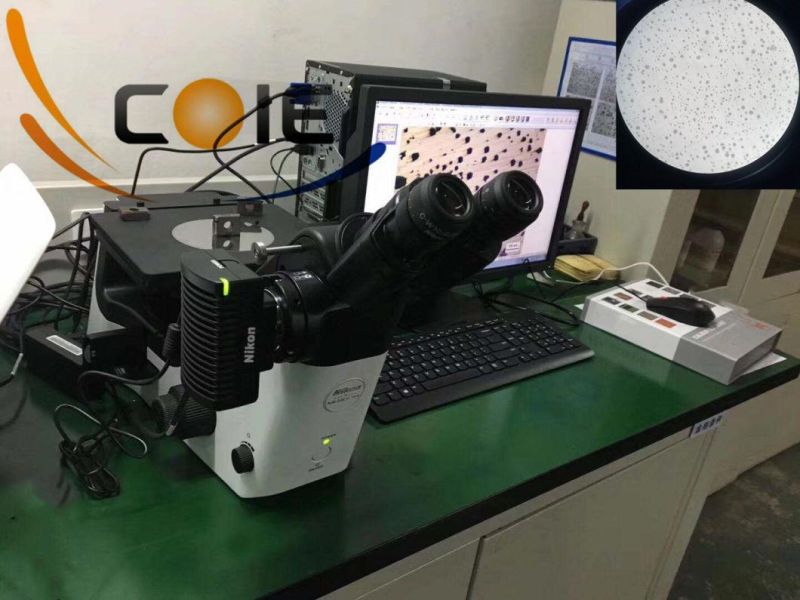

Coresun Drive processes the metallography detection to check the material and organization structure of worm shaft,slewing gear and casting housing.

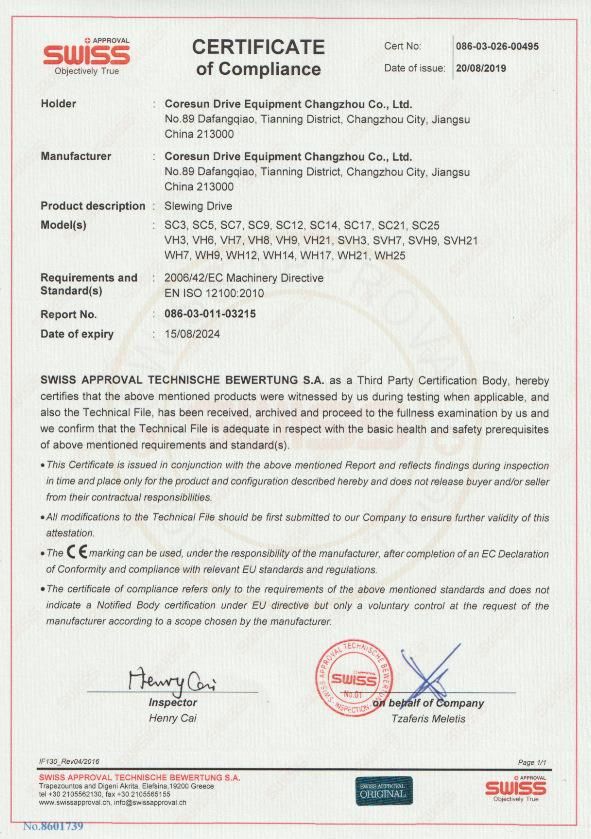

Coresun Drive slewing drive gear motor with 24VDC motor is certificated by CE

It is sincerely looking forward to cooperating with you for and providing you the best quality product & service with all of our heart!
