PV Solar Panel Solar Mounting Slewing Drive Gear Motor

Coresun Drive Equipment Changzhou Co., Ltd.
  • Application：Motor
  • Type：Gear Reducer
  • Motor：24VDC
  • Holding Torque：38.7kn.M
  • Tilting Moment Torque：33.9kn.M
  • Output Torque：2440kn.M

Base Info

  • Model NO.：SC9-61-RC-24H30100
  • Output Speed：0.048rpm
  • Inner Mounting Size：175mm
  • Outer Mounting Size：270mm
  • Precision：0.1 Degree
  • Mounting Hole：6xm10
  • Corrosion Protection：C3
  • Transport Package：Wooden Case with Vci Package
  • Specification：SC9-61B-RC
  • Trademark：Coresun Drive
  • Origin：Changzhou, China
  • HS Code：8483409000
  • Production Capacity：3000PCS,Month

Description

Model

SC9

Place of Origin

Changzhou,China

Brand

Coresun Drive

Type

Single Axis

IP Class

IP65

Output Torque

716N.m

Tilting Moment Torque

33.9KN.m

Holding Torque

38.7KN.m

Mounting Bolts

M16

Color

Grey or Black

Gear Ratio

61:1

Efficiency

40%

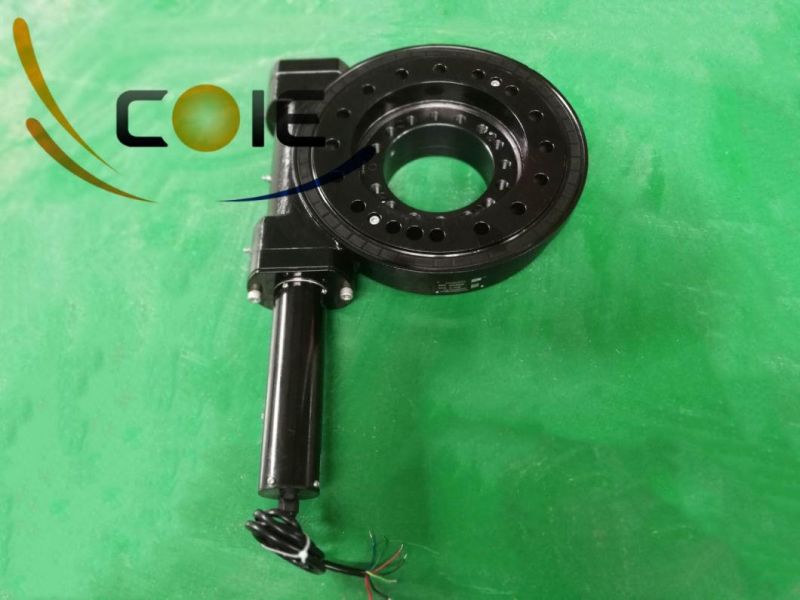

PV Solar Panel Solar Mounting Slewing Drive Gear Motor

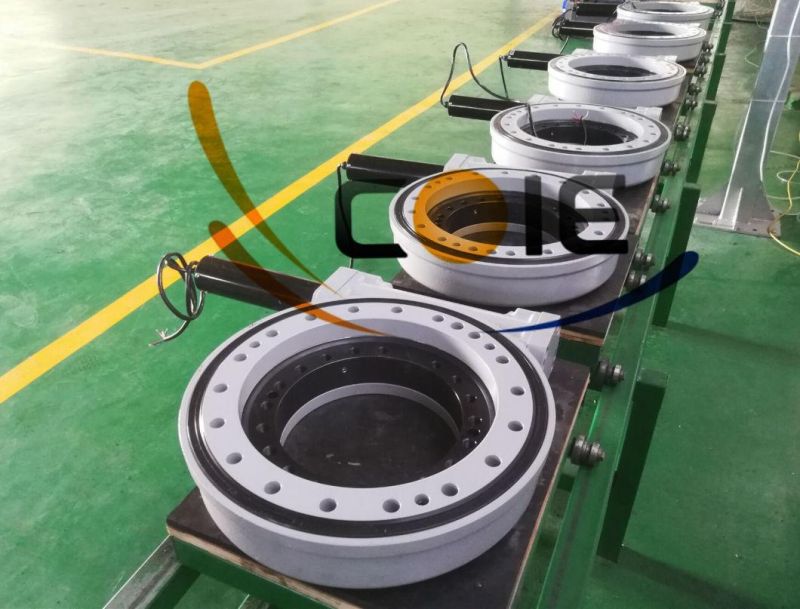

SC9 high quality hourglass slewing drive slewing gear motor production photo
PV Solar Panel Solar Mounting Slewing Drive Gear Motor
PV Solar Panel Solar Mounting Slewing Drive Gear Motor

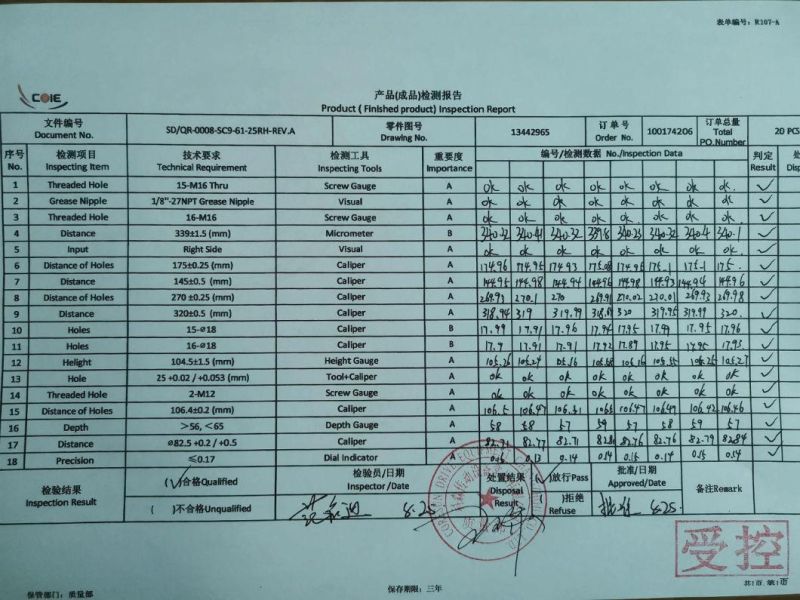

Coresun Drive makes 100% finished product inspection
PV Solar Panel Solar Mounting Slewing Drive Gear Motor

PV Solar Panel Solar Mounting Slewing Drive Gear Motor

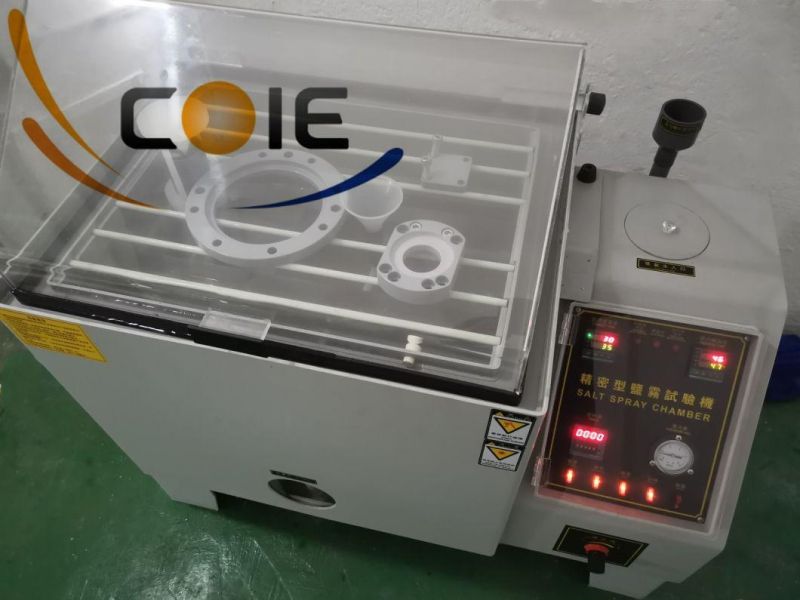

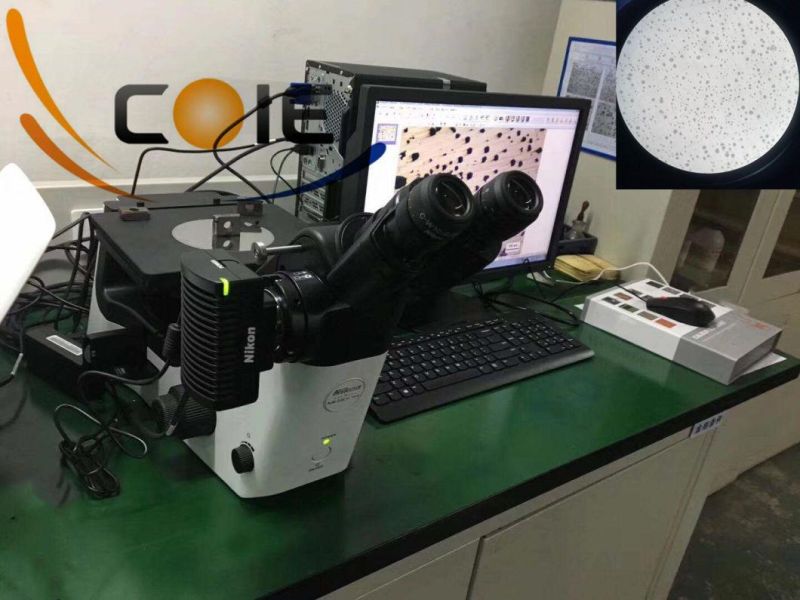

Coresun Drive processes the Slewing Drive Motor metallographic testing to ensure the quality of raw material and makes the salt &spray testing to make sure the anti-corrosionperformance.

PV Solar Panel Solar Mounting Slewing Drive Gear Motor
PV Solar Panel Solar Mounting Slewing Drive Gear Motor
