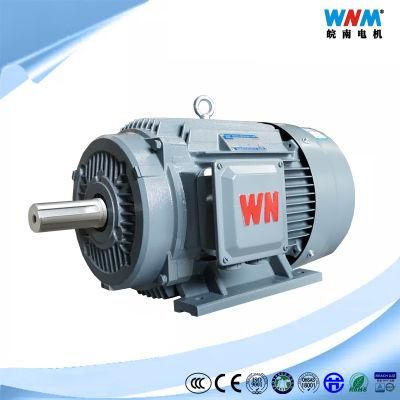

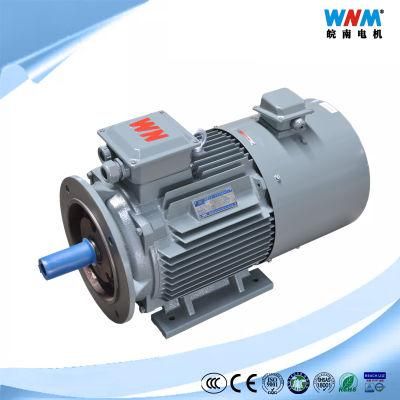

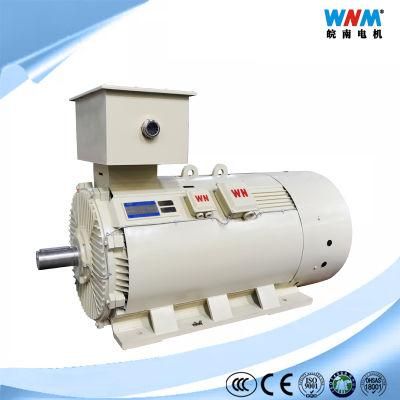

Motor Type Ye3-280m2-4 H 115kw/270kw S1/S615% Application Marine with Grease Nipple and Color Munsell 7.5bg7/2
Anhui Wannan Electric Machine Co., Ltd.- Standard or Nonstandard：Standard
- Feature：Electric Motor
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Food Machinery, Marine, Mining Equipment, Agricultural Machinery, Driving Equipment
- Surface Treatment：Painting
- Material：Cast Iron
- Power：0.37~375kw
Base Info
- Model NO.：YE3-280M2-4H
- Frame：H80, 90, 100, 112, 132...355
- Speed：3000rpm, 1500rpm, 1000rpm, 750rpm
- Housing：Aluminum or Cast Iron
- Duty：S1
- Ins. Class：F,H
- Temp Rise：B
- Mounting：B3, V1, B14, B34, B5, B35
- Voltage：220V~690V
- Freq.：50Hz, 60Hz
- Cooling Method：IC411, IC416, IC410
- Efficiency：Ie2
- Protection：IP55, IP56, IP65
- Bearing：C&U, SKF, FAG, NSK
- Terminal Box：Top, Side
- Transport Package：Seaworthy Package
- Specification：281*139*180mm
- Trademark：WNM
- Origin：Jingxian, Anhui, China
- HS Code：8501520000
- Production Capacity：50000 PCS,Month
Description
Synchronous speed 3000 r/minYE3-63M1-2 0.18 0.53 2720 63.9 0.80 0.63 2.2 5.5 2.2 61 YE3-63M2-2 0.25 0.70 2720 67.1 0.81 0.88 2.2 5.5 2.2 61 YE3-71M1-2 0.37 1.0 2740 69.0 0.81 1.29 2.2 6.1 2.2 62 YE3-71M2-2 0.55 1.4 2740 72.3 0.82 1.92 2.2 6.1 2.2 62 YE3-80M1-2 0.75 1.7 2870 80.7 0.82 2.50 2.2 7.0 2.3 62 YE3-80M2-2 1.1 2.4 2875 82.7 0.83 3.65 2.2 7.3 2.3 62 YE3-90S-2 1.5 3.2 2880 84.2 0.84 4.97 2.2 7.6 2.3 67 YE3-90L-2 2.2 4.6 2880 85.9 0.85 7.30 2.2 7.6 2.3 67 YE3-100L-2 3 6.0 2880 87.1 0.87 9.95 2.2 7.8 2.3 74 YE3-112M-2 4 7.8 2915 88.1 0.88 13.1 2.2 8.3 2.3 77 YE3-132S1-2 5.5 10.6 2935 89.2 0.88 17.9 2.0 8.3 2.3 79 YE3-132S2-2 7.5 14.4 2930 90.1 0.88 24.4 2.0 7.9 2.3 79 YE3-160M1-2 11 20.6 2950 91.2 0.89 35.6 2.0 8.1 2.3 81 YE3-160M2-2 15 27.9 2945 91.9 0.89 48.6 2.0 8.1 2.3 81 YE3-160L-2 18.5 34.2 2945 92.4 0.89 60.0 2.0 8.2 2.3 81 YE3-180M-2 22 40.5 2950 92.7 0.89 71.2 2.0 8.2 2.3 83 YE3-200L1-2 30 54.9 2965 93.3 0.89 96.6 2.0 7.6 2.3 84 YE3-200L2-2 37 67.4 2965 93.7 0.89 119 2.0 7.6 2.3 84 YE3-225M-2 45 80.8 2965 94.0 0.90 145 2.0 7.7 2.3 86 YE3-250M-2 55 98.5 2975 94.3 0.90 177 2.0 7.7 2.3 89 YE3-280S-2 75 134 2975 94.7 0.90 241 1.8 7.1 2.3 91 YE3-280M-2 90 160 2975 95.0 0.90 289 1.8 7.1 2.3 91 YE3-280M1-2 110 195 2975 95.2 0.90 353 1.8 7.1 2.3 91

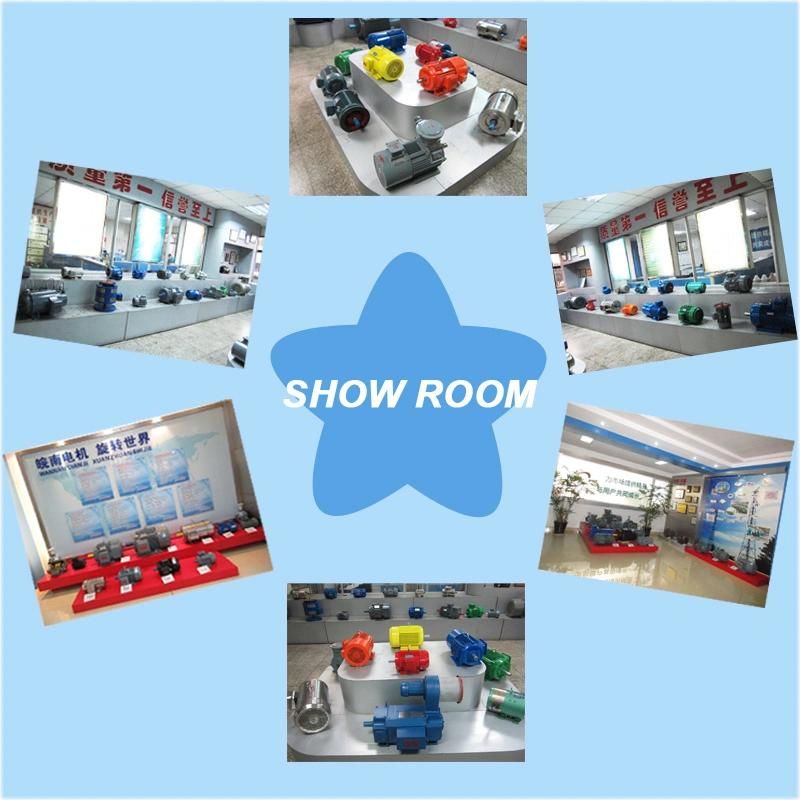

Show Room
Certificates
Premium Service

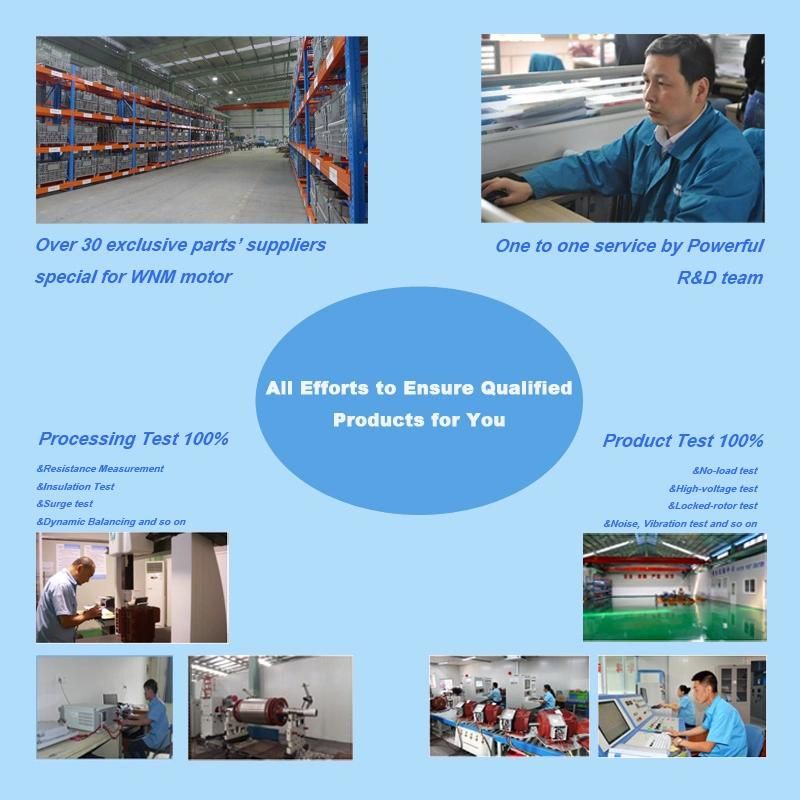

Quality Control

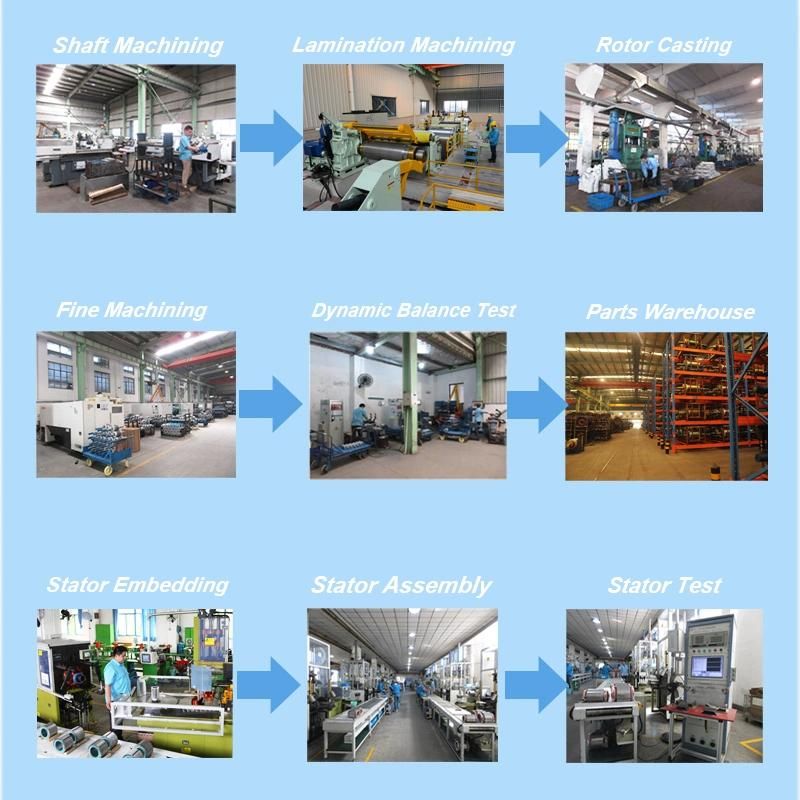

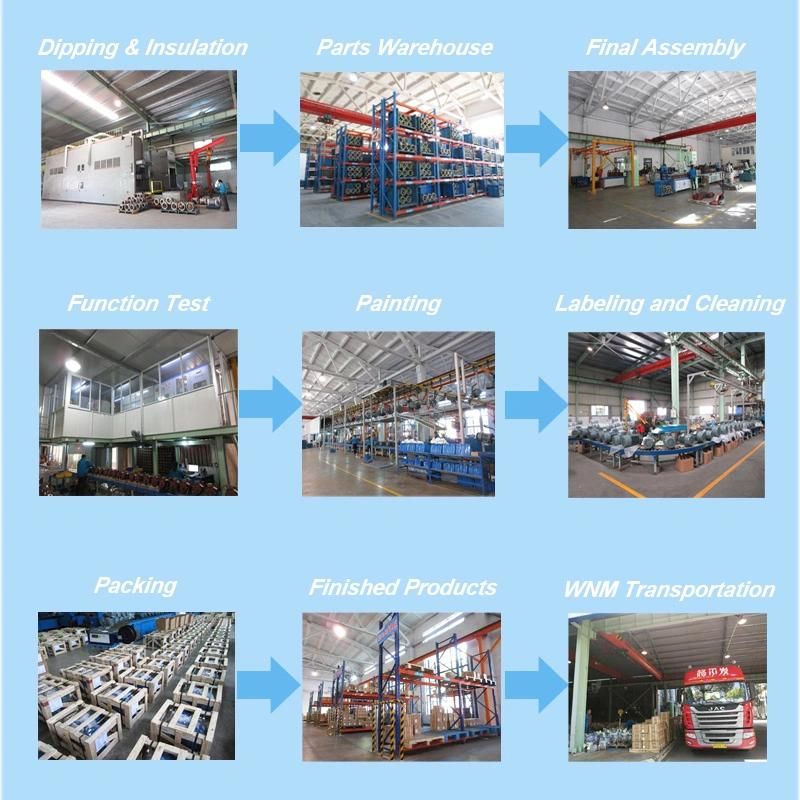

Wannan Motor Production Workshop and Flow Charts
Certificates and more COMPANY information please go to "ABOUT US"
---------------------------------------------------------------------------------------------------------------------------
