Low Vibration and Low Noise Motor Electrical Type Induction Asynchronous Enclosure IP55 Insulation Class F Frame Size 132m Number of Pole 4
Anhui Wannan Electric Machine Co., Ltd.- Standard or Nonstandard：Standard
- Feature：Electric Motor
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Food Machinery, Marine, Mining Equipment, Agricultural Machinery, Driving Equipment
- Surface Treatment：Painting
- Material：Cast Iron
- Power：0.37~375kw
Base Info
- Model NO.：YZC132M-4
- Frame：H80, 90, 100, 112, 132...355
- Speed：3000rpm, 1500rpm, 1000rpm, 750rpm
- Housing：Aluminum or Cast Iron
- Duty：S1
- Ins. Class：F,H
- Temp Rise：B
- Mounting：B3, V1, B14, B34, B5, B35
- Voltage：220V~690V
- Freq.：50Hz, 60Hz
- Cooling Method：IC411, IC416, IC410
- Efficiency：Ie2
- Protection：IP55, IP56, IP65
- Bearing：C&U, SKF, FAG, NSK
- Terminal Box：Top, Side
- Transport Package：Seaworthy Package
- Specification：281*139*180mm
- Trademark：WNM
- Origin：Jingxian, Anhui, China
- HS Code：8501520000
- Production Capacity：50000 PCS,Month
Description
Synchronous speed 3000 r/minYZC80M1-2 0.75 1.8 2855 77.4 0.82 2.51 2.2 7.0 2.3 59 0.7 YZC80M2-2 1.1 2.5 2870 79.6 0.83 3.66 2.2 7.3 2.3 59 0.7 YZC90S-2 1.5 3.3 2865 81.3 0.84 5.00 2.2 7.6 2.3 64 0.7 YZC90L-2 2.2 4.7 2870 83.2 0.85 7.32 2.2 7.6 2.3 64 0.7 YZC100L-2 3 6.2 2875 84.6 0.87 9.97 2.2 7.8 2.3 71 0.7 YZC112M-2 4 8.0 2910 85.8 0.88 13.1 2.2 8.3 2.3 74 0.7 YZC132S1-2 5.5 10.9 2935 87.0 0.88 17.9 2.0 8.3 2.3 76 0.7 YZC132S2-2 7.5 14.5 2930 88.1 0.89 24.4 2.0 7.9 2.3 76 0.7 YZC160M1-2 11 21.0 2950 89.4 0.89 35.6 2.0 8.1 2.3 78 1.1 YZC160M2-2 15 28.4 2945 90.3 0.89 48.6 2.0 8.1 2.3 78 1.1 YZC160L-2 18.5 34.7 2945 90.9 0.89 60.0 2.0 8.2 2.3 78 1.1 YZC180M-2 22 41.1 2950 91.3 0.89 71.2 2.0 8.2 2.3 80 1.1 YZC200L1-2 30 55.7 2960 92.0 0.89 96.8 2.0 7.6 2.3 81 1.1 YZC200L2-2 37 68.3 2960 92.5 0.89 119 2.0 7.6 2.3 81 1.1 YZC225M-2 45 82.7 2965 92.9 0.89 145 2.0 7.7 2.3 83 1.1 YZC250M-2 55 101 2970 93.2 0.89 177 2.0 7.1 2.3 86 1.1 YZC280S-2 75 134 2975 94.7 0.90 241 1.8 7.1 2.3 89 1.1 YZC280M-2 90 160 2975 95.0 0.90 289 1.8 7.1 2.3 89 1.1

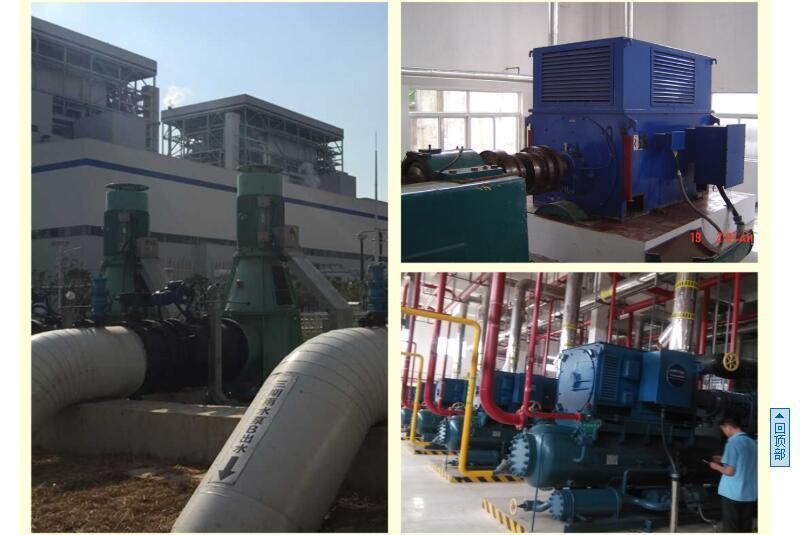

Show Room
Certificates
Premium Service
Quality Control

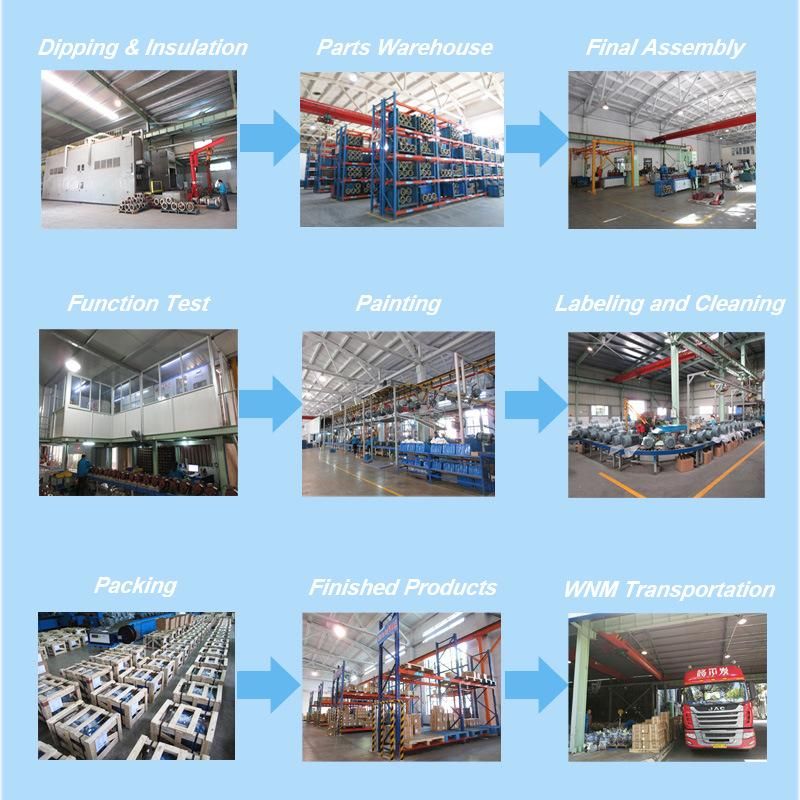

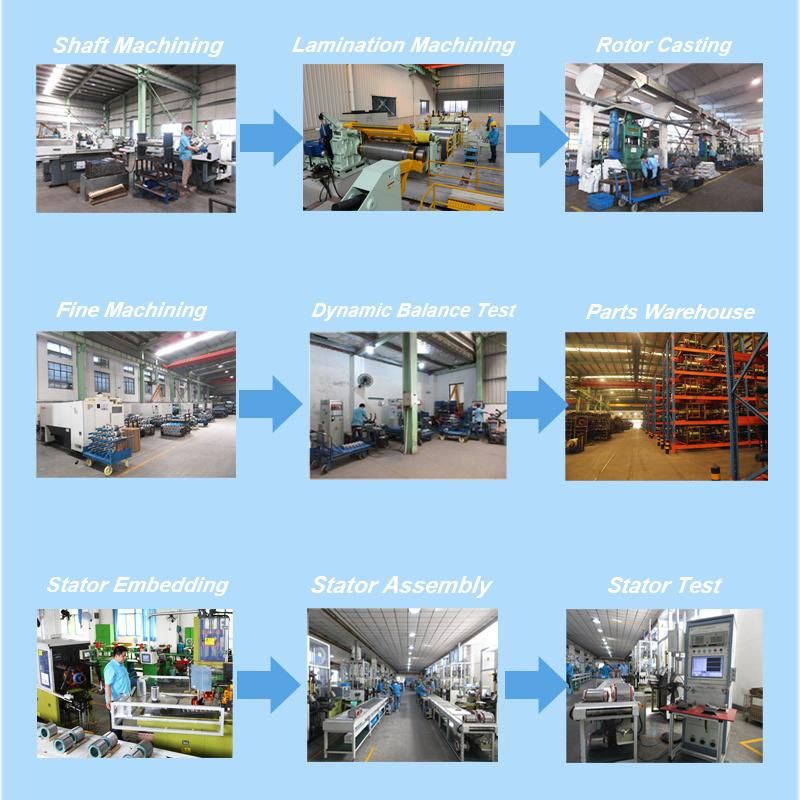

Wannan Motor Production Workshop and Flow Charts
Certificates and more COMPANY information please go to "ABOUT US"
---------------------------------------------------------------------------------------------------------------------------
Welcome to contact us directly...
