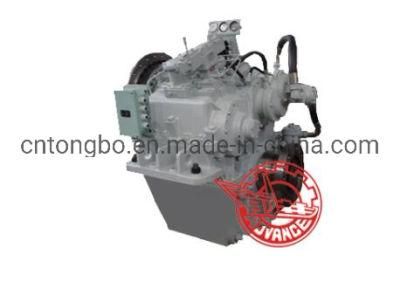

Advance Marine Speed Reduction Gearbox Hcd138

Fuan Tongbo Electrical Machinery Co., Ltd.

Application：Marine
Function：Clutch
Layout：Cycloidal
Hardness：Hardened Tooth Surface
Installation：Vertical Type
Step：Single-Step

Base Info

Model NO.：HCD138
Type：Planetary Gear Box
Certificate：CCS
Warranty：1 Year
Delivery Time：30 Days
Colour：Blue, Grey,Orange
Transport Package：1PCS Into One Plywood Case
Specification：HCD138
Trademark：Advance
Origin：Hangzhou
HS Code：8483409000
Production Capacity：200PCS Per Month

Description

Input speed1000-2500r/minReduction ratio5.05,5.63Trans. capacity0.110kw/r/min6.060.099kw/r/min6.470.093kw/r/minControl wayPush-and-pull flexible shaft, electrically, pneumaticallyRated thrust40KNCenter distance296mmL×W×H494×800×870mmNet weight415kgFlywheel6135Ca,SAE14,11.5Bell housing6135Ca,SAE1,2
Application
Marine Gearbox HCD138 is suitable for medium and small fishing, transport, tug, transport and passenger boats.
