Hangzhou Advance Marine Gearbox 40A with Optional Bell Housing

Fuan Tongbo Electrical Machinery Co., Ltd.

Application：Marine
Function：Clutch
Layout：Cycloidal
Hardness：Hardened Tooth Surface
Installation：Vertical Type
Step：Single-Step

Base Info

Model NO.：40A
Type：Planetary Gear Box
Certificate：CCS
Warranty：1 Year
Delivery Time：30 Days
Colour：Blue, Grey,Orange
Transport Package：1PCS Into One Plywood Case
Specification：40A
Trademark：Advance
Origin：Hangzhou
HS Code：8483409000
Production Capacity：200PCS Per Month

Description

Input speed750-2000r/minReduction ratio2.07,2.96Trans. capacity0.030kw/r/min3.440.025kw/r/minControl wayPush-and-pull flexible shaft, electricallyRated thrust8.8KNCenter distance142mmL×W×H490×670×620mmNet weight225kgFlywheel4110C,SAE14,11.5Bell housing4110C,SAE1,2,3

Application

Marine Gearbox 40A is suitable for medium and small fishing, transport, traffic and passenger boats.

Category

Other Power Transmission Parts

Power Transmission Parts

Transmission Belt

Transmission Chain

Transmission Pulley

Recommended

Advance Marine Speed Reduction Gearbox 26 for Small Fishing Boat
Input speed1000-2500r/minReduction ratio2.5,3Trans. capacity0.0199kw/r/min3.50.0190kw/r/min40.0177kw/r/minControl wayManuallyRated thrust5KNCenter distance135mmL×W×H473.5×365×830mmNet weight92kgFlywheel4105CBell housing4105CApplicationMarine Gearbox 26 is suitable for small f
Advance Marine transmission Gearbox 16A for 1000-2000rpm Marine Engine
Input speed1000-2000r/minReduction ratio2.07,2.48,2.95,3.35,3.83Trans. capacity0.012kw/r/minControl wayManuallyRated thrust3.5KNCenter distance135mmL×W×H422×325×563mmNet weight84kgFlywheel2105C 395,SAE11.5,10Bell housing2105C 395,SAE3,4ApplicationMarine Gearbox 16A is suitabl
Advance Marine Gearbox 120b with CCS Certificate
Input speed750-1800r/minReduction ratio2.03,2.81Trans. capacity0.088kw/r/min3.730.044kw/r/minControl wayPush-and-pull flexible shaft, electricallyRated thrust25KNCenter distance190mmL×W×H605×744×770mmNet weight400kgFlywheel6135Ca,4120,SAE14Bell housing6135Ca,4120,SAE1Applicat
Motorcycle Parts Rear Sprocket
MaterialsAvailable1.StainlessSteel:SS201,SS303,SS304,SS316,SS416,SS4202.Steel:C45(K1045),C46(K1046),C203.Brass:C36000(C26800),C37700(HPb59),C38500(HPb58),C27200(CuZn37),C28000(CuZn40)4.Bronze:C51000,C52100,C54400,etc5.Iron:1213,12L14,12156.Aluminum:Al6061,Al60637.OEMaccordingtoyourrequestSurface Tre
Stainless Steel Conveyor Sprockets
MaterialsAvailable1.StainlessSteel:SS201,SS303,SS304,SS316,SS416,SS4202.Steel:C45(K1045),C46(K1046),C203.Brass:C36000(C26800),C37700(HPb59),C38500(HPb58),C27200(CuZn37),C28000(CuZn40)4.Bronze:C51000,C52100,C54400,etc5.Iron:1213,12L14,12156.Aluminum:Al6061,Al60637.OEMaccordingtoyourrequestSurface Tre
Advance Marine Gearbox 06 for Small Fishing Boat
Input speed1000-2100r/minReduction ratio2.52,3.05,3.50Trans. capacity0.004kw/r/minControl wayManuallyRated thrust1.8KNCenter distance124mmL×W×H350×316×482mmNet weight58kgFlywheel195CBell housing195CApplicationMarine Gearbox 06 is suitable for small fishing, transport and resc
Advance Marine Transmission Gearbox 135 for Weichai Marine Engine
Input speed750-2000r/minReduction ratio2.03,2.59,3.04,3.62,4.11Trans. capacity0.10kw/r/min4.650.093kw/r/min5.060.088kw/r/min5.470.077kw/r/min5.810.070kw/r/minControl wayPush-and-pull flexible shaft, electricallyRated thrust29.4KNCenter distance225mmL×W×H578×744×830mmNet weigh

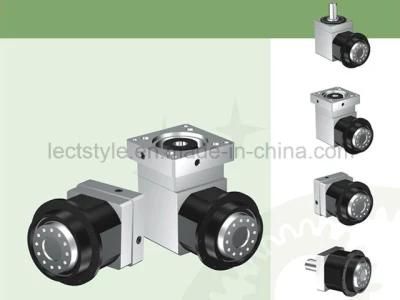

PP/Wpp Series Gear Box
