• Type：Planetary Gear Reducer
• Input Motor Poles：2p,4p,6p,8p
• Output Torque：1.5-120nm
• Output Speed：180-1000rpm
• Frame：63-132
• Mounting：B3 B5
• Transport Package：Carton & Wooden Case
• Specification：MB02-MB75
• Trademark：Greensky
• Origin：China
• HS Code：8483409000
• Production Capacity：100000PCS Per Month

Basic Info.

Type Planetary Gear Reducer Input Motor Poles 2p,4p,6p,8p Output Torque 1.5-120nm Output Speed 180-1000rpm Frame 63-132 Mounting B3 B5 Transport Package Carton & Wooden Case Specification MB02-MB75 Trademark Greensky Origin China HS Code 8483409000 Production Capacity 100000PCS Per Month

Product Description

MB UDL Variable Gear box Reduction Stepless Motor Variator Speed Reducer

Product features:

1. High precision: 0.5-1
2. Wide speed range, the output speed ratio can be in 1/1.4 between 1/7
3. High intensity and long service life
4. Easy speed regulation
5. Continuous work, smooth operation, stable performance and low noise
6. Whole sealing and low requirement for environment
7. Compact organization and small size.
8. It is made of high quality aluminum alloy with beautiful appearance, light weight and no rusting.
9. Good adaptability. UDL series continuously variable transmission can combine with variable reducer units to realize low speed continuous variable speed.

Application areas: It can be widely used in food, packaging, chemical, pharmaceutical, plastic, papermaking, machine tools, transportation, and various kinds of automatic production lines and transmission lines which need to adjust speed.

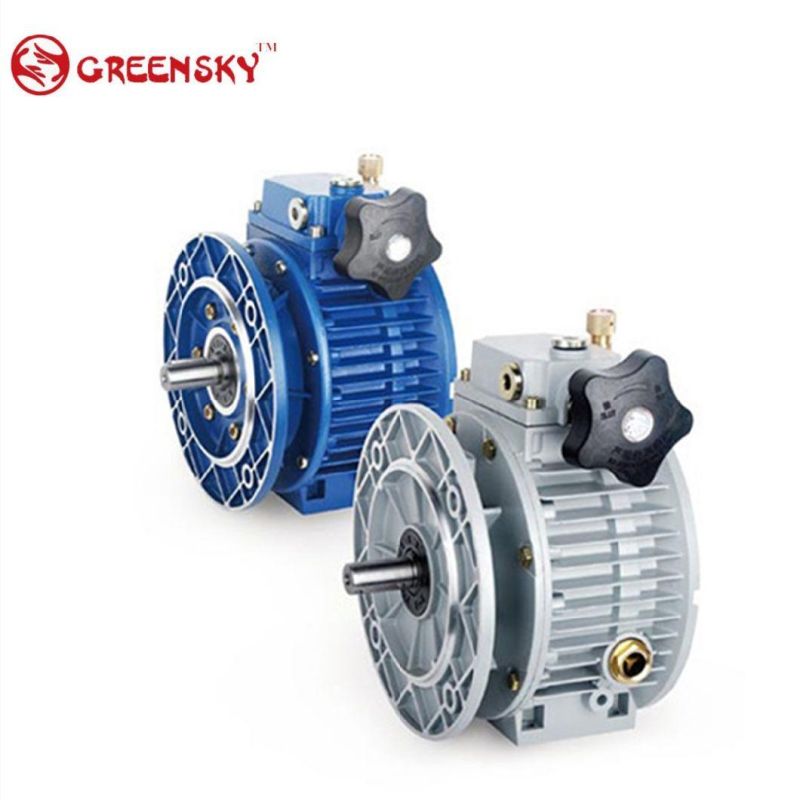

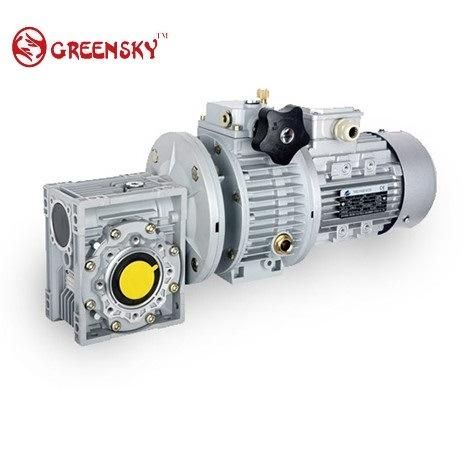

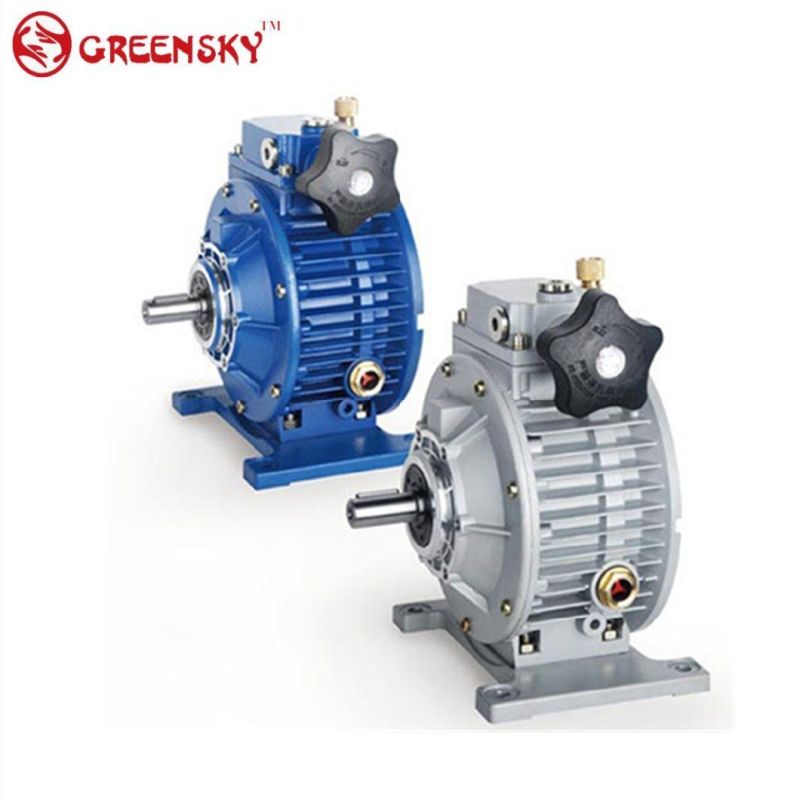

Product photos:




Specification

Models	Power	Ratio	O. Speed	O.Torque	O. Shaft Dia.	O. Flange Dia.
UDL002	0.18KW	1.6~8.2	800~170rpm	1.5~3N.m	Φ11	Φ140
UDL005	0.25KW	1.4~7	1000~200rpm	2.2~6N.m	Φ14	Φ160
UDL005	0.37KW	1.4~7	1000~200rpm	3~6N.m	Φ14	Φ160
UDL010	0.55KW	1.4~7	1000~200rpm	4~8N.m	Φ19	Φ200
UDL010	0.75KW	1.4~7	1000~200rpm	6~12N.m	Φ19	Φ200
UD020	1.1KW	1.4~7	1000~200rpm	9~18N.m	Φ24	Φ200
UD020	1.5KW	1.4~7	1000~200rpm	12~24N.m	Φ24	Φ200
UD030	2.2KW	1.4~7	1000~200rpm	18~36N.m	Φ28	Φ250
UD030	3.0KW	1.4~7	1000~200rpm	24~48N.m	Φ28	Φ250
UD030	4.0KW	1.4~7	1000~200rpm	32~64N.m	Φ28	Φ250
UD050	5.5KW	1.4~7	1000~200rpm	45~90N.m	Φ38	Φ300
UD050	7.5KW	1.4~7	1000~200rpm	59~118N.m	Φ38	Φ300

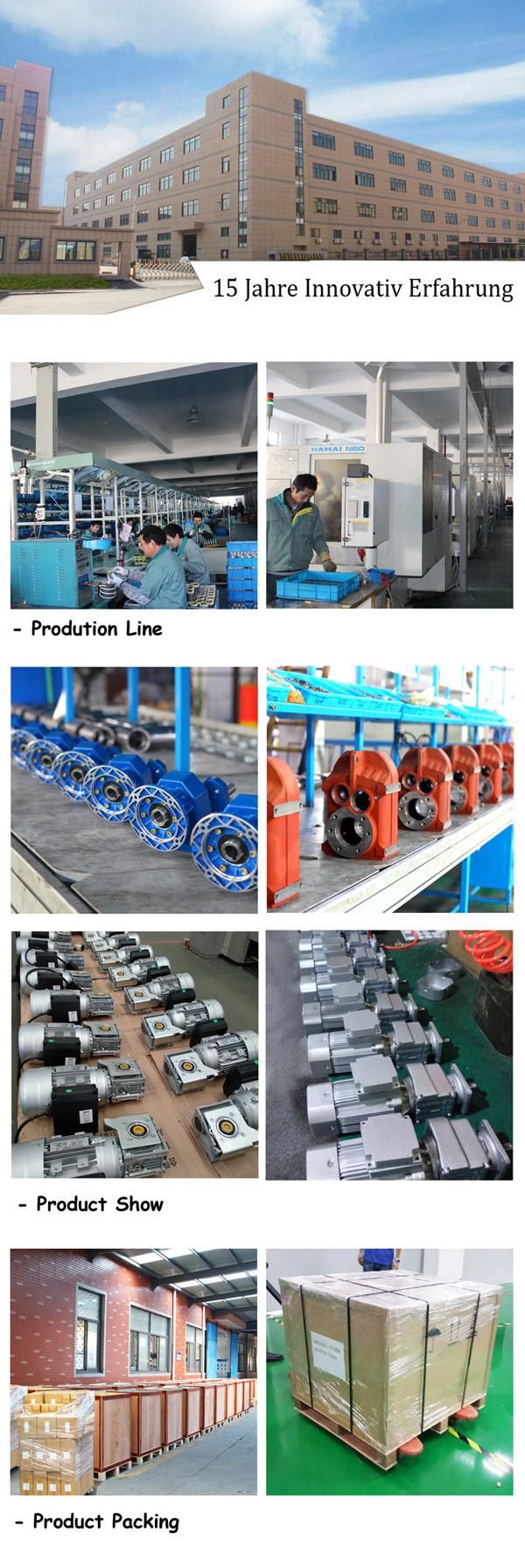

Company Overview


Certificates



About Greensky Mechanical

HISTORY: Greensky is a mechanical brand of Greensky Power Co., Ltd. With over 10 years'
mechanical manufacturing experiences, Greensky Power always strictly stands on the
principle of Best Customer Satisfaction.

QUALITY: Material Inspection, Production Control, Finished Goods Test, Pre-dellivery Inspection

MISSION: "Once and forever" is our goal to serve customers in the world. Once we do
business with customer, we will do business forever.

MARKET: 30 different countries, mainly Germany, Austria, Japan, USA and Middle-East.

DELIVERY: 100% on-time delivery Guaranteed.

SERVICES: Fast response in English, German, Japanese and Chinese languages.

OEM: Customized orders are welcome at Greensky Power.



Exhibitions




FAQ

1 Q: What's your MOQ for variator?
   A: 1unit is ok for testing purpose.

2 Q: What about your warranty for your variator?
   A: One year.

3 Q: Do you provide OEM service with customer-logo?
   A: Yes, we could do OEM orders, but we mainly focus on our own brand.

4 Q: How about your payment terms ?
   A: TT, western union and paypal. 100% payment in advanced for orders less $5,000. 30% deposit and balance before delivery for orders over $5,000.

5 Q: How about your packing ?
   A: Carton, Plywood case. If you need more, we can pack all goods with pallet

6 Q: What information should be given, if I buy reducer from you ?
   A: Rated power, gearbox ratio, input speed, mounting position. More details, better!

7 Q: How do you deliver the speed variator?
   A: We will compare and choose the most suitable ways of delivery by sea, air or express courier.


We hope you will enjoy cooperating with us.
