T Type Industrial Rubber Timing Belt Synchronous Inched
NINGBO HIPOWER TRANSMISSION CO., LTD.- Standard or Nonstandard：Standard
- Application：Electric Cars, Motorcycle, Car
- Feature：Wear-Resistant, High Temperature-Resistance
- Tensile Strength：Strong
- Material：Rubber
- Type：Toothed Belt
Base Info
- Model NO.：MXL, XL, L, H, XH, XXH
- Transport Package：Plastic Bag, Carton
- Specification：100 MXL 025
- Trademark：GPBELT
- Origin：China
- HS Code：4010310000
- Production Capacity：50000PCS,Day
Description
Basic Info.
Model NO. MXL, XL, L, H, XH, XXH Transport Package Plastic Bag/ Carton Specification 100 MXL 025 Trademark GPBELT Origin China HS Code 4010310000 Production Capacity 50000PCS/DayProduct Description
T TOOTHED INDUSTRIAL TIMING BELT 9SYNCHRONOUS BELT)Feature
Our Timing Belt uses Japan-imported high quality synthetic neoprene, high quality glass fiber cord and tooth surface with nylon 66 high stretch do the protection. The timing belt adapts teeth or teeth mesh to transfer power. It needs no lubrication, no slip, no pollution, less noise. The transmission efficiency is over 98%, and the speed ratio can reach 1:10. Linear velocity can be up to 50m/s. Its dynamic bending wind gives a good fatigue performance, and good aging heat-resistance abrasion performance.

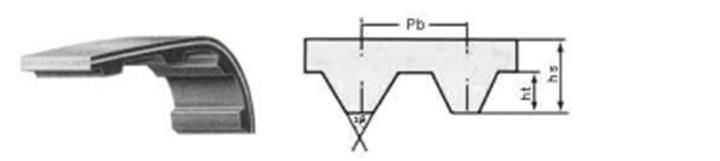

Modes and Parameters
| Type | Pitch (pb) mm | Tooth height (ht) mm | Belt thick (hs) mm | Angle |
| MXL | 2.032 | 0.51 | 1.14 | 40º |
| XXL | 3.175 | 0.76 | 1.52 | 40º |
| XL | 5.080 | 1.27 | 2.3 | 40º |
| L | 9.525 | 1.91 | 3.6 | 40º |
| H | 12.7 | 2.29 | 4.3 | 40º |
| XH | 22.225 | 6.35 | 11.2 | 40º |
| XXH | 31.7 | 9.53 | 15.7 | 40º |
| T2.5 | 2.5 | 0.7 | 1.3 | 40º |
| T5 | 5.0 | 1.2 | 2.2 | 40º |
| T10 | 10 | 2.5 | 4.5 | 40º |
| T20 | 20 | 5.0 | 8.0 | 40º |
| AT5 | 5.0 | 1.2 | 2.7 | 40º |
| AT10 | 10 | 2.5 | 5.0 | 40º |
| AT20 | 20 | 5.0 | 8.0 | 40º |
FAQ
Q1. Can I have a sample order?
Yes, any sample order is welcome to know the quality of our products.
Q2. What about the lead time of the sample or the final order?
2-5 days for normal sample.
20-30 days for a formal order.
Q3. How much is the minimum quantity for each item in one order?
One mould quantity is ok. Usually around 100pcs for small item, several dozens for big item.
Q4. Is it possible to print our logo or brand on the belt?
Yes, we can print your logo or design on the belt after receipt of your formal authorization letter of the logo or your brand.
Q5. Do you offer the guarantee for your product?
Yes, usually we offer one year warranty for all of our products.
