Xpa Xpz Xpb Raw Edged Cogged Rubber V Belt
NINGBO HIPOWER TRANSMISSION CO., LTD.- Standard or Nonstandard：Standard
- Application：Textile Machinery, Garment Machinery, Packaging Machinery, Electric Cars, Motorcycle, Food Machinery, Mining Equipment, Agricultural Machinery, Car
- Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Heat-Resistant, Wear-Resistant, High Temperature-Resistance
- Tensile Strength：Strong
- Material：Cr , EPDM, Polyester, Kevlar, Rubber
- Type：V Belt
Base Info
- Model NO.：XPA, XPB, 3VX, 5VX
- Packing Mean：Boxes, Plastic Bag
- Port：Ningbo , Shanghai
- Transportation：by Sea , by Air, by Courier
- Transport Package：Plastic Bag, Carton
- Specification：AX80, XPZ1550
- Trademark：GPBELT
- Origin：China
- HS Code：4010390000
- Production Capacity：50000PCS,Day
Description
Basic Info.
Model NO. XPA, XPB, 3VX, 5VX Packing Mean Boxes/ Plastic Bag Port Ningbo / Shanghai Transportation by Sea / by Air/ by Courier Transport Package Plastic Bag/ Carton Specification AX80, XPZ1550 Trademark GPBELT Origin China HS Code 4010390000 Production Capacity 50000PCS/DayProduct Description
INDUSTRIAL RAW EDGED RUBBER V BELTFeature
. Greater transmission power than classical v belt
. Large friction coefficient, small friction loss
. Absorb transmission vibration, low noise, long service
. Fatigue endurance reaches one hundred million times.
. Temperature range from -50ºC to 120ºC
. Oil, heat, Ozone, abrasive resistance, anti-statistics

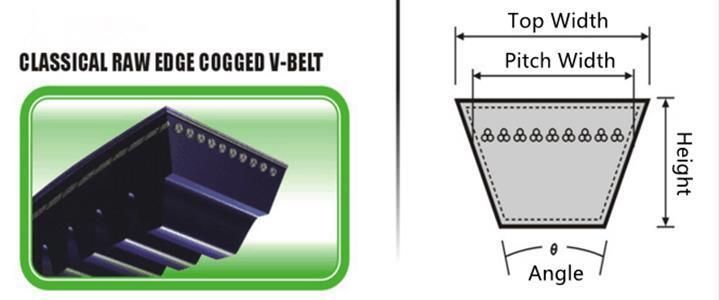

| Type | Top width | Pitch width | Height | Angel | Length conversion | Length Range inch | Length Range mm |
| .3VX | 9.5 | / | 8 | 40º | La=Li+50 | 20"-200" | 508-5080 |
| .5VX | 16 | / | 13.5 | La=Li+82 | 30"-200" | 762-5080 | |
| .XPZ | 10 | 8.5 | 8 | La=Li+50 | 20"-200" | 508-5080 | |
| .XPA | 13 | 11 | 10 | La=Li+63 | 20"-200" | 508-5080 | |
| .XPB | 16.3 | 14 | 14 | La=Li+82 | 30"-200" | 762-5080 | |
| .XPC | 22 | 19 | 18 | La=Li+113 | 30"-200" | 762-5080 |
Marking
Classical raw edge v belt show the inside length of the factory v belt. The length conversion table is available for conversion between various models.
Example of mark
.XPZ 1283La 1270Ld 3vx500 means that its type is XPZ, outer length is 1283mm, pitch length is 1270mm, and it is corresponding to 3vx500.
FAQ
Q1. Can I have a sample order?
Yes, any sample order is welcome to know the quality of our products.
Q2. What about the lead time of the sample or the final order?
2-5 days for normal sample.
20-30 days for a formal order.
Q3. How much is the minimum quantity for each item in one order?
One mould quantity is ok. Usually around 50pcs for small item, 10pcs for big item.
Q4. Is it possible to print our logo or brand on the belt?
Yes, we can print your logo or design on the belt after receipt of your formal authorization letter of the logo or your brand.
Q5. Do you offer the guarantee for your product?
Yes, usually we offer one year warranty for all of our products.
