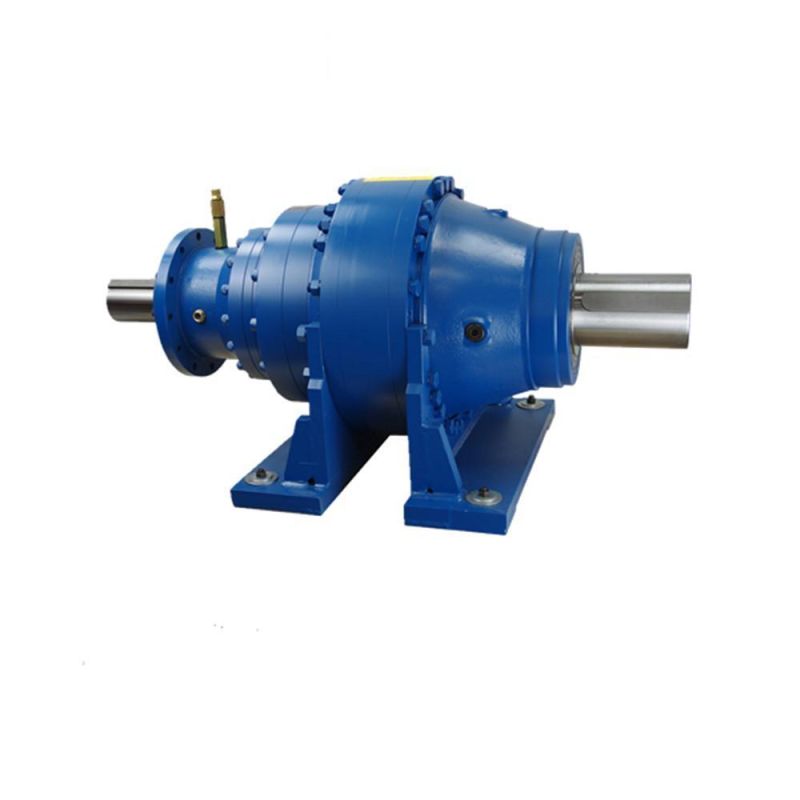

Transmission High Torque Low Speed N Series Planetary Gear Box Reducer
Shanghai SGR Heavy Industry Machinery Co., Ltd.- Application：Motor, Electric Cars, Machinery, Marine, Agricultural Machinery
- Function：Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
- Layout：Coaxial
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Step：Four-Step
Base Info
- Model NO.：MN,N
- Type：Planetary Gear Box
- Delivery Time：60days
- Warranty：One Year
- Color：Blue
- Package：Plywood Case
- Input：Flange, Solid Shaft
- Output：Male Splined Shaft
- Transport Package：Wooden Case
- Specification：According to actual production
- Trademark：SGR
- Origin：Shanghai, China
- HS Code：8483409000
- Production Capacity：400PCS,Month
Description
Basic Info.
Model NO. MN/N Type Planetary Gear Box Delivery Time 60days Warranty One Year Color Blue Package Plywood Case Input Flange/ Solid Shaft Output Male Splined Shaft Transport Package Wooden Case Specification According to actual production Trademark SGR Origin Shanghai, China HS Code 8483409000 Production Capacity 400PCS/MonthProduct Description
Transmission High Torque Low Speed N Series Planetary Gear Box ReducerTechnical data:
1. Ratio range: 3.15-9000
2. Input power: 0.25-55KW
3. Permit torque rang: ≤ 800000N. M
4. Output speed: 0.425-445 r/min
5. Structure mode: Possibility of flange, foot, or shaft mounting solutions
Characteristic:
1. Wide and comprehensive range of N series for industrial applications
2. Low speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low speed shaft bearing
