• Type：Planetary Gear Box
• Delivery：60days
• Warranty：One Year
• Input：Flange,Solid Shaft
• Output：Solid Shaft,Hollow Shaft
• Mounting：Foot or Flange
• Material：Cast Iron
• Transport Package：Wooden Case
• HS Code：8483409000
• Production Capacity：400PCS,Month

Basic Info.

Type Planetary Gear Box Delivery 60days Warranty One Year Input Flange/Solid Shaft Output Solid Shaft/Hollow Shaft Mounting Foot or Flange Material Cast Iron Transport Package Wooden Case HS Code 8483409000 Production Capacity 400PCS/Month

Product Description

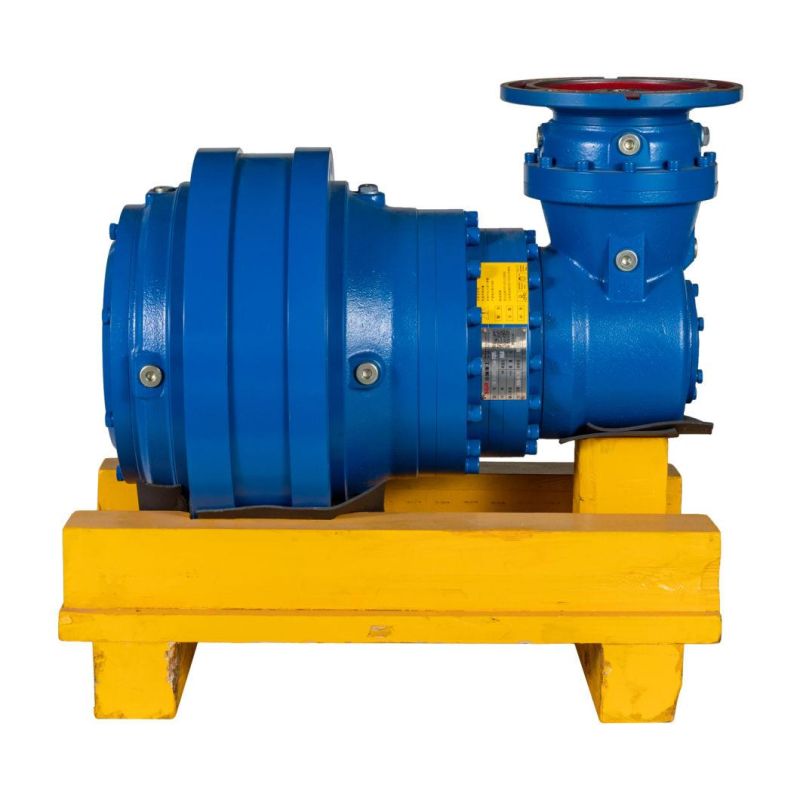

Planetary Gear Box Reducer  With High Torque Can Replace Bonfiglioli Model

Technical data:
1. Ratio range: 3.15-9000
2. Input power: 0.25-55KW
3. Permit torque rang: ≤ 800000N. M
4. Output speed: 0.425-445 r/min
5. Structure mode: Possibility of flange, foot, or shaft mounting solutions

Characteristic:
1. Wide and comprehensive range of N series for industrial applications

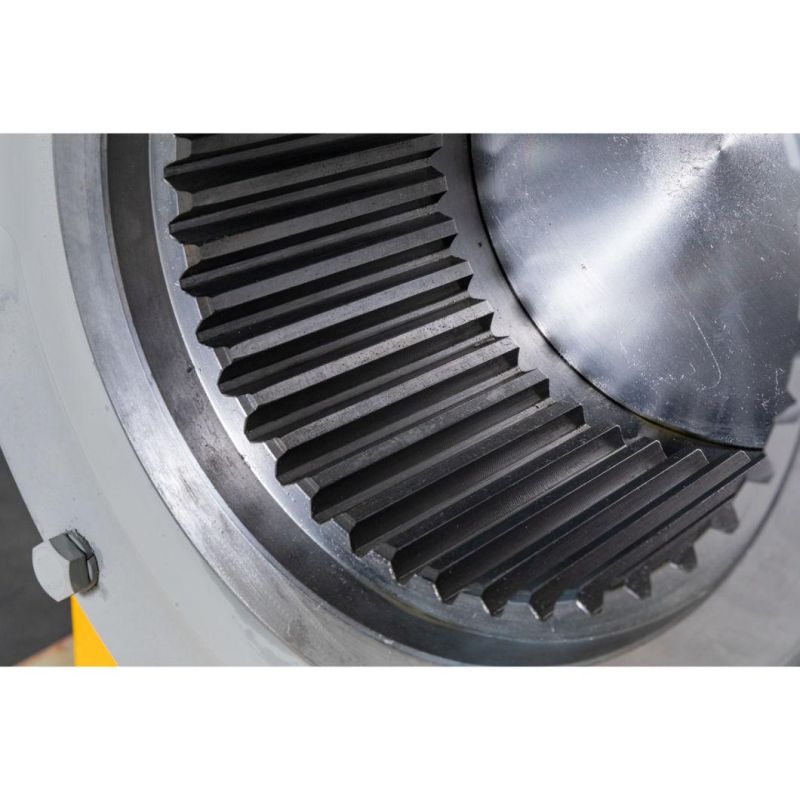

2. Low speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low speed shaft bearing

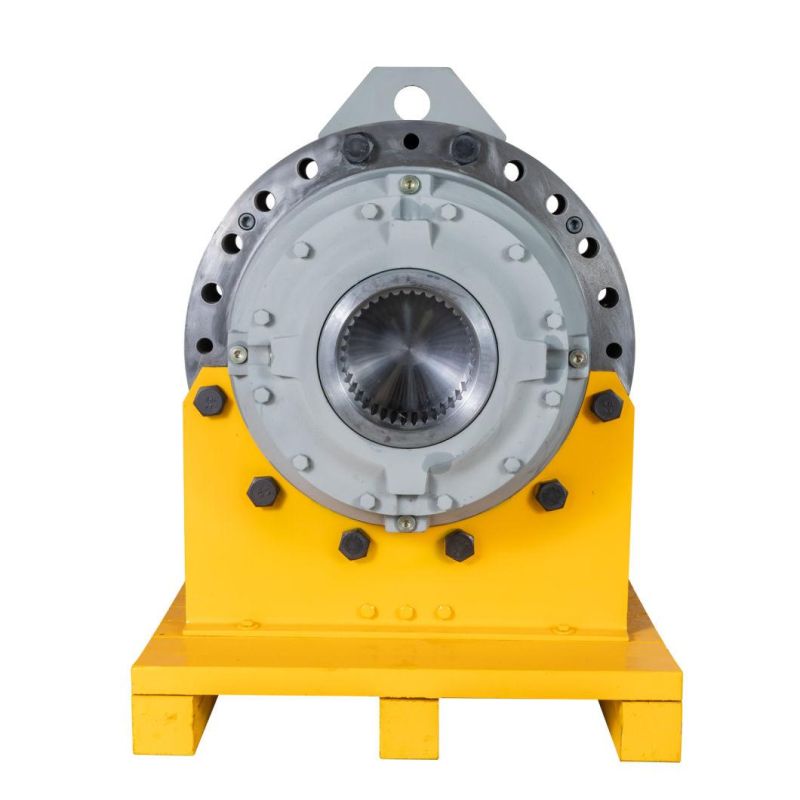

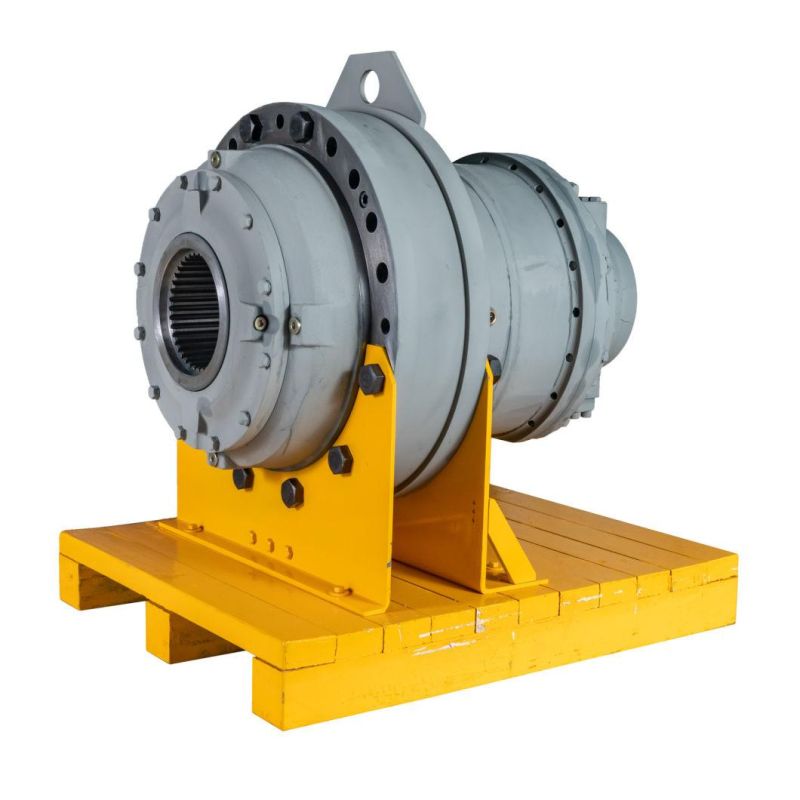

Characteristic of Foot Mounted High Torque Planetary Gearbox :

1. The wide and comprehensive range of N series for industrial applications
2. Low-speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low-speed shaft bearing

Ratio	3.15:1 to 9000:1
Reduction Stages	up to 6 reduction stages in one gearbox
Nominal Output Torque	up to 800,000N.m

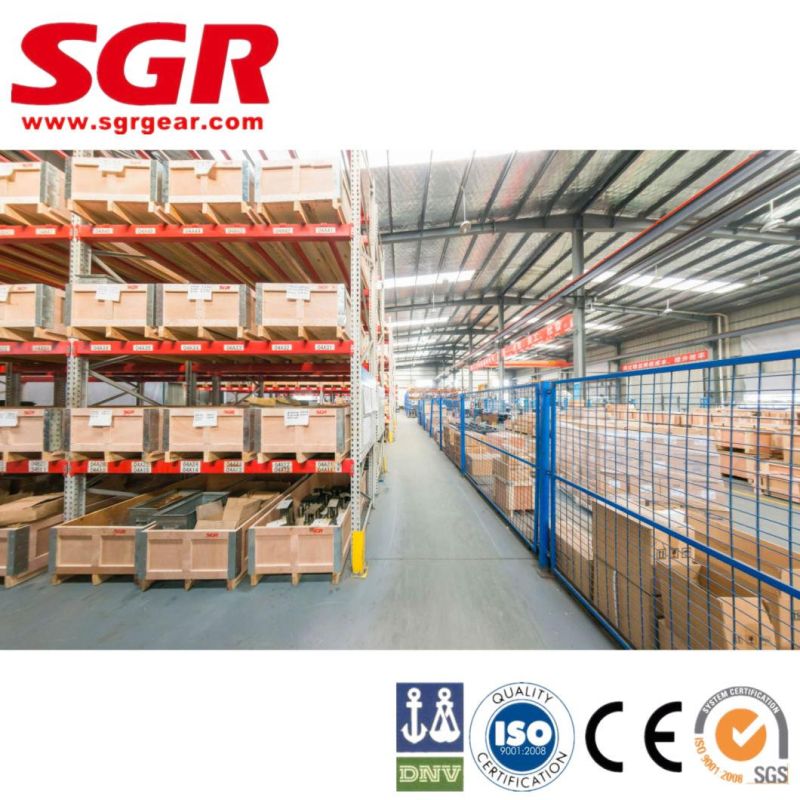

Packaging & Shipping

Package :

SGR gearbox use standard wood case per gear motor | gear unit.

FAQ


1. Are you a factory or trader ?

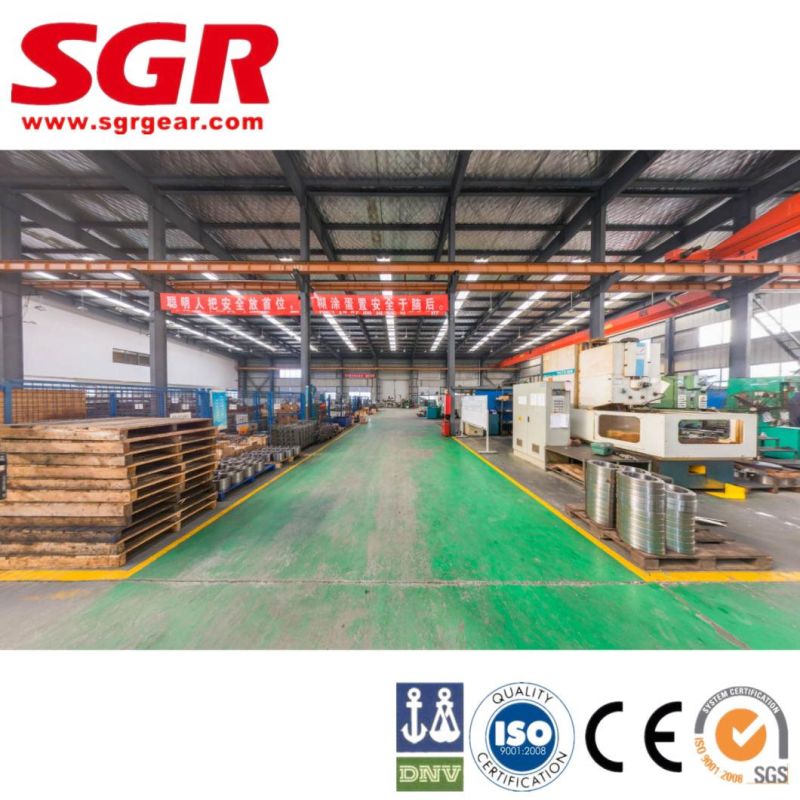

We are a professional factory which has 20 years history specialized in gear transmission .
2. MOQ?
Our MOQ is 1pcs. However there is one handling cost $150 for the single order which less than $3000.00
3. warranty
Our warranty is 12months
4. payment term
100% T/T in advance and LC at sight .
5. Do you accept customization ?
YES.SGR have strong R&D team, we can provide customizable service according to requirements.
6. packing
Generally we use standard export plywood case to arrange the shipment .
7. delivery time
In normal ,time of delivery is 30days after receiving the prepayment .
8. What kinds of certification do you use?
We have ISO9001 and SGS certification.
9. What kinds inspection you do before shipment ?
We do temperature test, noise, and oil leak inspection before shipment.
10. How do you solve if the production have problem?
Mostly, we don't need customer send the goods back to us. Because the cost is very high, if there meets a problem,we firstly ask for the pictures for damaged parts. And base on the pictures, we can have a basic idea for the defect reason. Our guarantee is 12 months, if during the guarantee, we can supply repair .
