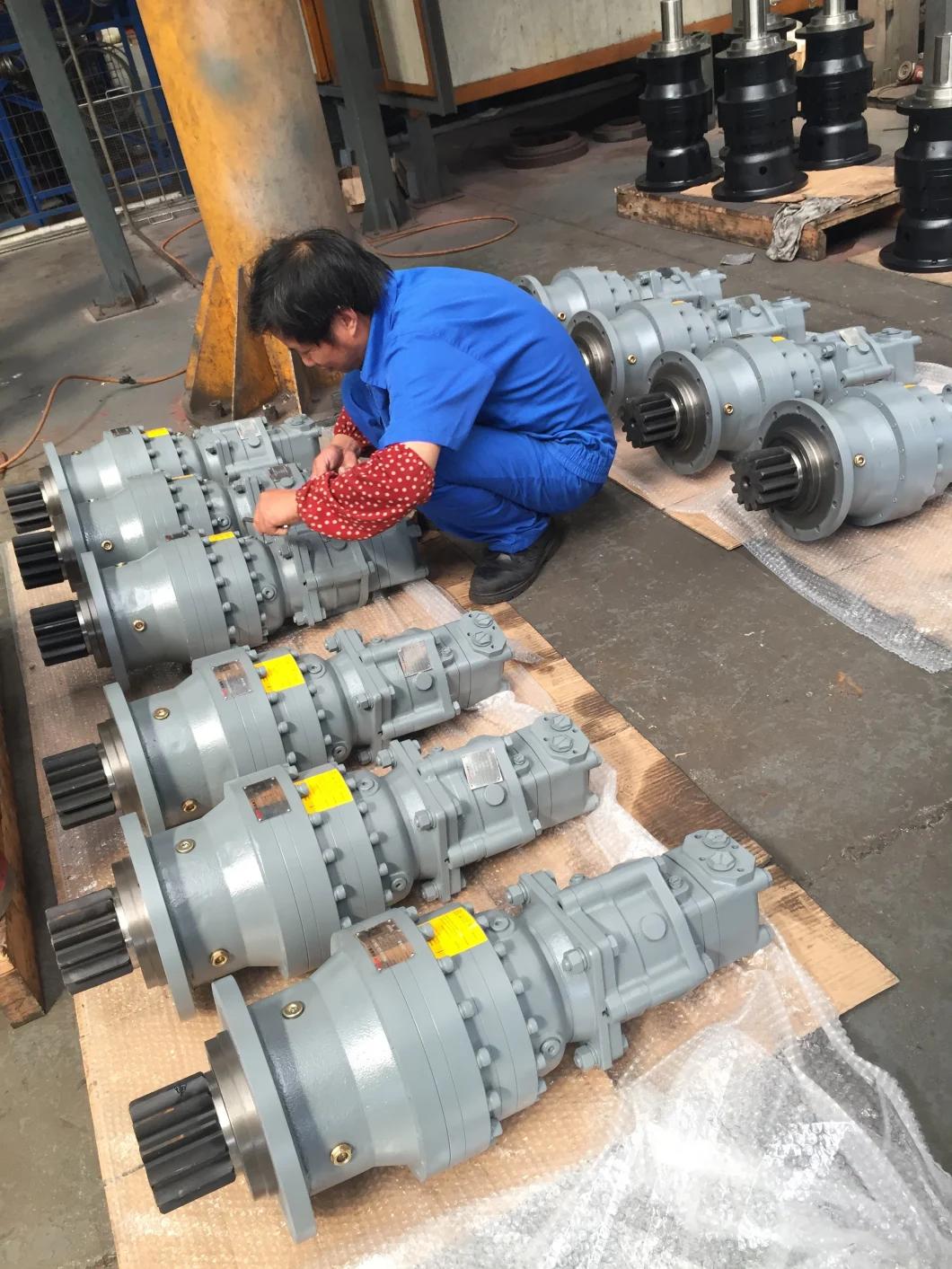

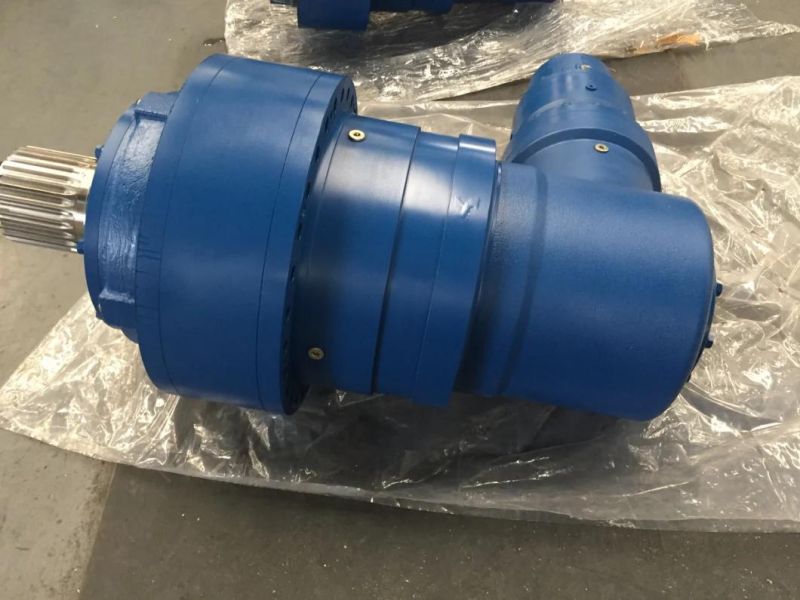

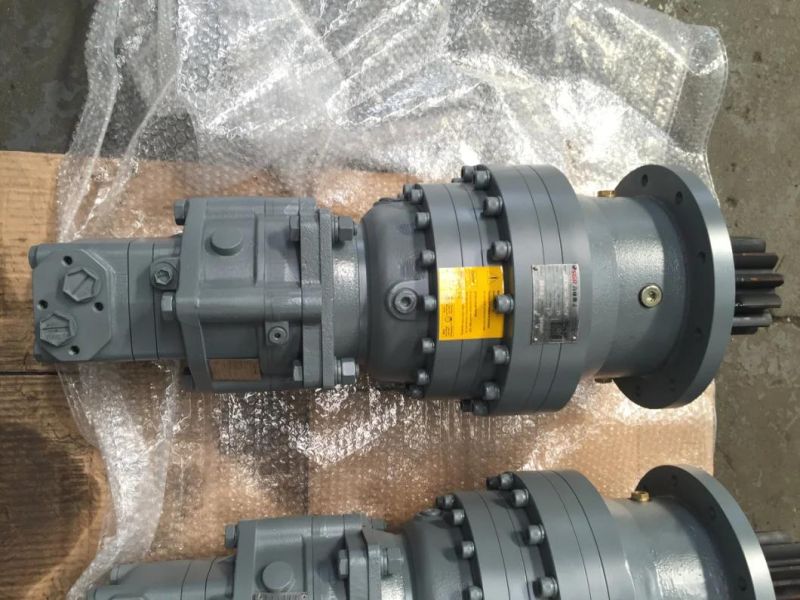

Planetary Gearbox Reducer with Hydraulic Motor Bonfiglioli Type

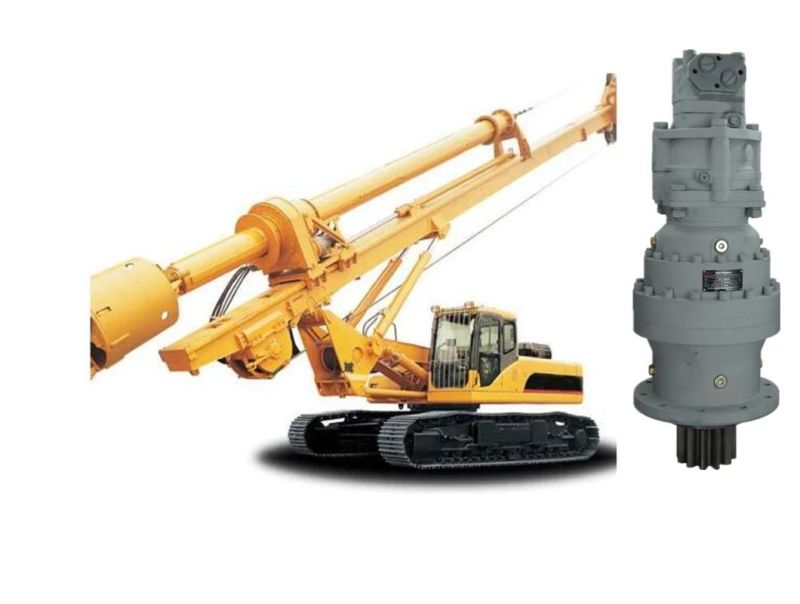

Shanghai SGR Heavy Industry Machinery Co., Ltd.- Application：Motor, Electric Cars, Machinery, Marine, Agricultural Machinery
- Function：Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
- Layout：Coaxial
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Step：Four-Step
Base Info
- Model NO.：MN,N
- Type：Planetary Gear Box
- Warranty：One Year
- Color：Blue
- Delivery：60days
- Input：Flange or Solid Shaft
- Output：Male Splined Shaft
- Accessorys：Foot or Torque Arm
- Transport Package：Wooden Case
- Specification：According to actual production
- Trademark：SGR
- Origin：Shanghai, China
- HS Code：8483409000
- Production Capacity：400PCS,Month
Description
Basic Info.
Model NO. MN/N Type Planetary Gear Box Warranty One Year Color Blue Delivery 60days Input Flange or Solid Shaft Output Male Splined Shaft Accessorys Foot or Torque Arm Transport Package Wooden Case Specification According to actual production Trademark SGR Origin Shanghai, China HS Code 8483409000 Production Capacity 400PCS/MonthProduct Description
Planetary Gearbox Reducer with Hydraulic Motor Bonfiglioli TypeTechnical data:
1. Ratio range: 3.15-9000
2. Input power: 0.25-55KW
3. Permit torque rang: ≤ 800000N. M
4. Output speed: 0.425-445 r/min
5. Structure mode: Possibility of flange, foot, or shaft mounting solutions
Equivalent to bonfiglioli planetary gear box Characteristic:
1. Wide and comprehensive range of N series for industrial applications
2. Low speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
