Svh3 Dual Axis Solar Tracker Slewing Drive Motor
Coresun Drive Equipment Changzhou Co., Ltd.- Application：Motor
- Type：Gear Reducer
- Holding Torque：1100n.M
- Tilting Moment Torque：2200n.M
- Output Torque：446n.M
- Output Speed：1rpm
Base Info
- Model NO.：SVH3-62B-RC-24H3033
- IP Class：IP65
- Slef-Locking：Yes
- Precision：0.1 Degree
- Mounting Hole：6xm10
- Corrosion Protection：C3
- Mounting Specification：100mm
- Color：Grey
- Transport Package：Wooden Case with Vci Package
- Specification：SVH3-62B-RC-24H3033
- Trademark：Coresun Drive
- Origin：Changzhou, China
- HS Code：8483409000
- Production Capacity：3000PCS,Month
Description
Model
SVH3
Place of Origin
Changzhou,China
Brand
Coresun Drive
Type
Dual Axis
IP Class
IP65
Output Torque
446N.m
Tilting Moment Torque
1100N.m
Holding Torque
2000N.m
Mounting Bolts
M10
1rpm
Gear Ratio
62:1
Efficiency
40%
Slewing drive is a special slewing reduction product derived from the slewing bearing product with high integration, large reduction ratio, simple structure, easy use and maintenance, because the slewing ring is used as the follower and the frame basis, the slewing ring is used The inner and outer rings respectively realize the input and output of driving power, so that the slewing drive can not only realize 360-degree rotation without stopping point, but also can install a driving power source on the basis of the slewing ring frame at the same time, so its transmission efficiency is high and it is a mechanical transmission The new member of the device family. Because it is essentially a reduction gear, it can also be called a rotary reducer, a turntable reducer or a drive turntable.
Slewing drive is usually composed of a slewing ring, worm, casting housing, and standard components like bearing and bolts, etc. While used in photovoltaic power generation system, the slewing drive is usually used in combination with DC planetary speed reducer motor and AC speed reducer motor. While used in engineering equipment, it is regularly used in combination with hydraulic motor to function as power driving system.
When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual area of solar panels. Broadly speaking, 3 inch slewing drive is suitable for solar power system coming with 3- 5 m2 solar panel, 7 inch for 10-17 m2 solar panel, 9 inch for 18-30 m2, 12 inch for 31-45 m2, and 14 inch for 46-60 m2. These are provided for your reference. For more specific and detailed information, please contact me directly.

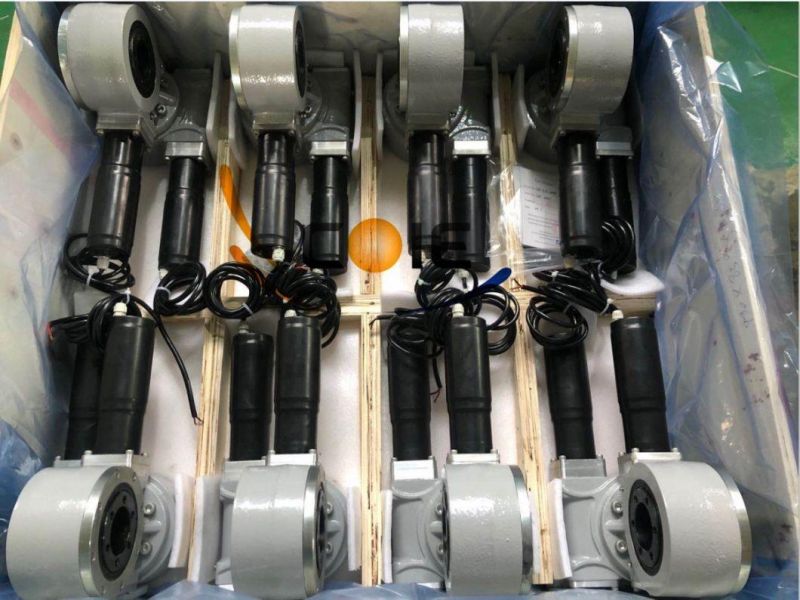

3" SVH3 Slewing Drive Production Photo

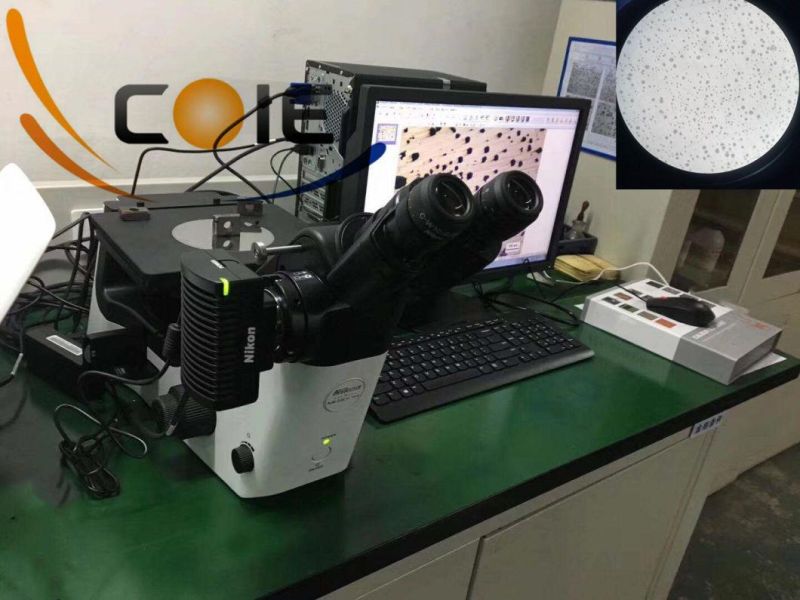

Coresun Drive processes the Slewing Drive Motor metallographic testing to ensure the quality of raw material and follows the standard inspection specification.
