• Model NO.：Y2-355-4
• Frame：H355, 400, 450, 500, 560
• Speed：3000rpm, 1500rpm, 1000rpm, 750rpm
• Housing：Cast Iron, Carbon Steel
• Duty：S1
• Ins. Class：F,H
• Temp Rise：B
• Mounting：B3, V1, B35
• Voltage：6000V, 10000V
• Freq.：50Hz, 60Hz
• Cooling Method：IC611, IC616, IC666
• Efficiency：Ie2
• Protection：IP55, IP54
• Bearing：C&U, SKF, FAG, NSK
• Terminal Box：Top, Side
• Transport Package：Seaworthy Package
• Specification：2810*1390*1800mm
• Trademark：WNM
• Origin：Jingxian, Anhui, China
• HS Code：8501530090
• Production Capacity：5000 PCS,Month

Basic Info.

Model NO. Y2-355-4 Frame H355, 400, 450, 500, 560 Speed 3000rpm, 1500rpm, 1000rpm, 750rpm Housing Cast Iron, Carbon Steel Duty S1 Ins. Class F/H Temp Rise B Mounting B3, V1, B35 Voltage 6000V, 10000V Freq. 50Hz, 60Hz Cooling Method IC611, IC616, IC666 Efficiency Ie2 Protection IP55, IP54 Bearing C&U, SKF, FAG, NSK Terminal Box Top, Side Transport Package Seaworthy Package Specification 2810*1390*1800mm Trademark WNM Origin Jingxian, Anhui, China HS Code 8501530090 Production Capacity 5000 PCS/Month

Product Description

Three Phase AC Induction Motor---------------------------------------------------------------------------------------------
Applications
Ideal for driving all kinds of general machinery, such as water pump, fan, compressor and etc.

FeaturesThe stator with outer-press-assembly structure is adopted stator is made of F-grade insulation and corona proof material, a special banding techniques is used for winding end part fastening. The whole stator is treated by VPI with F grade solution technology, by this means motor will posses good and reliable insulation property and moisture proof, anti-impact capability.
 General Description

• Frame sizes: 355-560                  Rated output: 185-1600kW
• Insulation class: F                     Degree of protection: IP54
• Enclosure: IC411                      Rotor: Squirrel cage
• Voltage: 6Kv, 10Kv                     Mounting: Horizontal

The stator with outer-press-assembly structure is adopted. Stator is made of F-grade insulation and corona proof material. A special banding technology is used for winding end part fastening. The whole stator is treated by VPI with F grade insulation technology. By this means motor will possess good and reliable insulation property and moisture proof, anti-inpact capability.
The rotor can be developed into two modes casting aluminum and copper bar rotor. Casting aluminum rotor is casted with pure aluminum which is reliable in operation and will don't have the phenomenon of rotor conductor to be broken up. The motor's rotor copper conductors and end rings adopt intermediate-frequency welding when the rotor is copper-cage rotor. The rotor copper conductors are featured by high reliability via dealing with tightening craft in trough.


Performance Data
Y2 series technical data (6kV)

Type	Output (kW)	Stator current (A)	RPM (r/min)	Eff. (%)	P.F CosΦ	Tm Tn	Tst Tn	Ist In	Flywheel torque (kg.m)	Weight (kg)
Y2-3551-2 Y2-3552-2 Y2-3553-2 Y2-3554-2 Y2-3555-2	185 200 220 250 280	22.6 24.4 26.8 30.3 33.1	2990 2990 2990 2990 2990	93.9 94.0 94.2 94.4 94.6	0.84 0.84 0.84 0.84 0.86	2.0 2.0 2.0 2.0 2.0	0.7 0.7 0.7 0.7 0.7	7.0 7.0 7.0 7.0 7.0	8 8.5 9.5 10 11	2035 2075 2160 2215 2280
Y2-4001-2 Y2-4002-2 Y2-4003-2 Y2-4004-2	315 355 400 450	37.2 41.9 47.1 52.9	2990 2990 2990 2990	94.8 94.9 95.1 95.2	0.86 0.86 0.86 0.86	2.0 2.0 2.0 2.0	0.7 0.7 0.7 0.7	7.0 7.0 7.0 7.0	17 18 19.5 21	2630 2700 2830 2920
Y2-4501-2 Y2-4502-2 Y2-4503-2 Y2-4504-2	500 560 630 710	58.0 94.9 73.0 82.1	2990 2990 2990 2990	95.3 95.4 95.5 95.7	0.87 0.87 0.87 0.87	2.0 2.0 2.0 2.0	0.7 0.7 0.7 0.7	7.0 7.0 7.0 7.0	22 24 27 30	3200 3300 3500 3600
Y2-5001-2 Y2-5002-2 Y2-5003-2 Y2-5004-2	800 900 1000 1120	91.5 102.8 114.0 127.6	2990 2990 2990 2990	95.6 95.7 95.9 96.0	0.88 0.88 0.88 0.88	2.0 2.0 2.0 2.0	0.7 0.7 0.7 0.7	7.0 7.0 7.0 7.0	61 65 69 75	5360 5500 5640 5900
Y2-5601-2 Y2-5602-2 Y2-5603-2	1250 1400 1600	140.6 157.2 179.3	2990 2990 2990	96.1 96.3 96.5	0.89 0.89 0.89	2.0 2.0 2.0	0.7 0.7 0.7	7.0 7.0 7.0	111 119 127	5800 5860 5930
Y2-3551-4 Y2-3552-4 Y2-3553-4 Y2-3554-4 Y2-3555-4	185 200 220 250 280	22.6 24.4 26.8 30.4 33.9	1490 1490 1490 1490 1490	93.7 93.9 94.1 94.3 94.5	0.84 0.84 0.84 0.84 0.84	2.0 2.0 2.0 2.0 2.0	0.8 0.8 0.8 0.8 0.8	6.5 6.5 6.5 6.5 6.5	19 21.5 23 24.5 25.5	2120 2220 2290 2340 2400
Y2-4001-4 Y2-4002-4 Y2-4003-4 Y2-4004-4	315 355 400 450	37.7 42.4 47.7 53.5	1490 1490 1490 1490	94.6 94.8 95.0 95.2	0.85 0.85 0.85 0.85	2.0 2.0 2.0 2.0	0.8 0.8 0.8 0.8	6.5 6.5 6.5 6.5	32 34 37 39	2970 3080 3170 3250
Y2-4501-4 Y2-4502-4 Y2-4503-4 Y2-4504-4	500 560 630 710	58.7 65.7 73.8 83.1	1490 1490 1490 1490	95.3 95.4 95.5 95.6	0.86 0.86 0.86 0.86	2.0 2.0 2.0 2.0	0.8 0.8 0.8 0.8	6.5 6.5 6.5 6.5	52 58 65 73	3500 3700 3950 4200
Y2-5001-4 Y2-5002-4 Y2-5003-4 Y2-5004-4	800 900 1000 1120	93.5 105.1 116.7 130.5	1490 1490 1490 1490	95.7 95.8 95.9 96.0	0.86 0.86 0.86 0.86	2.0 2.0 2.0 2.0	0.8 0.8 0.8 0.8	6.5 6.5 6.5 6.5	130 141 148 156	5350 5540 5700 5800
Y2-5601-4 Y2-5602-4 Y2-5603-4	1250 1400 1600	143.9 161.0 183.6	1490 1490 1490	96.1 96.2 96.4	0.87 0.87 0.87	2.0 2.0 2.0	0.7 0.7 0.7	6.5 6.5 6.5	252 272 305	5900 5950 6020

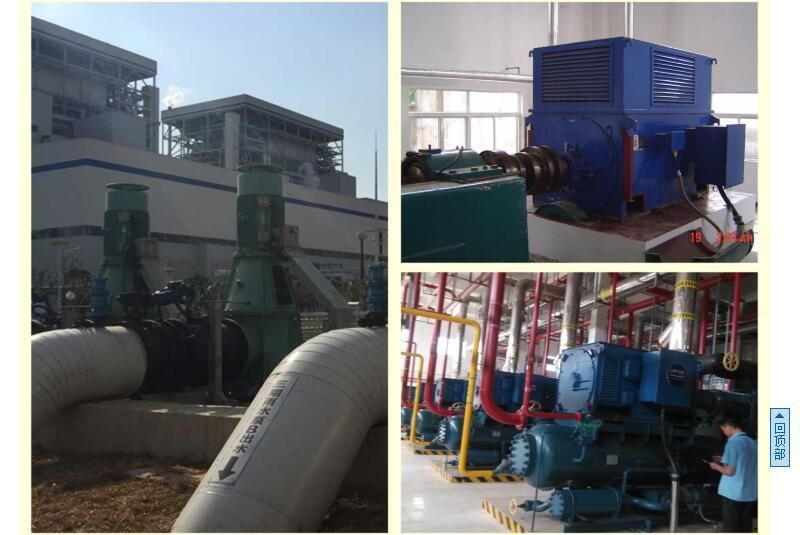

Site



Show Room


Certificates




Premium Service


Quality Control

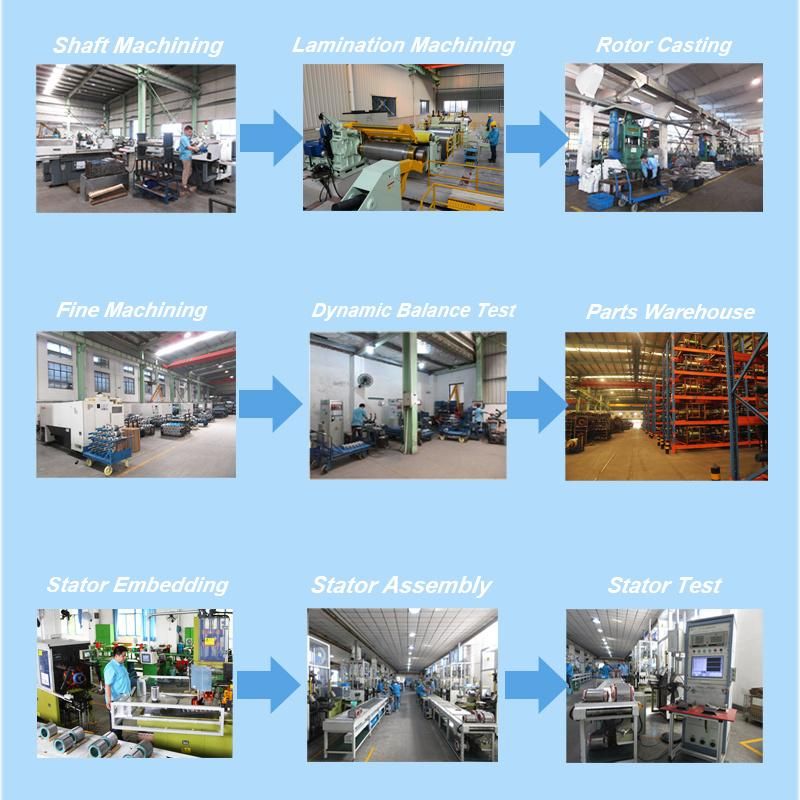

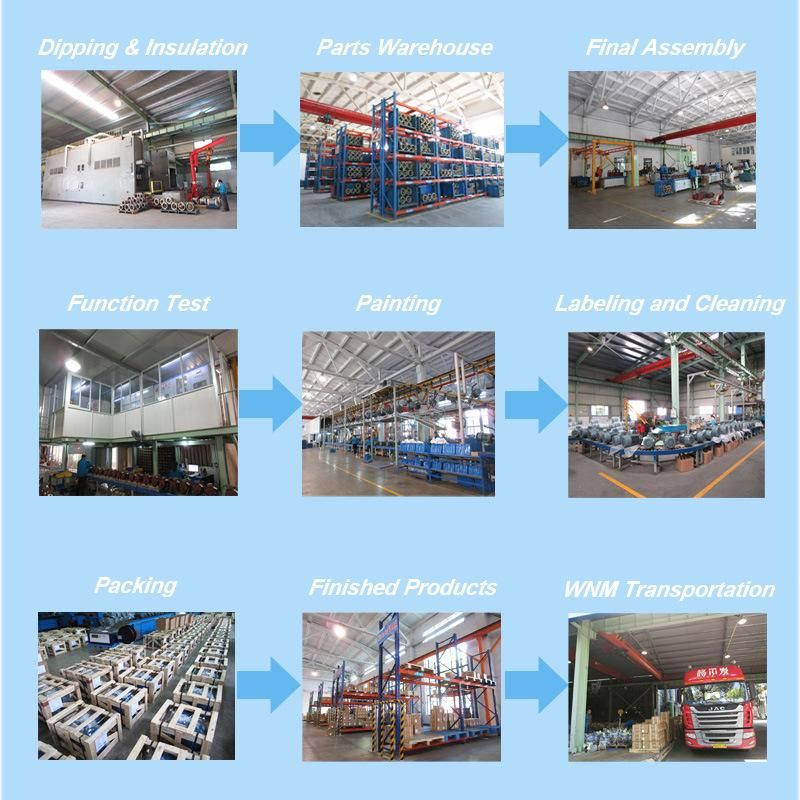

Wannan Motor Production Workshop and Flow Charts
