3 Inch Worm Drive 24V Gear Motor
Coresun Drive Equipment Changzhou Co., Ltd.- Application：Motor
- Type：Gear Reducer
- Holding Torque：1100n.M
- Tilting Moment Torque：2200n.M
- Output Torque：446n.M
- Output Speed：1rpm
Base Info
- Model NO.：SVH3-62B-RC-24H3033
- IP Class：IP65
- Slef-Locking：Yes
- Precision：0.1 Degree
- Mounting Hole：6xm10
- Corrosion Protection：C3
- Mounting Specification：100mm
- Color：Grey
- Transport Package：Wooden Case with Vci Package
- Specification：SVH3-62B-RC-24H3033
- Trademark：Coresun Drive
- Origin：Changzhou, China
- HS Code：8483409000
- Production Capacity：3000PCS,Month
Description
Model
SVH3
Place of Origin
Changzhou,China
Brand
Coresun Drive
Type
Dual Axis
IP Class
IP65
Output Torque
446N.m
Tilting Moment Torque
1100N.m
Holding Torque
2000N.m
Mounting Bolts
M10
1rpm
Gear Ratio
62:1
Efficiency
40%

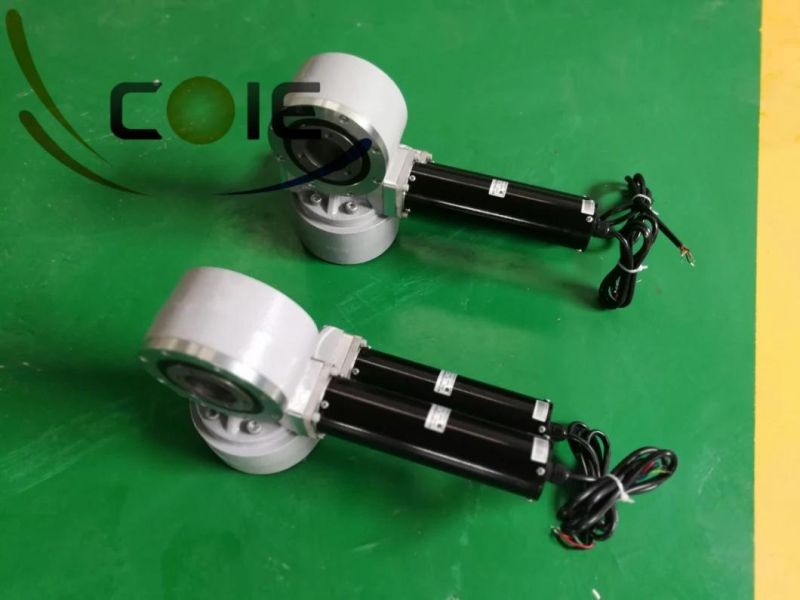

3" SVH3 Slewing Drive Production Photo

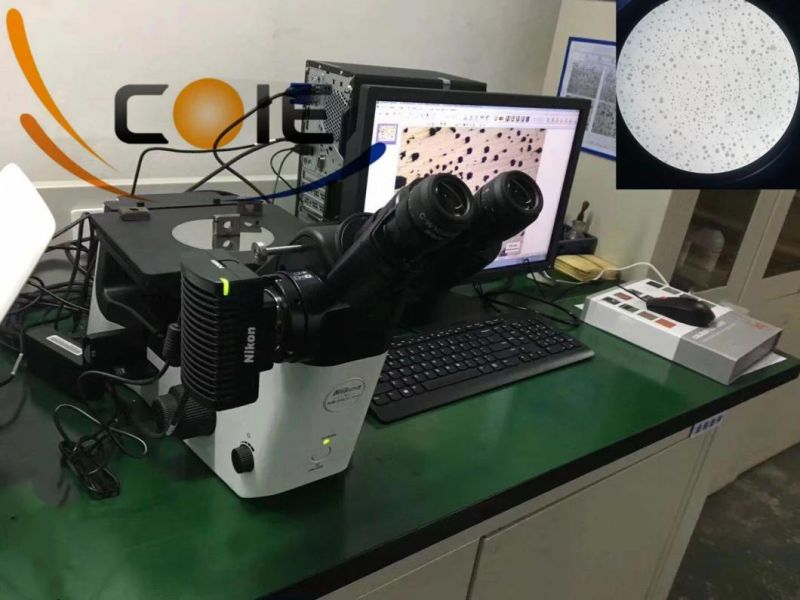

Coresun Drive processes the Slewing Drive Motor metallographic testing to ensure the quality of raw material and follows the standard inspection specification.
