Power Transmission Parts

Flange Hollow Model Cam Indexer

WEIFANG TOPTION MACHINERY CO., LTD.
  • Application:Machinery
  • Function:Distribution Power, Change Drive Torque, Speed Changing, Speed Reduction, Disc Processing Automatic Machinery
  • Layout:Cycloidal
  • Hardness:Hardened Tooth Surface
  • Installation:Vertical Type
  • Step:Stepless

Base Info

  • Model NO.:HONGPAN 100DFH
  • Type:Cylindrical Gear Box
  • Weight:55kg
  • Usage:Used for All Kinds of Disc Machining Machinery
  • Transport Package:Wooden Box
  • Specification:55KG
  • Trademark:HONE PAN
  • Origin:Shandong, Zhucheng
  • HS Code:8483409000
  • Production Capacity:50000sets,Year

Description

Basic Info.

Model NO. HONGPAN 100DFH Type Cylindrical Gear Box Weight 55kg Usage Used for All Kinds of Disc Machining Machinery Transport Package Wooden Box Specification 55KG Trademark HONE PAN Origin Shandong, Zhucheng HS Code 8483409000 Production Capacity 50000sets/Year

Product Description

100DFH  HONGPAN

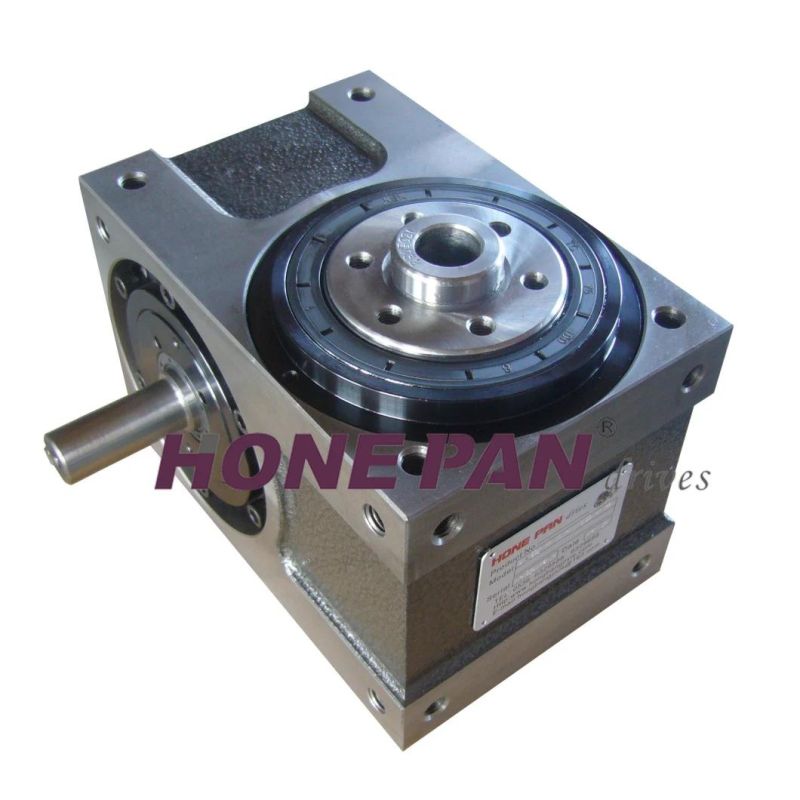

Flange Hollow Model Cam Indexer



1. Flange Hollow Type Cam Indexer (DFH) introduction:

The end of output is flange, in the middle of flange there is a through-hole, through which the cable, water pipe, mandrel could across. This series is suitable for all kinds of processing machines with disk.

    Flange Hollow Type Cam Indexer (DFH) includes: 60DFH, 70DFH, 80DFH, 100DFH,
    110DFH,  125DFH, 140DFH, 180DFH, 200DFH, 250DFH


2. The Features of Our Products(DFH Series)
1). Simple structure: mere mechanical structure, composed of the cam and division plate;
2).  High accuracy: accurate positioning in both partition and static area; no lock components
      needed; vast choices of stop numbers.
3).  Steady transmission: solid CAM curvilinear with good kinetic characteristic, transmission is
      smooth, little vibration, and no noise.
4).  High accuracy of segmentation output: accuracy output less than ± 15 sec.
5).  High-speed performance: nearly zero friction in transmission process, input shaft speed can
      reach as high as 900 RPM.
6). Long life span: generally 20000 hours.


2. Product Details :
As the increasing demand of modern industry for automation, high-speed, high precision of products, cam splitter has been widely used in many kinds of automation equipment. Cam splitter is an ideal intermittent transmission mechanism which could turn continuous running of automation equipment into stepping action.

Our shaft model serves as the drive unit, in the mechanism that the output shaft connects sprocket, coupling, drum, gear, etc., as part of the follower institutions. It is easy to use and install.


3.Our Advantages:
1) We are the most  regular CAM indexer manufacturing enterprise in China, price is
    more competitive
2). Advanced CNC lathes. Processing scope: milling, grinding, drilling, boring etc.
3). We can produce kinds of machining parts according your drawing
4). Small order can accepted
5). High accuracy
6). 3D drawings or samples are welcome.
7). We strictly according to quality control system. and 10  years export experience in this line.
8). Packing: Wooden cases,or cartons, as customers' requirements


4.Specification of 100DFH Cam splitter:
ItemSymbolUnitValue
Output allowable radial loadC1Kgf500
Output allowable axial loadC2kgf650
Output allowable torqueTsKgf-mRefer to Torque Capacity Table
Input allowable radial loadC3Kgf400
Input maximum bending momentC4Kgf395
Input maximum torqueC5Kgf-m34
GD2 of input shaft (note 1)C6Kgf-m24×10-3
Indexing accuracy Sec.±30
Weight Kg55

Note 1: GD2 of input shaft is a value in dwell range.
Note 2: Value of C1 to C5 are those obtained for safety factor=2.

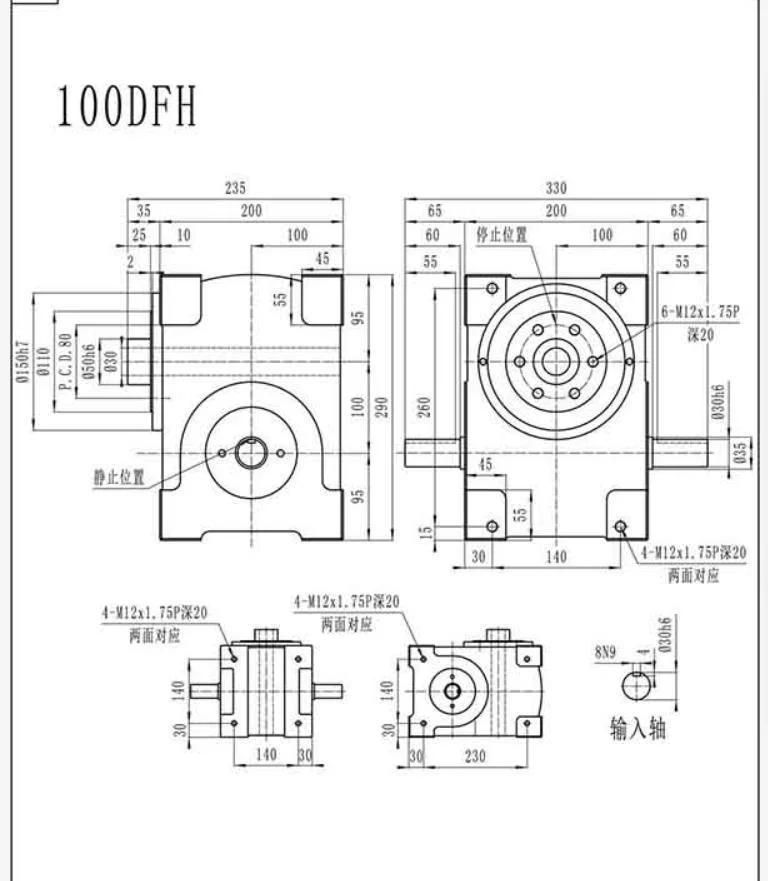

5.Product drawing of 100DFH Cam splitter:

Flange Hollow Model Cam Indexer

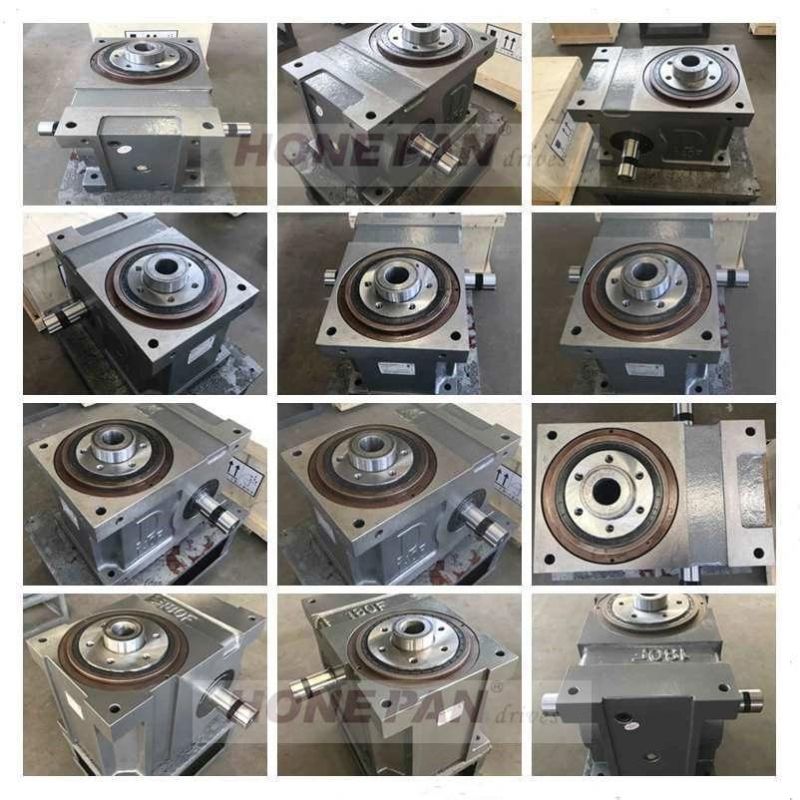

6. Product Photos:
Flange Hollow Model Cam Indexer

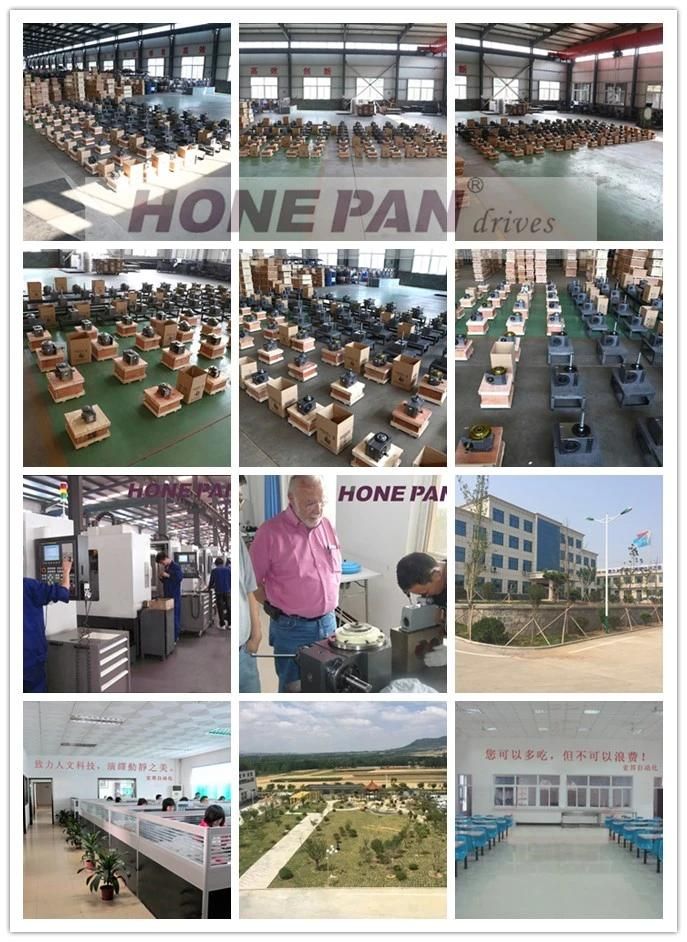

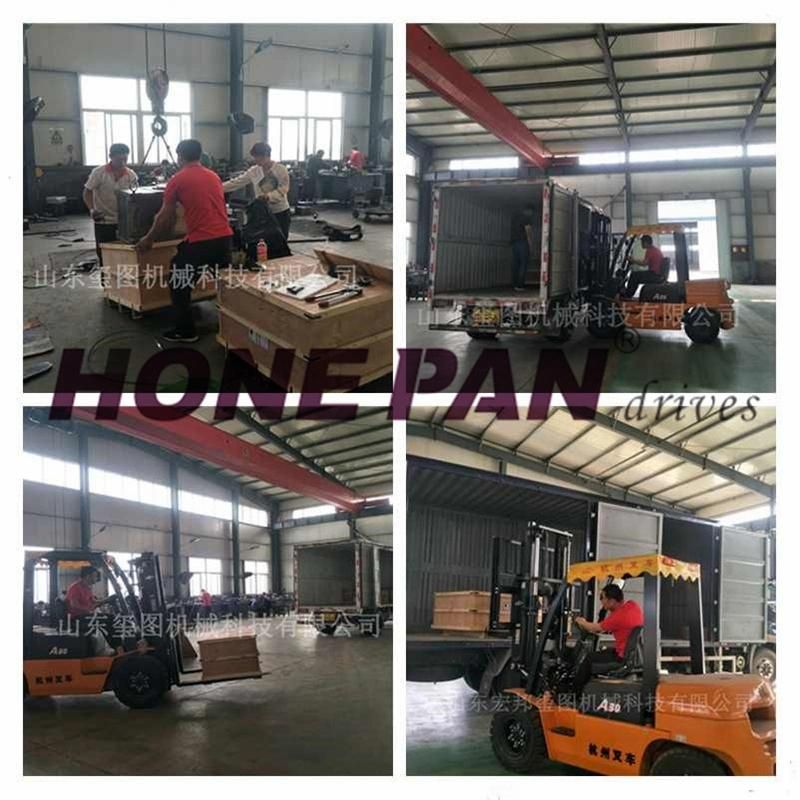

7.Company, Packaging & Shipment & Quality Control
Flange Hollow Model Cam Indexer


Flange Hollow Model Cam Indexer

8. FAQ:

Q1. Customize prodcuts are available ?

A: Yes, Customize products are available. We could design and produce products according to your    requirements or darwings. You just need to tell us your detailed requirements and our technicists will  design and provide materials for your confimation. If all is ok, the production will be arranged.

Q2. What's your payment terms?
A:For small order, considering the value is not large, the payment terms are 100% T/T in advance.
  For large order, we could negotiate.

Q3. How about the packaging and shipment?
A: Packaging : in box (wooden case).
   Shipment : according to customer's instruction.

Q4. How about the lead time ?
A:For common model, the lead time is about 15 workdays;
  For customize model, the lead time is longer, about 30 workdays.

Q5. How about the quarantee period ?
A:In generall, the quarantee period - one year for assembly unit from the date of sale .

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7. Can you provide some videos of your factory and the machine working?
A: Yes, please visit our Website to get more videos.  honepan.en.made-in-china.com

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make
         friends with them, no matter where they come from.


9. Certificate:

Flange Hollow Model Cam Indexer
