• Model NO.：SC14-85-RC-24H3033
• Weight：72kg
• Gear Ratio：85:1
• Transport Package：Standard Wooden Case
• Specification：SC14-85-RC-24H3033
• Trademark：Coresun Drive
• Origin：Changzhou, China
• HS Code：8483409000
• Production Capacity：5000PCS,Month

Model

SC14

Place of Origin

Changzhou,China

Brand

Coresun Drive

Type

Single Axis

IP Class

IP65

Output Torque

3.4kN.m

Tilting Moment Torque

67.8kN.m

Holding Torque

48kN.m

Color

Grey

≤4.5A

Gear Ratio

85:1

Efficiency

40%

Slewing drive is consist of slewing bearing,worm shaft,housing,bearing,motor and so on. Motor drive the worm shaft, the outer ring of slewing bearing will rotate, the outer ring output the torque through flange while the inner ring of slewing bearing is fixed in housing.Slewing drive is able to sustain more axial load, radial load and tilting moment.Turntable or frame rotate at azimuth and elevation driven by slewing drive.Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger derricks, and automotive lifts.severely workig condition.

Spherical worm gear reducer rotary drive device is a new type of rotary products, usually by worm, rotary support, shell, motor and other components.As the core part adopts rotary support and enveloping worm structure, it can reach multi-tooth contact, has the characteristics of large transmission torque and smooth operation, so it can bear large axial load, longitudinal load and strong overturning moment at the same time.

Compared with traditional rotating products, the spherical worm wheel rotary drive has the advantages of simple installation, easy maintenance and more space saving.The product can be widely used in the field of construction machinery and new energy, such as heavy plate transporter, container crane, truck crane, aerial working vehicle, solar power generation system and so on.

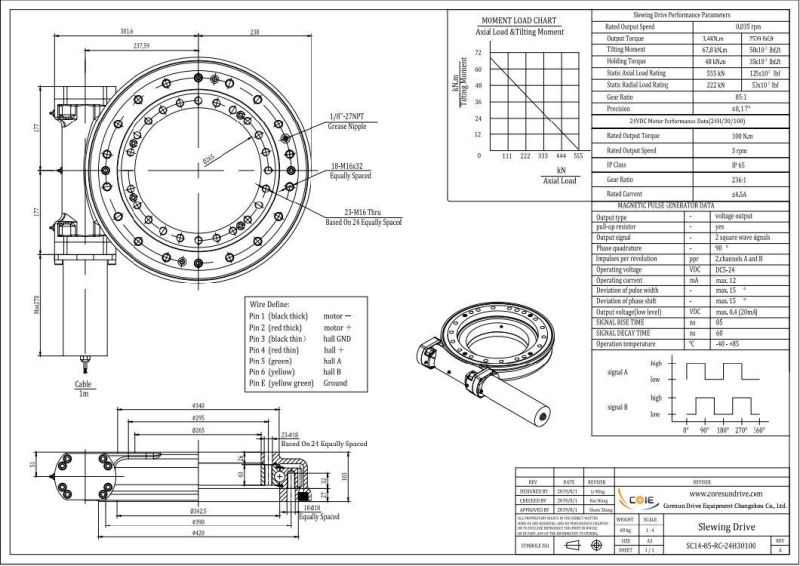

SC14 single axis slewing drive for solar tracker

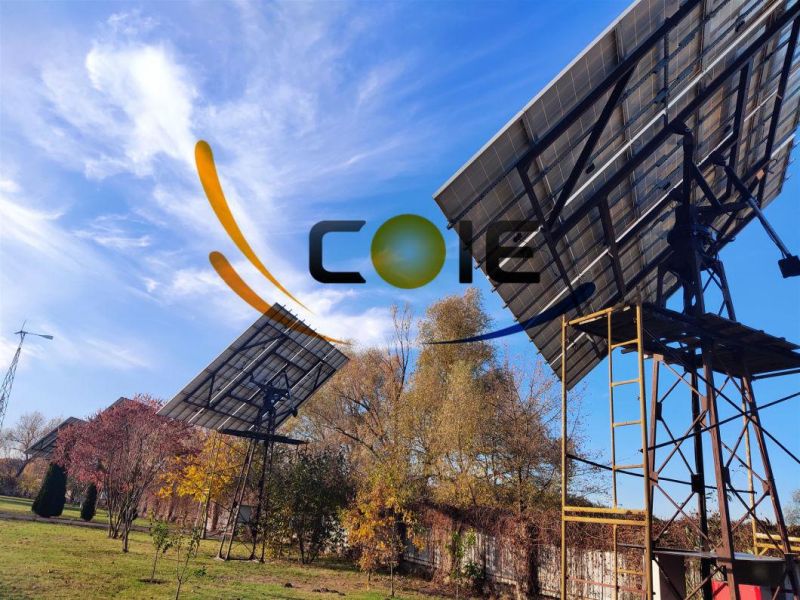

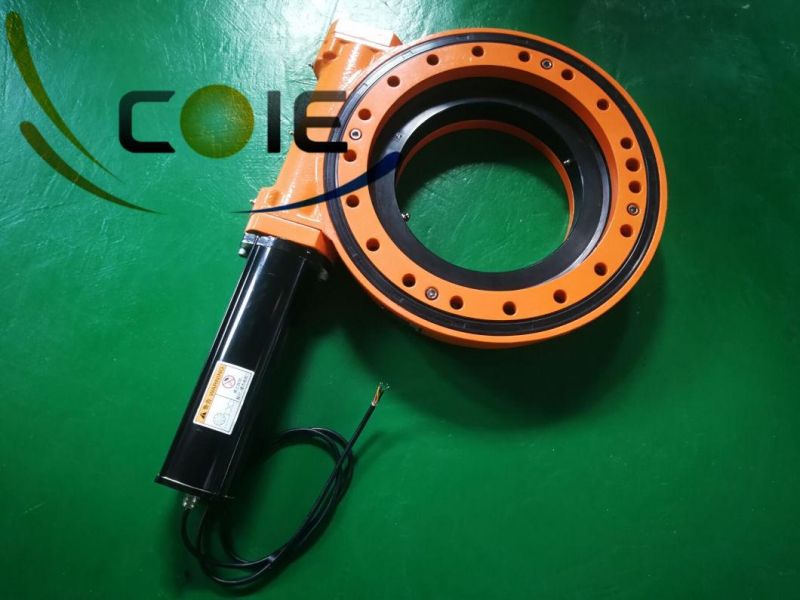

Production Photo and Application

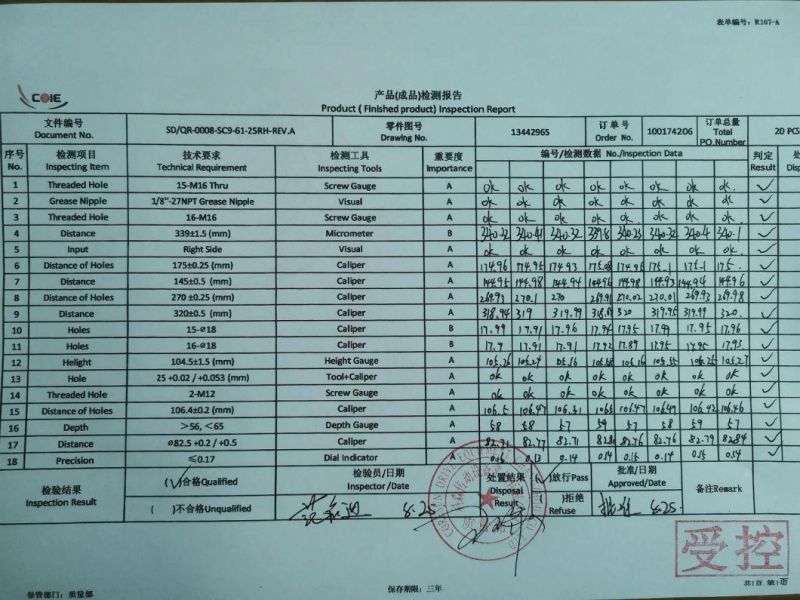

Coresun Drive ensure the quality of raw material and 100% finished product inspection.
