Slewing Drives Precision Solar Tracking System and Strong Torque for Slow Rotating Solar Panel

Coresun Drive Equipment Changzhou Co., Ltd.
  • Feature：Corrosion-Resistant
  • Step：Double-Step
  • Openness：Closed
  • Installation：Vertical
  • Transmission Form：Worm
  • Type：Single-Row Ball

Base Info

  • Model NO.：VH7-60S92-RC
  • Output Torque：6300n.M
  • Output Speed：0.025rpm
  • Holding Torque：45kn.M
  • Gear Ratio：60:1
  • IP：65
  • Corrosion Protection：C3
  • Tilting Moment Torque：10kn.M
  • Color：Grey
  • Electric Motor：Yes
  • Transport Package：Standard Exporting Package
  • Specification：VH7-60S92-RC
  • Trademark：Coresun Drive
  • Origin：Changzhou
  • HS Code：8483409000
  • Production Capacity：3000PCS,Month

Description

Model

VH7

IP

IP6

Brand

Coresun Drive

Type

Vertical

Material

42CrMo,50Mn

Output Torque

6.3KN.m

Tilting Moment Torque

10KN.m

Holding Torque

45KN.m

Static Axial Rating

350KN

Static Radial Rating

120KN

Square Tube

92mm

Motor

24VDC or 220VAC, 380VAC

Gear Ratio

60:1

Efficiency

40%

 1.Mainly apply to the relatively high condition for high requirement for dustproof, rain-proof and anti-corrosion occasion.2.Precision grade IP653.Different motors(AC, DC, Hydraulic) can be designed according to customer's requirement.4.We can provide different colors for customer5. We can make a change or design new models for customer

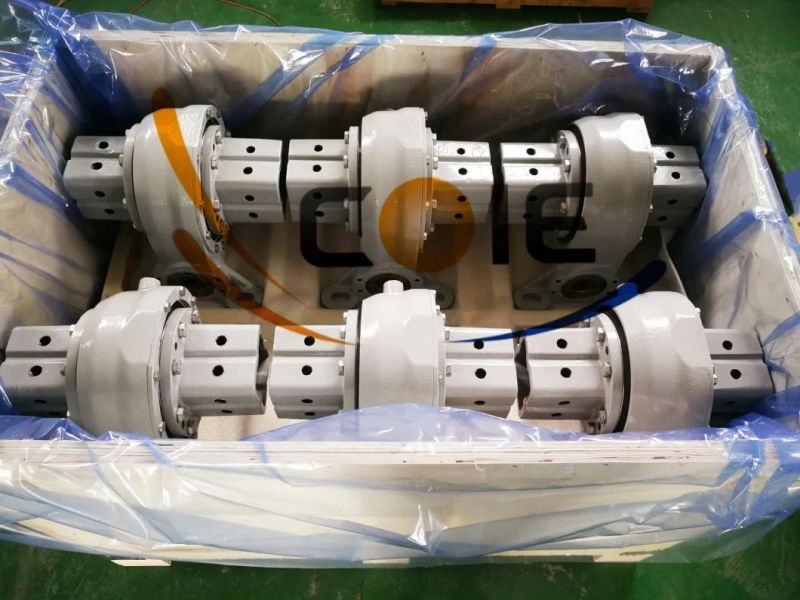

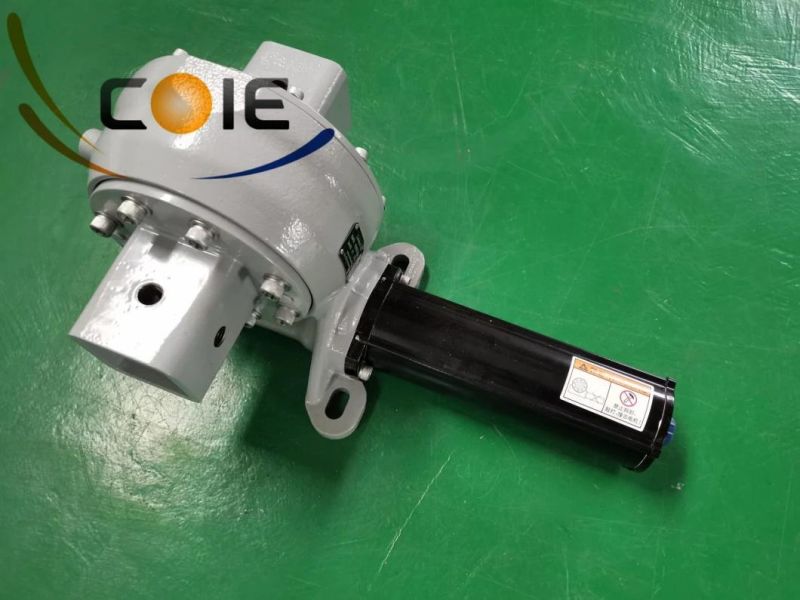

 Products Photo
Slewing Drives Precision Solar Tracking System and Strong Torque for Slow Rotating Solar Panel

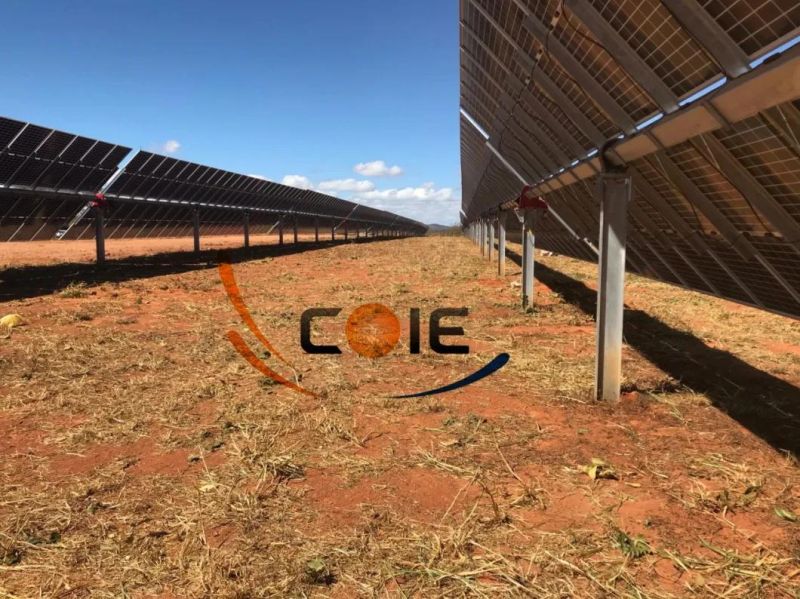

Slewing Drives Precision Solar Tracking System and Strong Torque for Slow Rotating Solar PanelProducts Application

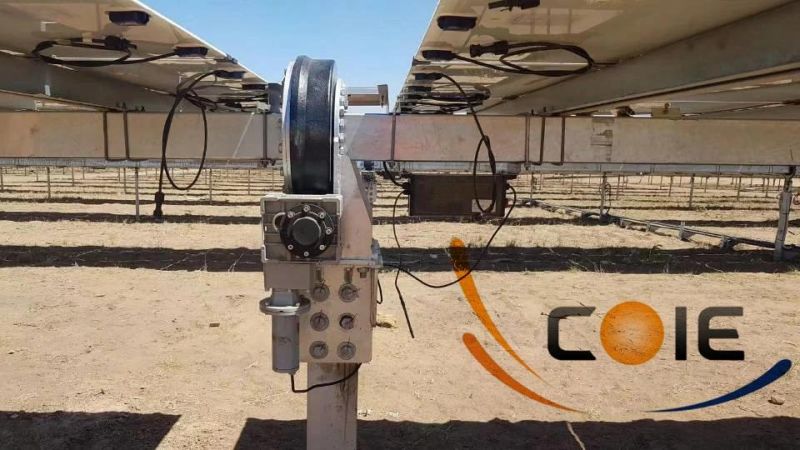

Coresun Drive slewing drive VH7 is a good solution to 60-96pcs single axis solar tracker design.
The production is widely export to USA,Canada,Germany,Spain,France,Poland,Turkey,Korea,Australia,South Africa,India, Brazil,Chile...
Slewing Drives Precision Solar Tracking System and Strong Torque for Slow Rotating Solar Panel


Slewing Drives Precision Solar Tracking System and Strong Torque for Slow Rotating Solar Panel


Products Certificate

Our slewing drive gear motor have arroved by CE and ISO2001 certificate.

Slewing Drives Precision Solar Tracking System and Strong Torque for Slow Rotating Solar Panel
Slewing Drives Precision Solar Tracking System and Strong Torque for Slow Rotating Solar Panel
