High Precision Vh3 Satellite Receiver Slewing Ring Slew Drive
Coresun Drive Equipment Changzhou Co., Ltd.- Application：Motor
- Type：Gear Reducer
- Motor：24VDC
- Holding Torque：1100n.M
- Tilting Moment Torque：2200n.M
- Output Torque：716n.M
Base Info
- Model NO.：VH3-62B-RC
- Output Speed：0.048rpm
- IP Class：IP65
- Slef-Locking：Yes
- Precision：0.12 Degree
- Mounting Hole：6xm10
- Corrosion Protection：C3
- Dynamic Axial Rating：9.6kn
- Dynamic Radial Rating：8.4kn
- Transport Package：Wooden Case with Vci Package
- Specification：VH3-62B-RC
- Trademark：Coresun Drive
- Origin：Changzhou, China
- HS Code：8483409000
- Production Capacity：5000PCS,Month
Description
Model
VH3
Place of Origin
Changzhou,China
Brand
Coresun Drive
Type
Vertical Drive
IP Class
IP65
Output Torque
716N.m
Tilting Moment Torque
1100N.m
Holding Torque
2000N.m
Mounting Bolts
M10
Grey or Black
Dynamic Axial Rating
9.6kN
Dynamic Radial Rating
8.4kN

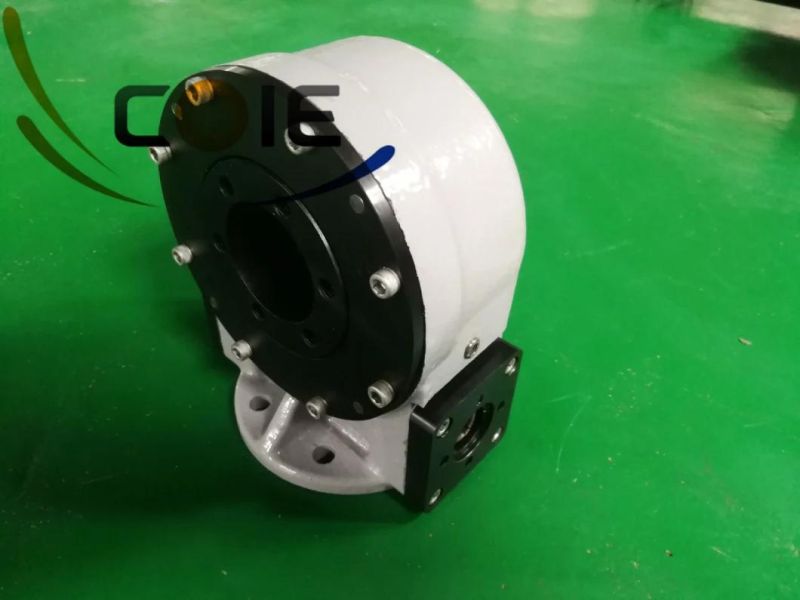

3" Slewing Drive Production Photo

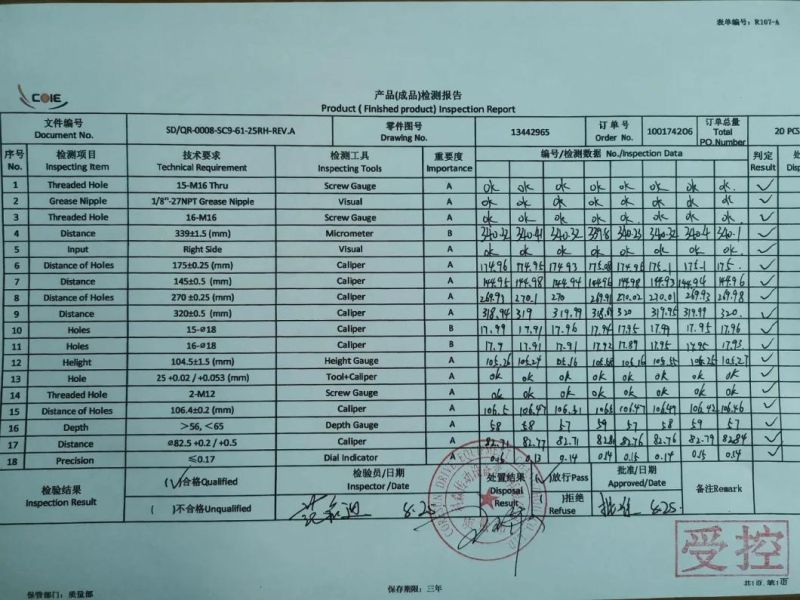

Coresun Drive's slewing drive gearbox slewing ring slewing bearing with 100% full Inspection process and inspection report to ensure the quality.
