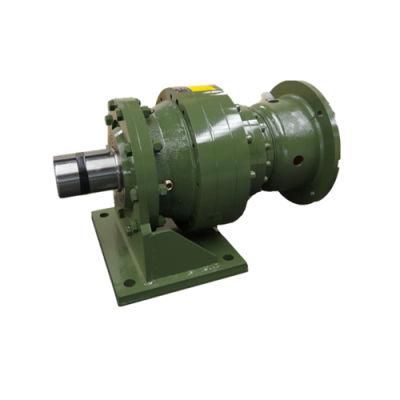

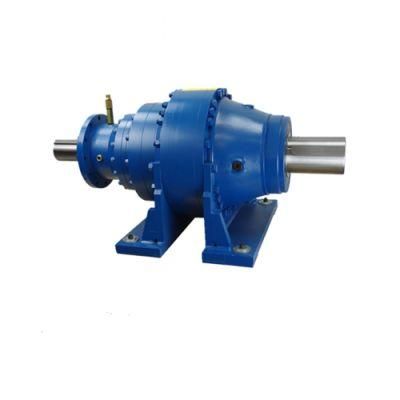

High Torque Low Speed Planetary Cycloidal Pinwheel Speed Reducer

Guangdong Lingyi Industrial Technology Co., Ltd.
  • Application：Machinery, Industry
  • Hardness：Soft Tooth Surface
  • Installation：Horizontal Type
  • Layout：Cycloidal
  • Gear Shape：Bevel Gear
  • Step：Single-Step

Base Info

  • Model NO.：BWD5
  • Type：Circular Gear
  • Single-Stage Transmission Ratio：7 - 87
  • Twin-Stage Transmission Ratio：99 - 7569
  • Combination of Multi-Stage Transmission：8041 - 658503
  • Single-Stage Transmission Efficiency：0.85
  • Win-Stage Transmission Efficiency：0.72
  • Material：Cast Iron
  • Manipulate Way：Robotics
  • Manufacturing Method：Cast Gear
  • Toothed Portion Shape：Planetary
  • Changes Way：Planetary
  • Transport Package：Plywood
  • Origin：Jiangsu
  • HS Code：8483409000
  • Production Capacity：200000set,Year

Description

ModelPower P(kW)ratio
(i)Rotate speed
N(RPM)Output torque
 T (N. m)09#-9#0.12 - 907 -65000017-155top to 30000
High Torque Low Speed Planetary Cycloidal Pinwheel Speed Reducer

Features

- Highly Standard Modular Designed
-  Quality material ensures the product reliability
-  High Strength,Compact Dimension
-  Long Service Life
-  Low Noise
-  High Efficiency
-  Large radial loading ability
-  Axial load ability of up to 5% of radial load

Application examples

-  Belt conveyor drives
-  Bucket elevator drives
-  Agitator drives
-  Hoisting gear drives
-  Travelling gear drives
-  Paper machine drives
-  Dryer drives
-  Water screw drives

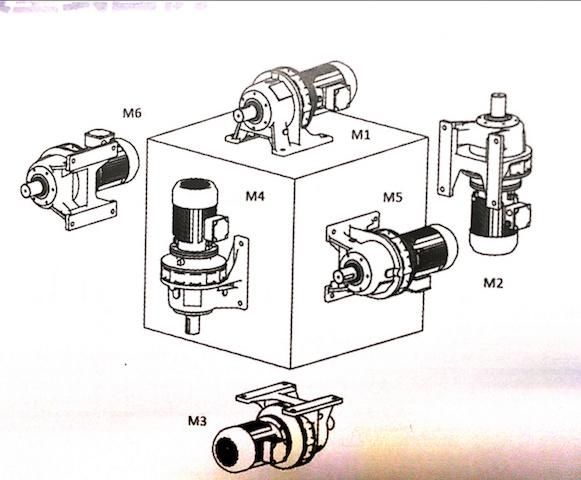

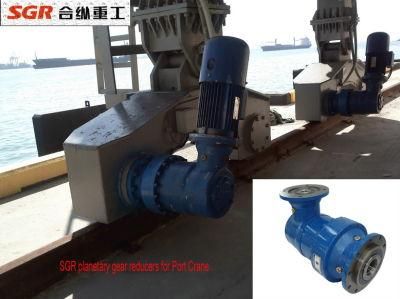

Installation
High Torque Low Speed Planetary Cycloidal Pinwheel Speed Reducer

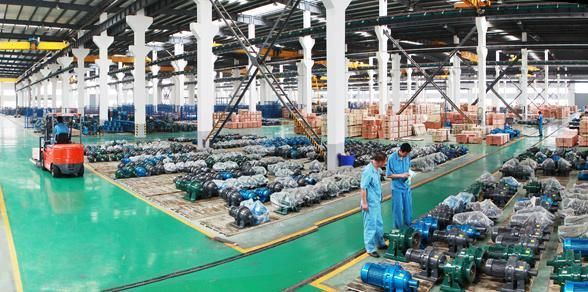

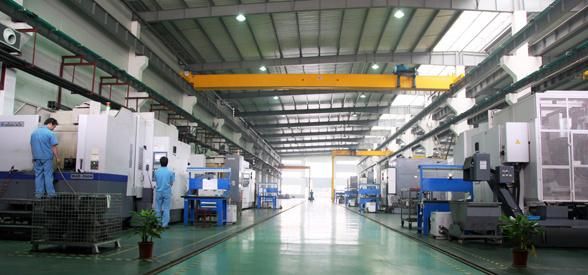

Plant
High Torque Low Speed Planetary Cycloidal Pinwheel Speed Reducer
High Torque Low Speed Planetary Cycloidal Pinwheel Speed Reducer
Office Block
High Torque Low Speed Planetary Cycloidal Pinwheel Speed Reducer
Team
High Torque Low Speed Planetary Cycloidal Pinwheel Speed Reducer
