8000 Series Cycloidal Speed Reducer, High Torque Low Speed Reduction

Guangdong Lingyi Industrial Technology Co., Ltd.
  • Application：Machinery, Industry
  • Hardness：Soft Tooth Surface
  • Installation：Horizontal Type
  • Layout：Cycloidal
  • Gear Shape：Bevel Gear
  • Step：Single-Step

Base Info

  • Model NO.：XWD
  • Type：Circular Gear
  • Single-Stage Transmission Ratio：7 - 87
  • Twin-Stage Transmission Ratio：99 - 7569
  • Combination of Multi-Stage Transmission：8041 - 658503
  • Single-Stage Transmission Efficiency：0.85
  • Win-Stage Transmission Efficiency：0.72
  • Material：Cast Iron
  • Manipulate Way：Robotics
  • Manufacturing Method：Cast Gear
  • Toothed Portion Shape：Planetary
  • Changes Way：Planetary
  • Transport Package：Plywood
  • Origin：Jiangsu
  • HS Code：8483409000
  • Production Capacity：200000set,Year

Description

ModelPower P(kW)ratio
(i)Rotate speed
N(RPM)Output torque
 T (N. m)09#-9#0.12 - 907 -65000017-155top to 30000

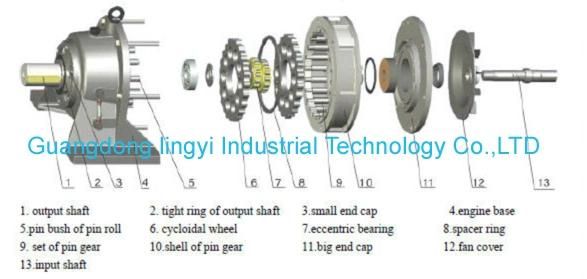

8000 Series Cycloidal Speed Reducer, High Torque Low Speed Reduction

Features

- Highly Standard Modular Designed
-  Quality material ensures the product reliability
-  High Strength,Compact Dimension
-  Long Service Life
-  Low Noise
-  High Efficiency
-  Large radial loading ability
-  Axial load ability of up to 5% of radial load

Application examples

-  Belt conveyor drives
-  Bucket elevator drives
-  Agitator drives
-  Hoisting gear drives
-  Travelling gear drives
-  Paper machine drives
-  Dryer drives
-  Water screw drives

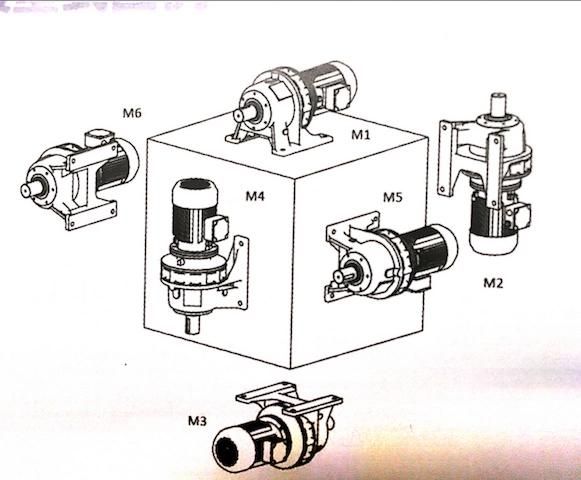

Installation
8000 Series Cycloidal Speed Reducer, High Torque Low Speed Reduction

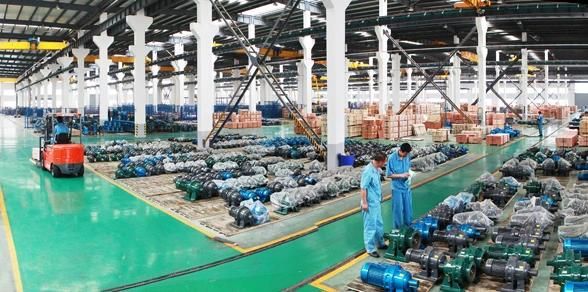

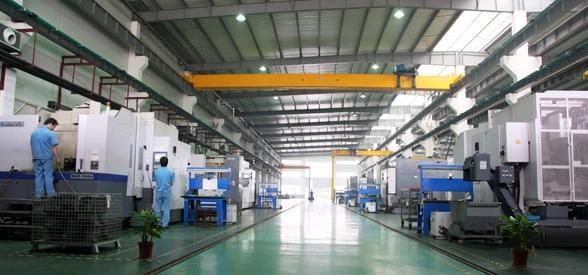

Plant
8000 Series Cycloidal Speed Reducer, High Torque Low Speed Reduction
8000 Series Cycloidal Speed Reducer, High Torque Low Speed Reduction
Office Block
8000 Series Cycloidal Speed Reducer, High Torque Low Speed Reduction
Team
8000 Series Cycloidal Speed Reducer, High Torque Low Speed Reduction
