• Model NO.：NY201
• Color：as Shown in Figure
• Manufacturing Method：Rolling Gear
• Toothed Portion Shape：Spur Gear
• Transport Package：Wooden Cases or According to Your Requirements
• Specification：ISO9001
• Trademark：advance
• Origin：Zhejiang China
• HS Code：8483409000
• Production Capacity：1000 PCS, Year

Basic Info.

Model NO. NY201 Color as Shown in Figure Manufacturing Method Rolling Gear Toothed Portion Shape Spur Gear Transport Package Wooden Cases or According to Your Requirements Specification ISO9001 Trademark advance Origin Zhejiang China HS Code 8483409000 Production Capacity 1000 PCS/ Year

Product Description

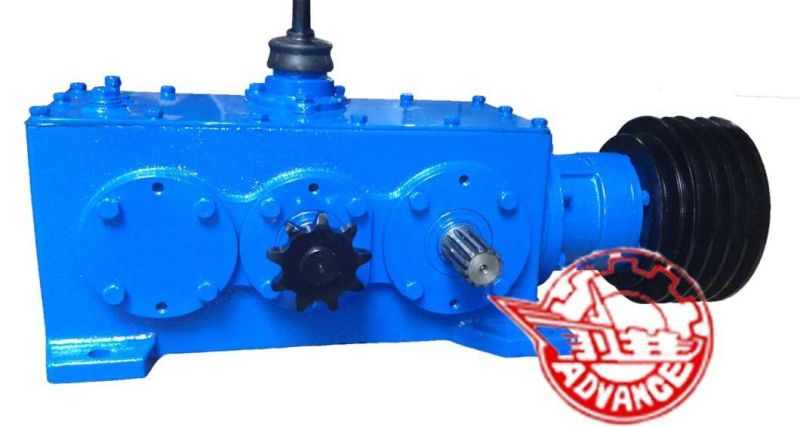

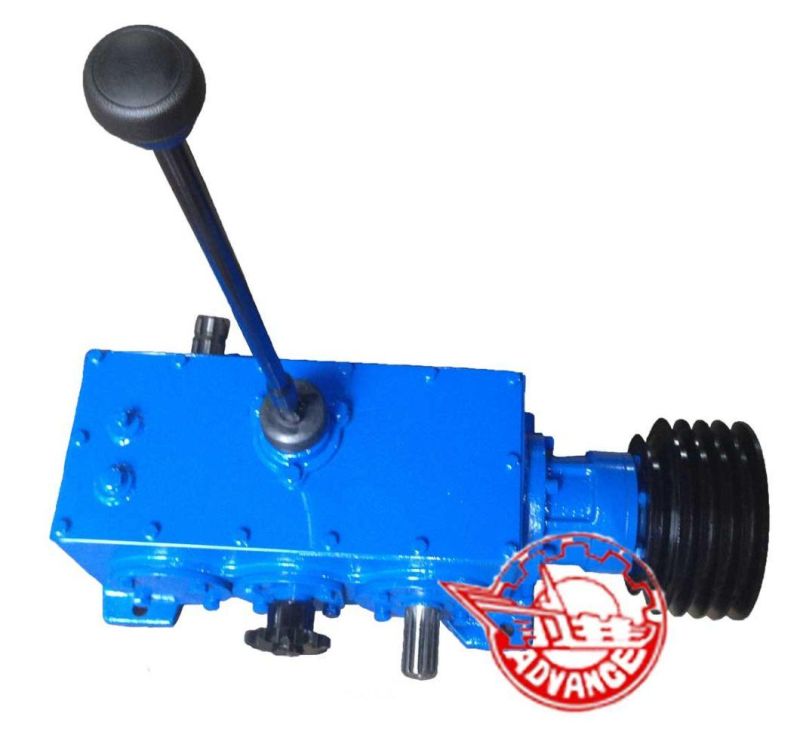

 NY201 Gearbox for Corn Harvester MachineryTechnology Specifications :
1.Input Power :56Kw
2.Input Speed :2600r/min
3.Transmit Ratio:
       Belt Wheel :1.227
        Chain Wheel Output :1.478
        Spline Output :2. 513
4.Lubricating Oil Grade : extreme pressure gear oil L-CK220 or L-CK320
5.Lubricating Oil Capacity: ≈3300mL
6 Max Oil Temperature of stable work.:≤85ºC
7.Control : The corresponding output of chain wheel and spline were realized by the operating handle drive gear and gear meshing,
8.Net Weight :≈80kgs
9. Exterior Colour :Blue

ADVANCE Introduction :
Hangzhou Advance Gearbox Group Co., Ltd ,which was founded in 1960 and a official enterprise with an excellent reputation oversea through the service to our customers in high-quality products with a good price .We are a leading Co in China specialized in all kinds of gearboxes and transmission . ADVANCE brand products are widely used in more than 50 countries and are widely matched the construction machinery: like XCMG, DEGONG, SDLG, FOTON, ZOOMLION, CHANGLIN,DOOSAN, TIANGONG, YITO, YUTONG, JUNLIAN and so on. We can supply all kinds of Construction machinery Fittings, like hydraulic pump, filter, friction plate, torque converter and marine fittings,like sea water pump ,water cooler ,control box&cabel and so on.

Our construction machinery transmission including:

Based on ZF license products:WG180,WG181 more than 100 products type for different brand machinery: wheel loader, grader, compactor, truck crane...

Based on ZF technology, designed by ADVANCE :YD13, for 3tons loader, or for grader;

Based on Komatsu drawing:D65,D85,D155(TY320),TY230 series,for bulldozer

Designed by ADVANCE:BS428(ZL20),for 3tons loader
ZL50,for 5 tons loader
ZL60,for 6 tons loader
YB310,for 8 tons loader

ADVANCE  insists on a mutural beneficial cooperation with our partner and provide better after-sales service. Cooperate with us ,you will gain better developing foreground.
