Src Series Helical Gearbox Speed Reducer with Motor

Taizhou Sihai Machinery Co., Ltd.
  • Application：Motor, Electric Cars, Motorcycle, Machinery, Marine, Toy, Agricultural Machinery, Car
  • Hardness：Hardened Tooth Surface
  • Gear Position：External Gear
  • Manufacturing Method：Cast Gear
  • Toothed Portion Shape：Double Helical Gear
  • Material：Cast Iron

Base Info

  • Model NO.：SRC
  • Type：Worm And Wormwheel
  • Transport Package：1 PC,Carton; Several Cartons,Wooden Case
  • Specification：5kg~~80kg
  • Trademark：Chenxin
  • Origin：China
  • HS Code：8483409000
  • Production Capacity：5000piecs,Months

Description

Basic Info.

Model NO. SRC Type Worm And Wormwheel Transport Package 1 PC/Carton; Several Cartons/Wooden Case Specification 5kg~~80kg Trademark Chenxin Origin China HS Code 8483409000 Production Capacity 5000piecs/Months

Product Description

 Technical features:

The high degree of modularity is a design feature of SRC helical gearboxes range. It can be connected respectively with motors such as normal motor, brake motor, explosion-proof motor, frequency conversion motor,

servo motor, IEC motor and so on. This kind of product is widely used in drive fields such as textile, foodstuff, ceramics packing, logistics, plastics and so on. It is possible to set up the version required using flanges or feet.

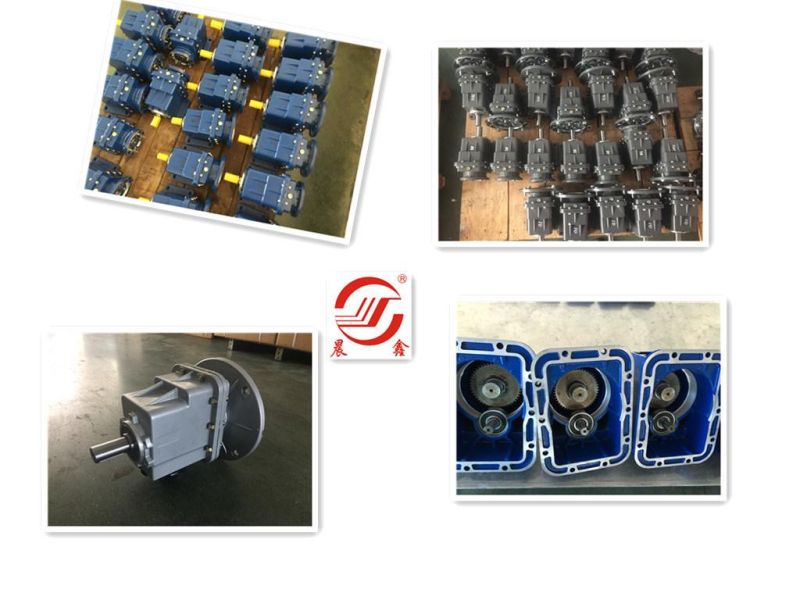

Src Series Helical Gearbox Speed Reducer with Motor

 Characteristics:

SRC series helical gear units has more than 4 types. Power 0.12-4kw; Ratio 3.66-54; Torque max 120-500Nm. It can be connected (foot or flange) discretionary and use multi-mounting positions according to customers requirements.



1.Ground-hardened helical gears;

2.Modularity,can be combined in many forms;

3.Aluminium casing, light weight;

4.Gears in carbonize hard, durable;

5.Universal mounting;

6.Refined design,space effective and low noise
