• Model NO.：WSS
• Material：40cr
• Type：Universal Coupling
• Terms of Shipment：by Sea
• Delivery Time：Depend on Your Quantity
• Length Compensation：Telescoped
• Transport Package：Depend on Your Quantity
• Specification：as your requirement
• Trademark：Huading
• Origin：China
• HS Code：8483600
• Production Capacity：10000pieces,Year

Basic Info.

Model NO. WSS Material 40cr Type Universal Coupling Terms of Shipment by Sea Delivery Time Depend on Your Quantity Length Compensation Telescoped Transport Package Depend on Your Quantity Specification as your requirement Trademark Huading Origin China HS Code 8483600 Production Capacity 10000pieces/Year

Product Description

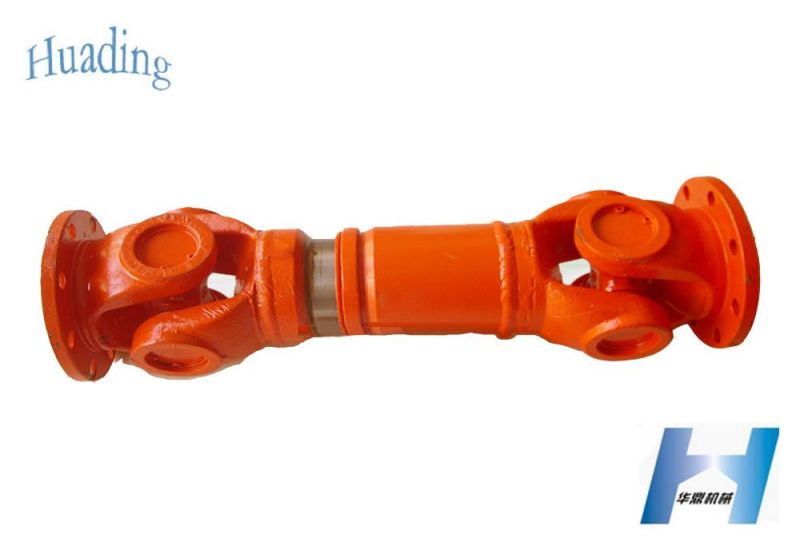

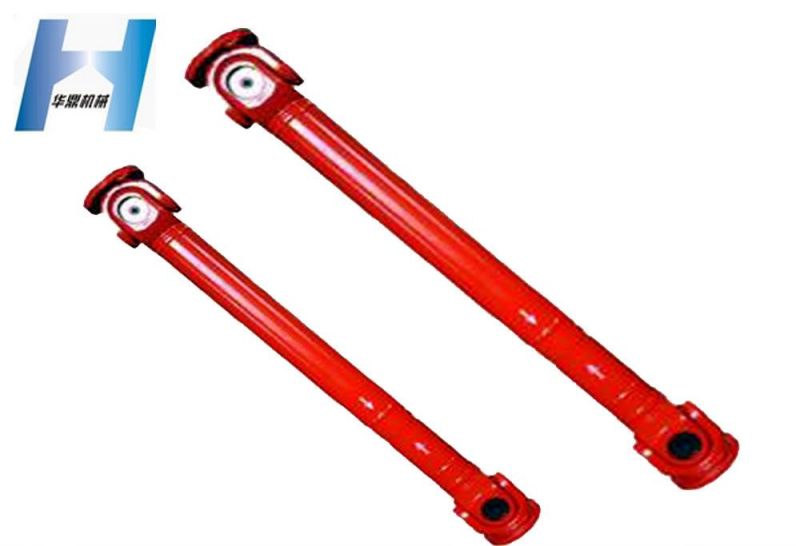

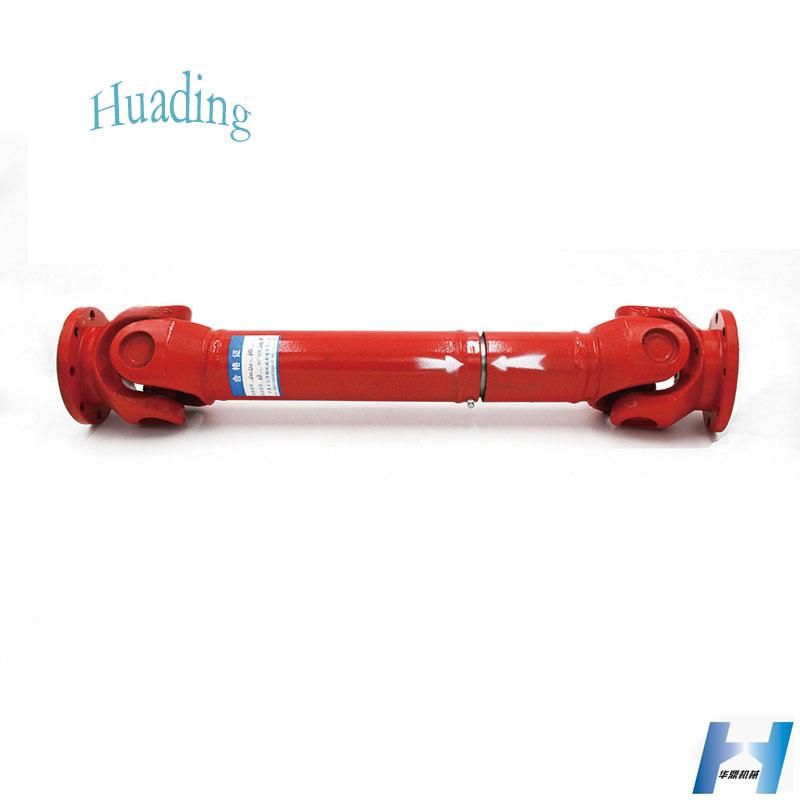

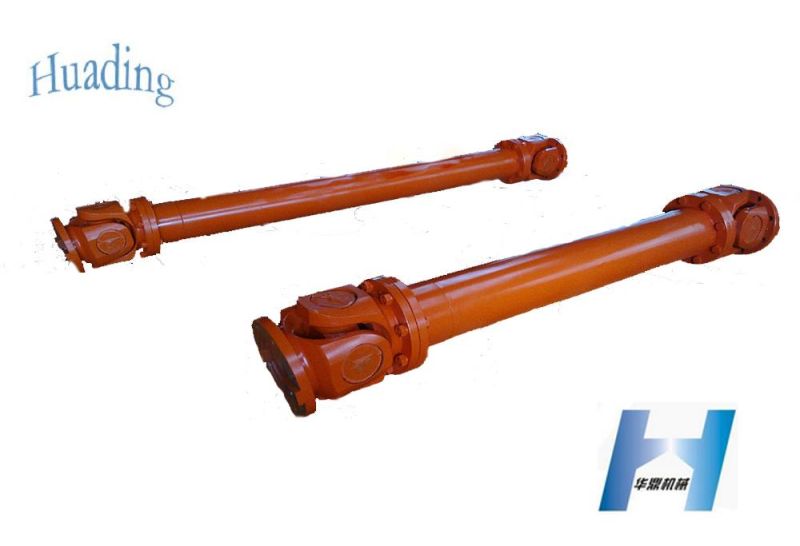

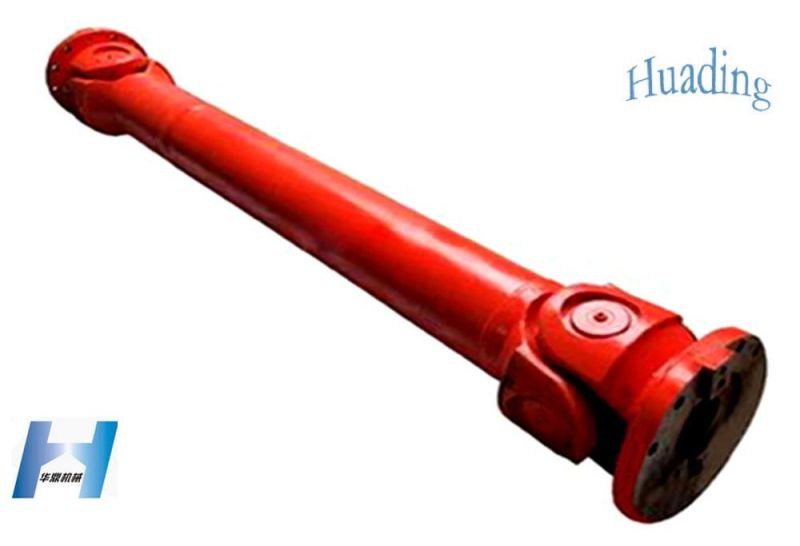

Gimbal flexible cardan shaft coupling(WSS)
Features:
1. It is suitable for transmission coupling space on the same plane of two axis angle beta β≤45°, the nominal torque transmission 11.2-1120N.
2.The WSD type is a single cross universal coupling, and the WS type is a double cross universal coupling, the WSS type is a telescopic universal coupling.
3.Each section between the largest axis angle 45º.
4.The finished hole H7, according to the requirements of keyseating, six square hole and square hole.
5.The angle between the two axes is allowed in a limited range as the work requirements change.



Model	Tn    N.m	D	d	Lo min	L	L1	L2	S
WSS2	22.4	20	12	176	22	32	112	30
WSS3	45	25	14	200	27	40	129	30
WSS4	71	32	18	243	30	46	151	35
WSS5	140	40	22	287	38	58	171	43
WSS6	280	50	28	337	44	69	199	50
WSS7	560	60	35	428	60	91	246	65
WSS8	1120	75	42	556	84	122	322	90


Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Our Services
24 hours online service
Enquiry will be replied in 2 hours
Factory Address:
No. 11, Fuyang Road, ChengNan Industrial Park, Jingjiang, Taizhou, Jiangsu, China
FAQ
1. Are you a manufacturer?
We are a professional manufacturer specializing in manufacturing cardan shaft and various series of couplings. We supply couplings for the wholesalers and dealers from different countries.
2. Can you do OEM?
 Yes, we can. We can do OEM & ODM for all the customers with customized artworks of PDF or AI format.
3. How does your factory do regarding quality control?
Quality is priority! We always attach great importance to quality controlling from the very beginning to the very end:
1) Firstly, we have specialized QC department to control the quality, and we also accept the third official government to inspect the cargoes before delivery.
2) Secondly, we have all detailed records for nonconformity products, then we will make summary according to these records, avoid it happen again.
3) Thirdly, We do observe the relevant codes of conduct & laws from government in environment, human right aspects like no children labor, no prisoner labor and so on.
 4. How can I get samples?
We are appreciated that new clients pay for the express fee for samples and this charge will be deducted once orders are released.

Welcome to customize products from our factory and please provide your
design drawings or contact us if you need other requirements.

Thanks.
