Dlz1-40 24VDC Electromagnetic Brake for Transaxle

Changzhou Suma Precision Machinery Co., Ltd.
  • Standard or Nonstandard：Standard
  • Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Mining Equipment, Agricultural Machinery
  • Surface Treatment：Other
  • Material：Steel
  • Product Name：Electromagnetic Clutch
  • Type：Electromagnetic Clutch

Base Info

  • Model NO.：DLZ1-40
  • OEM：Accept
  • Market：Global
  • Transport Package：Single Box or as Your Requirements
  • Specification：P0
  • Trademark：SUMA
  • Origin：Changzhou, Jiangsu, China
  • HS Code：84836000
  • Production Capacity：1000PCS,Month

Description

SIZErated dymanic torqueN.mrated voltage (DC V)coil consumption power(20°)Wallowed max revolvtion(r/min) ClutchBrakeDLZ1-25250824812500DLZ1-404001201152500DLZ1-50500901371500DLZ1-808001201311500



SIZERadial Demensions(mm)Axial Demensions(mm)Demensions of the shaft holeBrush ModelD1D2D3D4D5D6JKLL1L2L3L4δΦehDLZ1-25285247200155180458-SIZERadial Demensions(mm)Axial Demensions(mm)D1D2D3D4D5kLL1L2L3L4δDLZ1-503502371882241206-Φ1212210573430.5DLZ1-804022421942801656-Φ13.5138.5115.594.5460.6

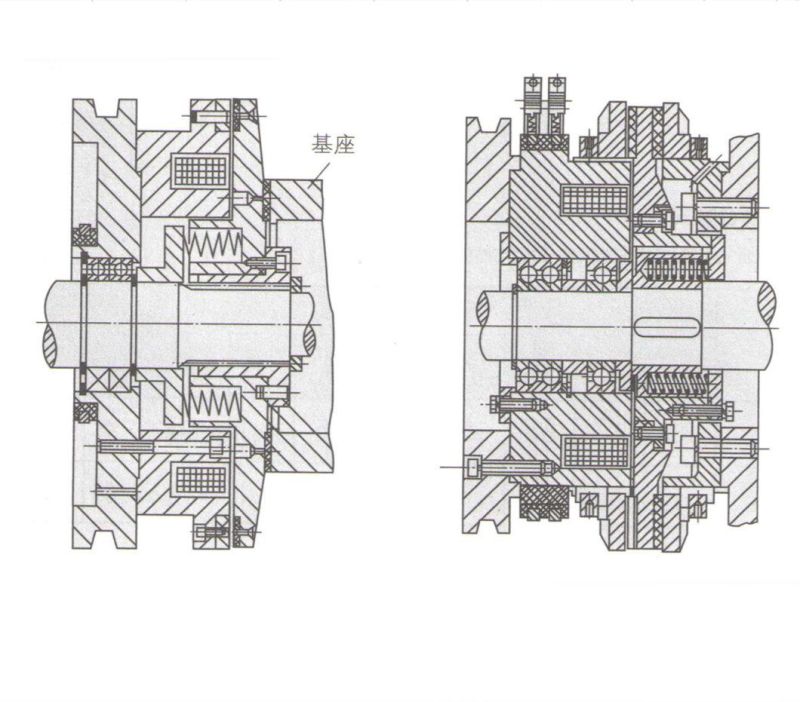

Mounting Example:
Dlz1-40 24VDC Electromagnetic Brake for Transaxle

Dlz1-40 24VDC Electromagnetic Brake for Transaxle
Dlz1-40 24VDC Electromagnetic Brake for TransaxleDlz1-40 24VDC Electromagnetic Brake for Transaxle
