Dly3-200A Electromagnetic Clutch 24V

Changzhou Suma Precision Machinery Co., Ltd.
  • Standard or Nonstandard：Standard
  • Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Mining Equipment, Agricultural Machinery
  • Surface Treatment：Other
  • Material：Steel
  • Product Name：Electromagnetic Clutch
  • Type：Electromagnetic Clutch

Base Info

  • Model NO.：DLY3-200A
  • OEM：Accept
  • Market：Global
  • Transport Package：Single Box or as Your Requirements
  • Specification：P0
  • Trademark：SUMA
  • Origin：Changzhou, Jiangsu, China
  • HS Code：84836000
  • Production Capacity：1000PCS,Month

Description

SIZERadial Demensions(mm)Axial Demensions(mm)D1D2D3D4D5D6D7Φ1Φ2ΦheLL1L2L3αδDLY3-5A825842363575823-Φ4.53-Φ102022.8655426845°0.3±0.05DLY3-25A115806255551051153-Φ6.53-Φ124043.3127050.851045°0.4±0.1DLY3-40A134957268701271346-Φ8.56-Φ154548.814836171045°0.4±0.1DLY3-63A145957265651271456-Φ8.56-Φ154548.81485.664.551045°0.7±0.1DLY3-100A1661209080851521666-Φ8.56-Φ14.56064.4189568101245°0.7±0.1DLY3-200A210160130951051902106-Φ10.56-Φ188590.42211080101245°0.4±0.05

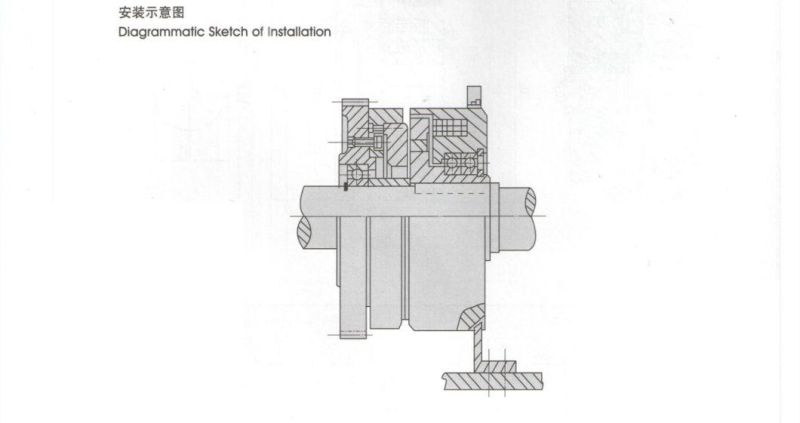

Mounting example:

Dly3-200A Electromagnetic Clutch 24V
Installation:

1.The clutch can be installed either in horizontal or in verial,If it mounted no the alex,the coaxlal degree between the driving and the driven shaft should not exceed 0.05mm,and must ensure the work clearence value σ.

2.The teeth of both ends should be cleaned before mounting the clutch. 3.The driving and the driven parts of the clutch must be fixed in axial direction,its axial moving doesn't permitted.

Dly3-200A Electromagnetic Clutch 24V
Dly3-200A Electromagnetic Clutch 24VDly3-200A Electromagnetic Clutch 24V
