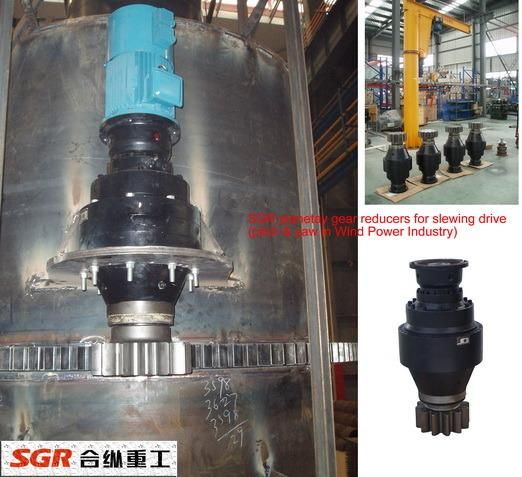

Inline Transmission 3 Stage Planetary Gear Reducer

Shanghai SGR Heavy Industry Machinery Co., Ltd.
  • Application：Motor, Electric Cars, Motorcycle, Machinery, Marine, Toy, Agricultural Machinery, Industry
  • Function：Distribution Power, Clutch, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
  • Layout：Coaxial
  • Hardness：Hardened Tooth Surface
  • Installation：Vertical Type
  • Step：Double-Step

Base Info

  • Model NO.：MN3E241C1T64-MLHR80
  • Type：Circular Gear
  • Diameter：up to 885mm
  • Material：Cast Iron
  • Manipulate Way：Robotics
  • Manufacturing Method：Cut Gear
  • Toothed Portion Shape：Spur Gear
  • Advantage：Planetary Gearbox Price Low Noise for Slew Drive
  • Service Sky-PE：Dennis.Yan99
  • Transport Package：Plywooe Case or Steel Cage
  • Specification：ISO9001: 2008
  • Trademark：SGR
  • Origin：China
  • HS Code：8483409000
  • Production Capacity：400PCS,Month

Description

Basic Info.

Model NO. MN3E241C1T64-MLHR80 Type Circular Gear Diameter up to 885mm Material Cast Iron Manipulate Way Robotics Manufacturing Method Cut Gear Toothed Portion Shape Spur Gear Advantage Planetary Gearbox Price Low Noise for Slew Drive Service Sky-PE Dennis.Yan99 Transport Package Plywooe Case or Steel Cage Specification ISO9001: 2008 Trademark SGR Origin China HS Code 8483409000 Production Capacity 400PCS/Month

Product Description

Vertical Mounted Planetary Gear Reducer Box Technical data:
1. Ratio range: 3.15-9000
2. Input power: 0.25-55KW
3. Permit torque rang: ≤ 800000N. M
4. Output speed: 0.425-445 r/min
5. Structure mode: Possibility of flange, foot, or shaft mounting solutions

Vertical Mounted Planetary Gear Reducer Box Characteristic:
1. Wide and comprehensive range of N series for industrial applications
2. Low speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low speed shaft bearingInline Transmission 3 Stage Planetary Gear Reducer
 Ratio 3.15:1 to 9000:1
 Reduction Stages up to 6 reduction stages in one gearbox
 Nominal Output Torque up to 800,000N.m
