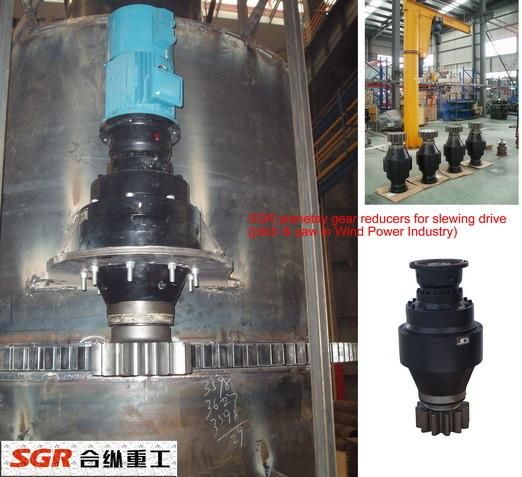

Planetary Gearbox Price Low Noise for Slew Drive

Shanghai SGR Heavy Industry Machinery Co., Ltd.
  • Application：Industry
  • Layout：Coaxial
  • Hardness：Hardened Tooth Surface
  • Installation：Vertical Type
  • Step：Double-Step
  • Type：Circular Gear

Base Info

  • Model NO.：MNC
  • Diameter：up to 885mm
  • Material：Cast Iron
  • Manipulate Way：Robotics
  • Manufacturing Method：Cut Gear
  • Toothed Portion Shape：Spur Gear
  • Advantage：Planetary Gearbox Price Low Noise for Slew Drive
  • Service Sky-PE：Dennis.Yan99
  • Transport Package：Plywooe Case or Steel Cage
  • Specification：ISO9001: 2008
  • Trademark：SGR
  • Origin：China
  • HS Code：8483409000
  • Production Capacity：400PCS,Month

Description

Basic Info.

Model NO. MNC Diameter up to 885mm Material Cast Iron Manipulate Way Robotics Manufacturing Method Cut Gear Toothed Portion Shape Spur Gear Advantage Planetary Gearbox Price Low Noise for Slew Drive Service Sky-PE Dennis.Yan99 Transport Package Plywooe Case or Steel Cage Specification ISO9001: 2008 Trademark SGR Origin China HS Code 8483409000 Production Capacity 400PCS/Month

Product Description

planetary gearbox price low noise for Slew Drive Technical data:
1. Ratio range: 3.15-9000
2. Input power: 0.25-55KW
3. Permit torque rang: ≤ 800000N. M
4. Output speed: 0.425-445 r/min
5. Structure mode: Possibility of flange, foot, or shaft mounting solutions

Planetary gearbox price low noise for Slew Drive Characteristic:
1. Wide and comprehensive range of N series for industrial applications
2. Low speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low speed shaft bearing
Planetary Gearbox Price Low Noise for Slew Drive
 Ratio 3.15:1 to 9000:1
 Reduction Stages up to 6 reduction stages in one gearbox
 Nominal Output Torque up to 800,000N.m
