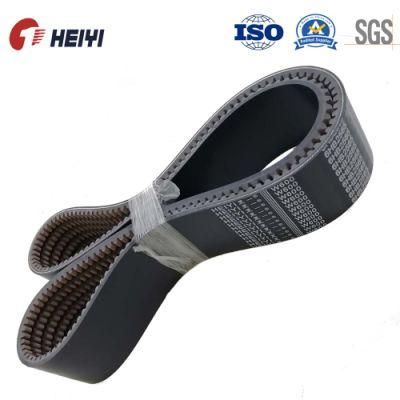

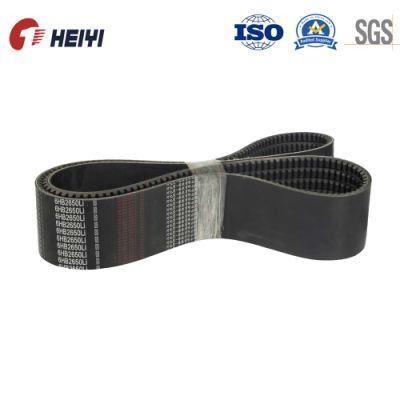

• Model NO.：V belt
• Certification：ISO9001, Ts16949, SGS
• Body Material：EPDM
• Cord/Tension Member：Polyester,Aramid
• Warranty：According to Quality You Demand
• Range：500-5500mm
• OEM：Available
• Transport Package：Plastic Bag,Carton
• Specification：EPDM
• Trademark：HEIYI,SKTOGRL
• Origin：China
• HS Code：40103900
• Production Capacity：100000 Pieces Per Month

Model

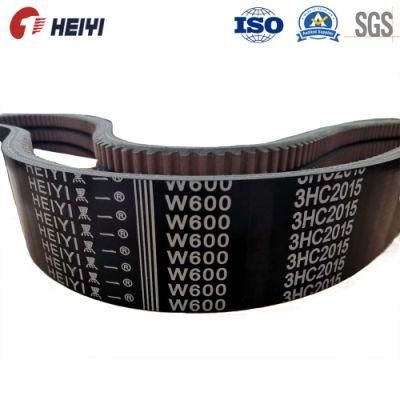

 Top Width(mm)Thickness(mm)Length Range(inch)Length Range(mm)AngleO/AV10*108.519.68"-216.5"500-550040°A/AV13*139.519.68"-216.5"500-550040°B/AV17*171419.68"-216.5"500-550040°C/AV22*221919.68"-216.5"500-550040°SAx/LAx12.58.819.68"-216.5"500-550038°SBx/LBx16.21019.68"-216.5"500-550038°SCx/LCx2111.219.68"-216.5"500-550040°XPA/SPAX12.51019.68"-216.5"500-550040°XPB/SPBX/5V16.21319.68"-216.5"500-550040°XPC/SPCX211519.68"-216.5"500-550040°XPZ/SPZX/3V9.58.819.68"-216.5"500-550040°25N/8V251719.68"-216.5"500-550040°HI251319.68"-216.5"500-550032°HJ/HDJ321819.68"-216.5"500-550032°HD321819.68"-216.5"500-550040°HK382019.68"-216.5"500-550032°HL452419.68"-216.5"500-550032°HM5125.519.68"-216.5"500-550032°HN572619.68"-216.5"500-550032°HO632619.68"-216.5"500-550032°9J-550.11119.68"-216.5"500-550040°9J-660.41119.68"-216.5"500-550040°9J-770.71119.68"-216.5"500-550040°3R-5V5015.219.68"-216.5"500-550040°4R-5V67.515.219.68"-216.5"500-550040°4R-SPA60.81119.68"-216.5"500-550038°2HB351419.68"-216.5"500-550038°3HB541419.68"-216.5"500-550038°4HB72.51419.68"-216.5"500-550038°5HB911419.68"-216.5"500-550038°6HB1101419.68"-216.5"500-550038°2HC47.51619.68"-216.5"500-550038°3HC72.51619.68"-216.5"500-550038°4HC981619.68"-216.5"500-550038°
Other special sizes v belts(such as 36*,45*,68*), banded v belts, flat belts and PK,DPK, PJ, PL,
AA,BB,CC Belts are also available, if you have any need of them, please feel free to contact us. We
will confirm all the details and reply you within 24 hours.

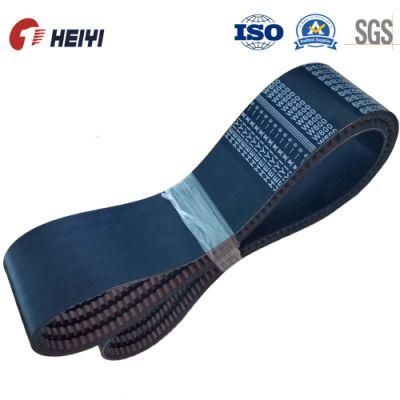

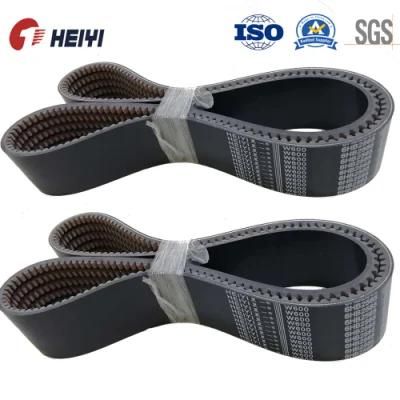

Structure of V Belt

	Function	Material
Tension Member	The treated polyester cord is a low stretch high strength tension member able to withstand shock loads on drives with fixed centers	Polyester/Aramid Fiber
Rubber Ribs/Teeth	Long wearing, oil resistant, fibre-loaded neoprene rubber is used in the ribs to provide support for the tension member and to transmit the loads to the pulley	EPDM
Backing Material	Bias ply type fabric backing resists cracking and provides abrasion resistance	EPDM
Insulation Material	oil and heat resistant rubber is used to bond the tension member to the rest of the belt	EPDM

Teeth part also can be covered with Fabric, if you have any need of it, please do tell us when you placing
the order.

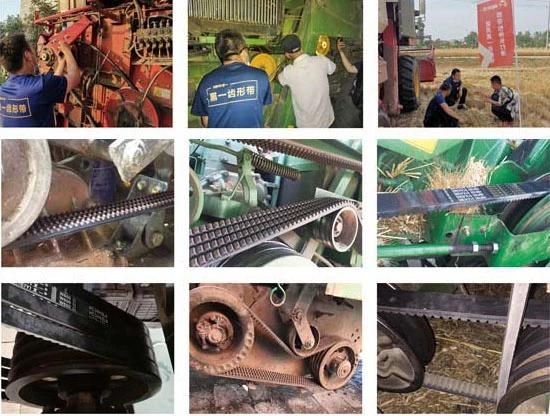

Application

Company Introduction
Hebei Heiyi Rubber Co.,Ltd
Located in a historical and cultural city-Hebei Julu.The company now covers an area of 136 acres,building
area of 66000 square meters,more than 180 employees.

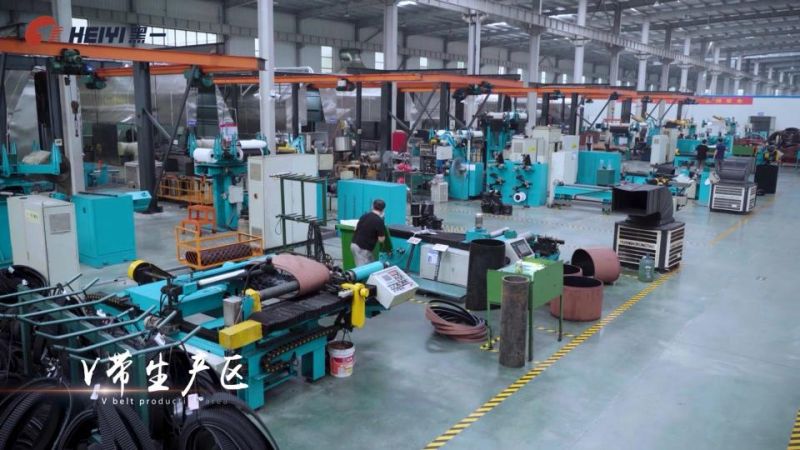

Integrating R&D,production,and sales.Advanced production technology,excellent production equipment
strong technical force.
Production in strict accordance with ISO16949 quality management system.
We have exquiste sales and logistic team in 31 province in china.Also our product had exported to India,Pakistan,Vitnam,Sinapore,Thailand,Germany,Poland,Russia,Australia,Brazil.

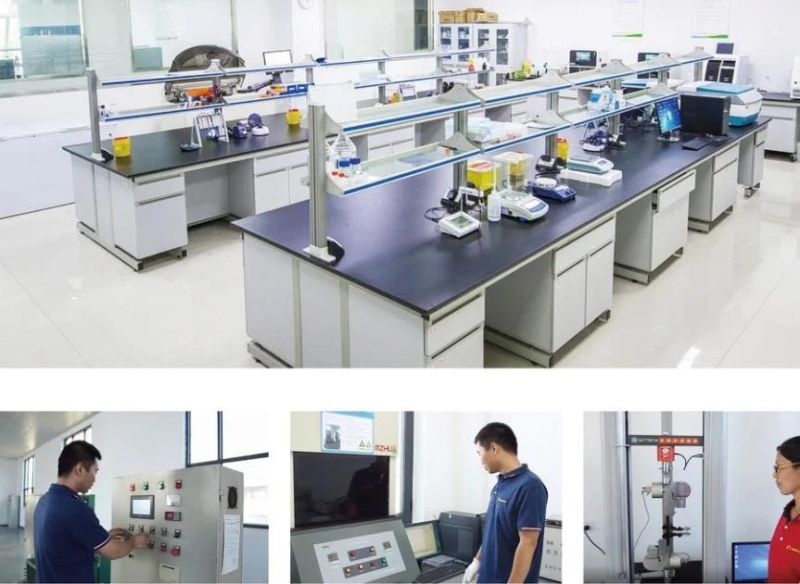

Heiyi Test center

Certification
Honorary qualification of HEIYI rubber co.,ltd.
2011-Advanced work unit
2011-Famous trademark enterprise of Xingtai City
2012-Famous trademark of Hebei Province

2012-Member of China Rubber Industry Association
2013-Hebei Province SME brand-name products
2015-Petroleum and chemical enterprise quality inspection Grade A
2017-Hebei famous brand products
2017-Hebei Province quality products.
2017-High tech enterprise
2018 Hebei province industrial enterprise R&D Organization Grade C.
2018-ISO16949 certification.

Package&Delivery


Our partner

Company: Hebei Heiyi Rubber Co., Ltd
Add: Julu County Industrial Park, Xingtai City, Hebei Province,China
