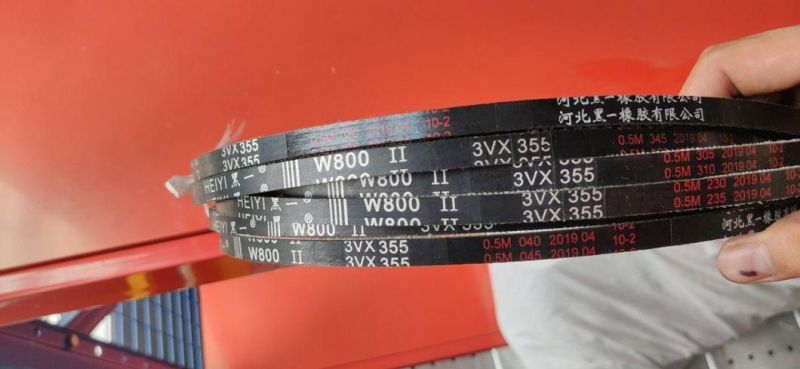

Power Transmission Parts

Kevlar Corded Belt, EPDM Rubber Belt, Factory Directly Supply Belt

He Bei Hei Yi Rubber Co., Ltd.
  • Standard or Nonstandard:Standard
  • Application:Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Motorcycle, Food Machinery, Mining Equipment, Agricultural Machinery, Car
  • Feature:Anti-Static, Cold-Resistant, Heat-Resistant, Skid-Resistance, Wear-Resistant, High Temperature-Resistance
  • Tensile Strength:Strong
  • Material:Rubber
  • Type:V Belt

Base Info

  • Model NO.:V belt
  • Certification:ISO9001, Ts16949, SGS
  • Body Material:EPDM
  • Cord/Tension Member:Polyester,Aramid
  • Warranty:According to Quality You Demand
  • Range:500-5500mm
  • OEM:Available
  • Transport Package:Plastic Bag,Carton
  • Specification:EPDM
  • Trademark:HEIYI,SKTOGRL
  • Origin:China
  • HS Code:40103900
  • Production Capacity:100000 Pieces Per Month

Description


Model
 Top Width(mm)Thickness(mm)Length Range(inch)Length Range(mm)AngleO/AV10*108.519.68"-216.5"500-550040°A/AV13*139.519.68"-216.5"500-550040°B/AV17*171419.68"-216.5"500-550040°C/AV22*221919.68"-216.5"500-550040°SAx/LAx12.58.819.68"-216.5"500-550038°SBx/LBx16.21019.68"-216.5"500-550038°SCx/LCx2111.219.68"-216.5"500-550040°XPA/SPAX12.51019.68"-216.5"500-550040°XPB/SPBX/5V16.21319.68"-216.5"500-550040°XPC/SPCX211519.68"-216.5"500-550040°XPZ/SPZX/3V9.58.819.68"-216.5"500-550040°25N/8V251719.68"-216.5"500-550040°HI251319.68"-216.5"500-550032°HJ/HDJ321819.68"-216.5"500-550032°HD321819.68"-216.5"500-550040°HK382019.68"-216.5"500-550032°HL452419.68"-216.5"500-550032°HM5125.519.68"-216.5"500-550032°HN572619.68"-216.5"500-550032°HO632619.68"-216.5"500-550032°9J-550.11119.68"-216.5"500-550040°9J-660.41119.68"-216.5"500-550040°9J-770.71119.68"-216.5"500-550040°3R-5V5015.219.68"-216.5"500-550040°4R-5V67.515.219.68"-216.5"500-550040°4R-SPA60.81119.68"-216.5"500-550038°2HB351419.68"-216.5"500-550038°3HB541419.68"-216.5"500-550038°4HB72.51419.68"-216.5"500-550038°5HB911419.68"-216.5"500-550038°6HB1101419.68"-216.5"500-550038°2HC47.51619.68"-216.5"500-550038°3HC72.51619.68"-216.5"500-550038°4HC981619.68"-216.5"500-550038°
Other special sizes v belts(such as 36*,45*,68*), banded v belts, flat belts and PK,DPK, PJ, PL,
AA,BB,CC Belts
are also available, if you have any need of them, please feel free to contact us. We
will confirm all the details and reply you within 24 hours.

Kevlar Corded Belt, EPDM Rubber Belt, Factory Directly Supply Belt

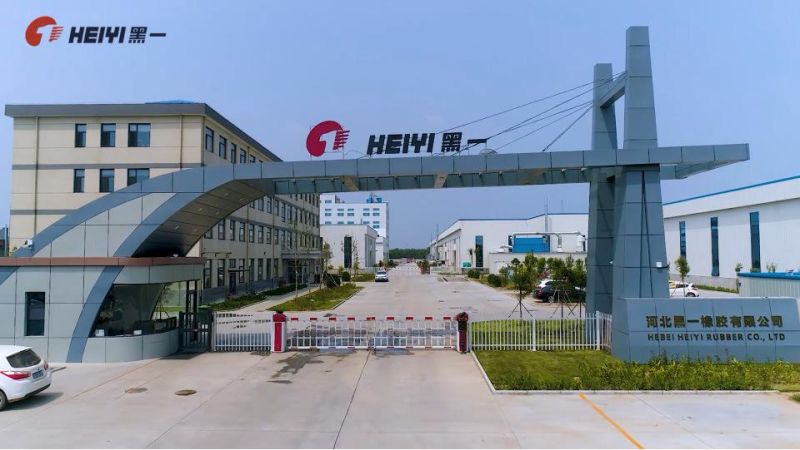

Factory Gate

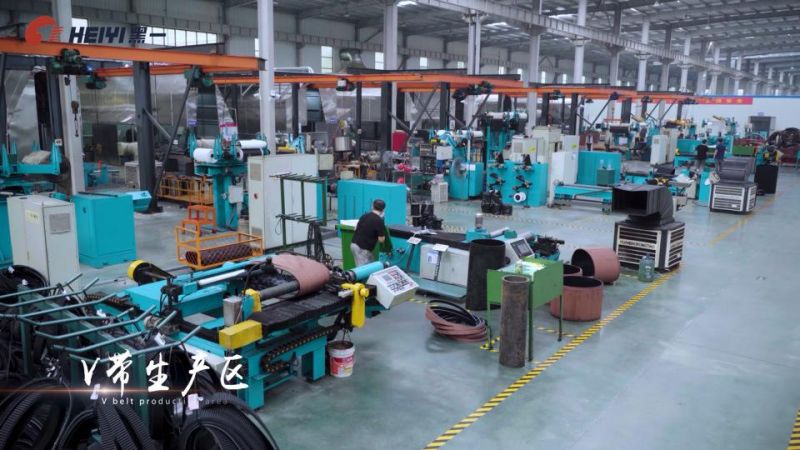

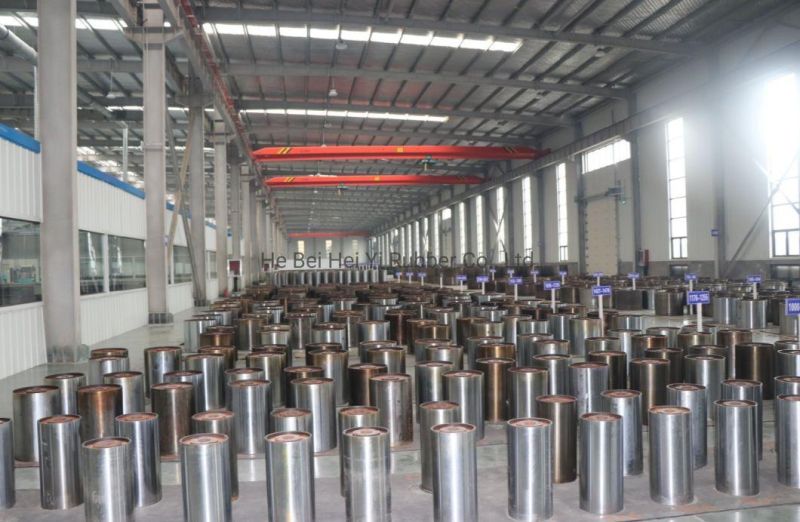

Kevlar Corded Belt, EPDM Rubber Belt, Factory Directly Supply BeltProduct manufacture availability:
We have thousands of pattern in full size,can meet our customer's different demands.
Kevlar Corded Belt, EPDM Rubber Belt, Factory Directly Supply Belt

Our team
Kevlar Corded Belt, EPDM Rubber Belt, Factory Directly Supply Belt Structure of V Belt


FunctionMaterial
Tension
Member
The treated polyester cord is a low stretch high
strength tension member able to withstand shock
loads on drives with fixed centers
Polyester/Aramid Fiber
Rubber
Ribs/Teeth
Long wearing, oil resistant, fibre-loaded neoprene
rubber is used in the ribs to provide support for the
tension member and to transmit the loads to the pulley
EPDM
Backing
Material
Bias ply type fabric backing resists cracking and
provides abrasion resistance
EPDM
Insulation
Material
oil and heat resistant rubber is used to bond the
tension member to the rest of the belt
EPDM
Teeth part also can be covered with Fabric, if you have any need of it, please do tell us when you placing
the order.

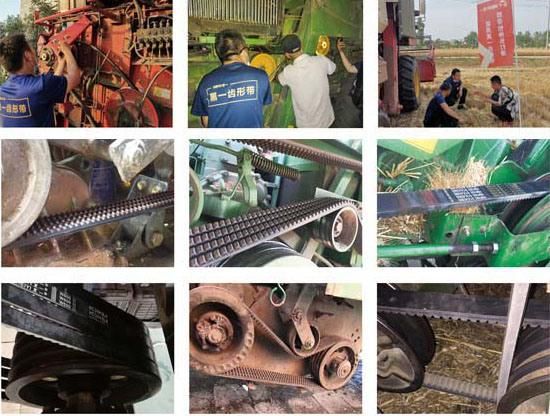

Application
Kevlar Corded Belt, EPDM Rubber Belt, Factory Directly Supply Belt
Company Introduction
Hebei Heiyi Rubber Co.,Ltd
Located in a historical and cultural city-Hebei Julu.The company now covers an area of 136 acres,building
area of 66000 square meters,
more than 180 employees.
Integrating R&D,production,and sales.Advanced production technology,excellent production equipment
strong technical force.

Production in strict accordance with ISO16949 quality management system.
We have exquiste sales and logistic team in 31 province in china.Also our product had exported to India,Pakistan,Vietnam,Sinapore,Thailand,Germany,Poland,Russia,Australia,Brazil.

Kevlar Corded Belt, EPDM Rubber Belt, Factory Directly Supply Belt
Kevlar Corded Belt, EPDM Rubber Belt, Factory Directly Supply Belt

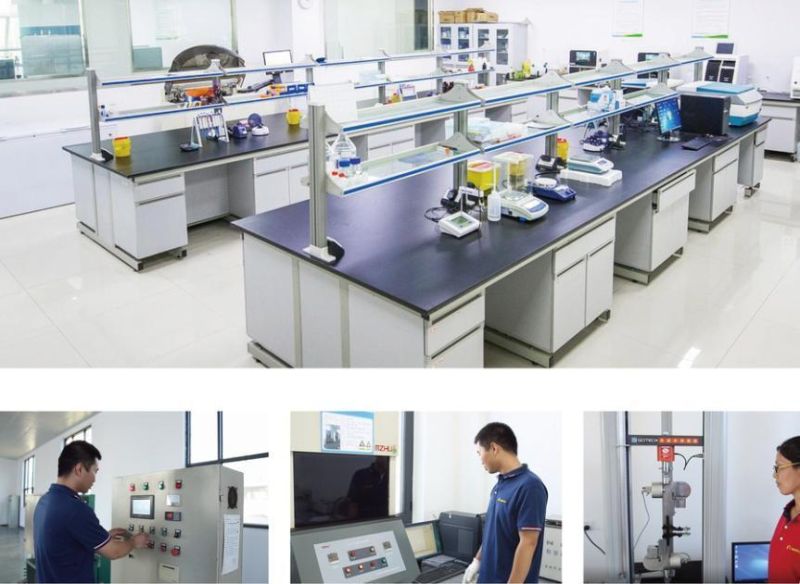

Heiyi Test center
Kevlar Corded Belt, EPDM Rubber Belt, Factory Directly Supply Belt
Certification
Honorary qualification of HEIYI rubber co.,ltd.
2011-Advanced work unit
2011-Famous trademark enterprise of Xingtai City
2012-Famous trademark of Hebei Province
2012-Member of China Rubber Industry Association
2013-Hebei Province SME brand-name products
2015-Petroleum and chemical enterprise quality inspection Grade A
2017-Hebei famous brand products
2017-Hebei Province quality products.
2017-High tech enterprise
2018 Hebei province industrial enterprise R&D Organization Grade C.
2018-ISO16949 certification.Kevlar Corded Belt, EPDM Rubber Belt, Factory Directly Supply Belt

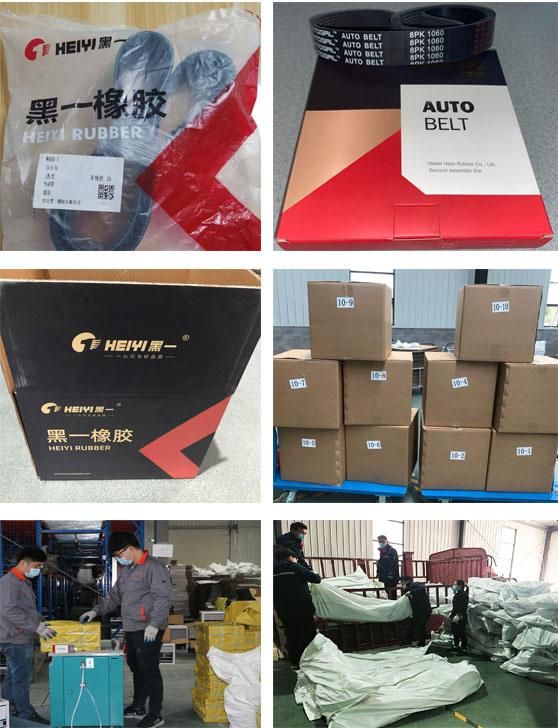

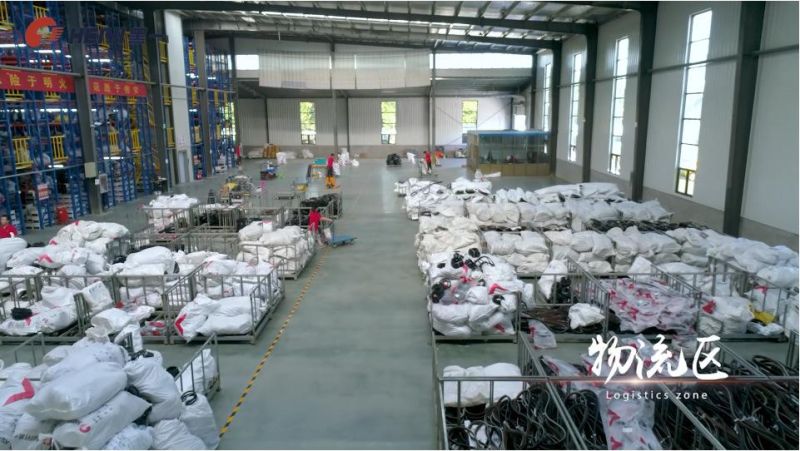

Package&Delivery
Kevlar Corded Belt, EPDM Rubber Belt, Factory Directly Supply Belt
Kevlar Corded Belt, EPDM Rubber Belt, Factory Directly Supply Belt
Our partner

Kevlar Corded Belt, EPDM Rubber Belt, Factory Directly Supply Belt
Company: Hebei Heiyi Rubber Co., Ltd
Add: Julu County Industrial Park, Xingtai City, Hebei Province,China
