Double-Sided Timing Belt Synchronous
NINGBO HIPOWER TRANSMISSION CO., LTD.- Standard or Nonstandard：Standard
- Application：Electric Cars, Motorcycle, Car
- Feature：Wear-Resistant, High Temperature-Resistance
- Tensile Strength：Strong
- Material：Rubber
- Type：Toothed Belt
Base Info
- Model NO.：D-XL
- Transport Package：Plastic Bag, Carton
- Specification：HTD-755-5M
- Trademark：GPBELT
- Origin：China
- HS Code：40103900
- Production Capacity：50000PCS,Day
Description
Basic Info.
Model NO. D-XL Transport Package Plastic Bag/ Carton Specification HTD-755-5M Trademark GPBELT Origin China HS Code 40103900 Production Capacity 50000PCS/DayProduct Description
DOUBLE-SIDED TIMING BELTFeature

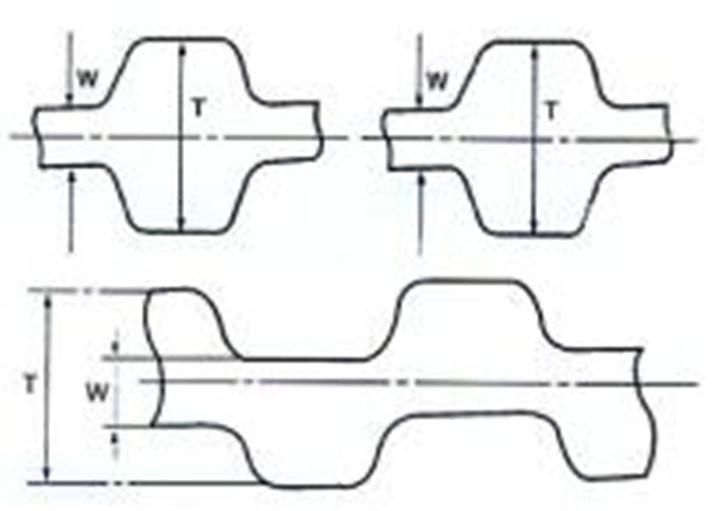

The teeth data of double-sided timing belt are equivalent to single-sided timing belt. According to the teeth arrangement standard, it can be divided into two types: DA-duplex belts with two symmetrical teeth and DB-duplex belts with staggered teeth on two locations.
Parameter
| Type | W | T | SIZE | Pitch length mm | Teeth no. |
| D-XL | 0.508 | 3.05 | 196XL-1970XL | 497.84-5003.8 | 98-985 |
| D-L | 0.762 | 4.58 | 203L-1988L | 514.35-5048.25 | 54-530 |
| D-H | 1.372 | 5.95 | 670H-2500H | 1701.8-6350 | 124-500 |
| D-XH | 2.794 | 15.49 | 700XH-2275XH | 1778-5778.5 | 80-260 |
| D-XXH | 3.048 | 22.11 | 700XXH-2625XXH | 1778-6667.5 | 56-210 |
| D-T2.5 | 0.6 | 2.0 | T2.5*500-*5000 | 500-5000 | 200-2000 |
| D-T5 | 1.0 | 3.4 | T5*500-*7000 | 500-7000 | 100-1400 |
| D-T10 | 2.0 | 7.0 | T10*500-*7050 | 500-7050 | 50-705 |
| D-T20 | 3.0 | 13 | T20*1700-*7000 | 1700-7000 | 85-350 |
| D-AT10 | 2.0 | 7 | AT10*500-*7000 | 500-7000 | 50-700 |
| HTD-DA-3M | 0.76 | 3.1 | 3M-501-5010 | 501-5010 | 167-1670 |
| HTD-DA-5M | 1.143 | 5.26 | 5M-500-7000 | 500-7000 | 50-1400 |
| HTD-DA-8M | 1.372 | 8.17 | 8M-512-6880 | 512-6880 | 64-860 |
| HTD-DA-14M | 2.8 | 14.84 | 14M-1750-6860 | 1750-6860 | 125-490 |
| HTD-DA-S8M | 1.372 | 7.48 | S8M-512-6880 | 512-6880 | 64-860 |
Marking
DA-400XL-050 means that DA type is of double sided toothed. 400 is the belt length, and 050 means 0.5inch width.
FAQ
Q1. Can I have a sample order?
Yes, any sample order is welcome to know the quality of our products.
Q2. What about the lead time of the sample or the final order?
2-5 days for normal sample.
20-30 days for a formal order.
Q3. How much is the minimum quantity for each item in one order?
One mould quantity is ok. Usually around 50pcs for small item, 10 pcs for big item.
Q4. Is it possible to print our logo or brand on the belt?
Yes, we can print your logo or design on the belt after receipt of your formal authorization letter of the logo or your brand.
Q5. Do you offer the guarantee for your product?
Yes, usually we offer one year warranty for all of our products.
