High Quality Pk Dpk Pj Poly V Ribbed Multi Rib Rubber Auto Driving Fan Engine Belt for Machinery Automotive
NINGBO HIPOWER TRANSMISSION CO., LTD.- Standard or Nonstandard：Standard
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Electric Cars, Motorcycle, Food Machinery, Mining Equipment, Agricultural Machinery, Car
- Feature：Flame-Retardant, Anti-Static, Wear-Resistant, High Temperature-Resistance
- Tensile Strength：Strong
- Material：Rubber
- Type：V Belt
Base Info
- Model NO.：PK, PJ, DPK, PJ
- Transport Package：Plastic Bag, Carton
- Specification：4PK900
- Trademark：GPBELT
- Origin：China
- HS Code：4010390000
- Production Capacity：50000PCS,Day
Description
Basic Info.
Model NO. PK, PJ, DPK, PJ Transport Package Plastic Bag/ Carton Specification 4PK900 Trademark GPBELT Origin China HS Code 4010390000 Production Capacity 50000PCS/DayProduct Description
Poly V Belt ( V Ribbed Belt)Feature
Poly V belt is made up of strong high modulus threads and special neoprene rubber compound. By jointing each V belt, they have features of high rigidity on horizontal direction and smooth move, and not easy to shake, to slay and to overturn. V-Ribbed belt is formed and vulcanized only in one time. It has an entire structure, even flowing power on each belt, large load capacity and long life. It is fit for powerful mechanical transmission. It has the advantages of both v Belt and flat transmission belt, soft and tough, tight and efficient.

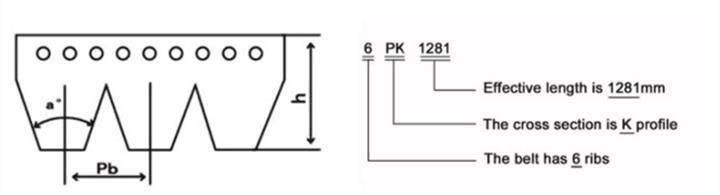

| Type No. | Rib Section | Angle of Rib | Thickness | Rib Numbers | Length Range |
| PH | 1.6 | 40 | 3mm | 3-54 | 540-1270 |
| PJ | 2.34 | 40 | 4mm | 3-36 | 540-1880 |
| PK | 3.56 | 40 | 4-6mm | 3-23 | 600-2400 |
| PL | 4.7 | 40 | 10mm | 3-16 | 900-3000 |
| PM | 9.4 | 40 | 17mm | 3-8 | 1500-3000 |
Material option
.Rubber: CR or EPDM
.Cord: Normal quality or High Tension Quality

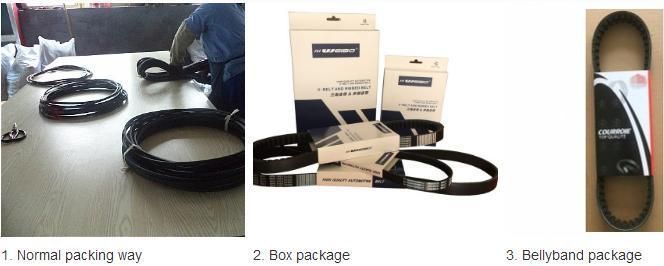

Packing & Shipping

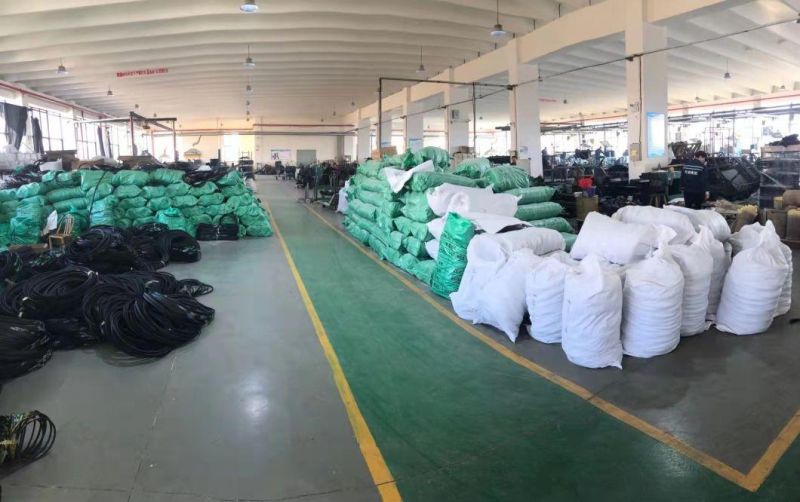

Warehouse
Certificate
FAQ
Q1. Can I have a sample order?
Yes, any sample order is welcome to know the quality of our products.
Q2. What about the lead time of the sample or the final order?
2-5 days for normal sample.
20-30 days for a formal order.
Q3. How much is the minimum quantity for each item in one order?
One mould quantity is ok. Usually around 50pcs for small item, 10pcs for big item.
Q4. Is it possible to print our logo or brand on the belt?
Yes, we can print your logo or design on the belt after receipt of your formal authorization letter of the logo or your brand.
Q5. Do you offer the guarantee for your product?
Yes, usually we offer one year warranty for all of our products.
