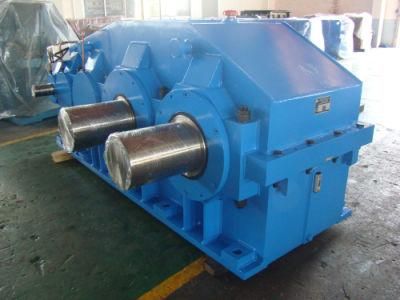

Z Series Single Stage Hard Tooth Surface Gear Reducer Gearbox
Guangdong Lingyi Industrial Technology Co., Ltd.- Application：Motor, Machinery, Agricultural Machinery, Belt Conveyor, Bucket Elevator,Agitator, Hositing
- Function：Distribution Power, Change Drive Torque, Speed Changing, Speed Reduction
- Layout：Coaxial
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Step：Single-Step
Base Info
- Model NO.：ZDY100
- Type：Cylindrical Gear Box
- Color：Grey, Blue, Yellow, Green, Orange
- Input Motor：4p ~ 6p (1500rpm~750rpm)
- Material：Cast Iron
- Toothed Portion Shape：Toothed Portion Shape
- Manufacturing Method：Grinding Gear
- Shaft：Parallel Shaft
- Manipulate Way：Robotics
- Changes Way：Stepped
- Transport Package：Export Package
- Specification：ISO9001: 2008
- Origin：China
- HS Code：8483409000
- Production Capacity：53000 Sets,Month
Description
Gear Reducer Features
1.The gear is made of high strength low carbon alloy steel through carburization and quenching. The hardness of tooth surface may reach to HRC58-62. All gear adapts NC tooth grinding process, high in accuracy and good in contact performance;
2.High in transmission efficiency: single stage, more than 96.5%; double-stage, more than 93%; three-stage, more 90%;
3.Smooth and stable in run, low noise;
4.Compact, light, long life, high bearing capacity;
5.Easy to disassemble, inspect and assemble.
Gear Reducer Aplication fields
widely used in various low-speed transmissions,
which are general basic parts of mechanical transmission.
Such as metallurgy, mines, hoisting, transportation, cement, architecture, chemical, textile, printing and dyeing, pharmaceutical, etc....
FAQ
Q: What is your MOQ of this item?
A: 1pcs. For the first time cooperation, we accept trial sample order.
Q: What's your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
Q: What's the delivery time?
A: 30 days after receiving your L/C or T/T deposit.
Q: Can we used our own brand on motors ?
A: Sure, we can offer OEM service, manufacture with your authorized brand.
Q: How long is your warranty?
A: 12 months after receiving B/L.

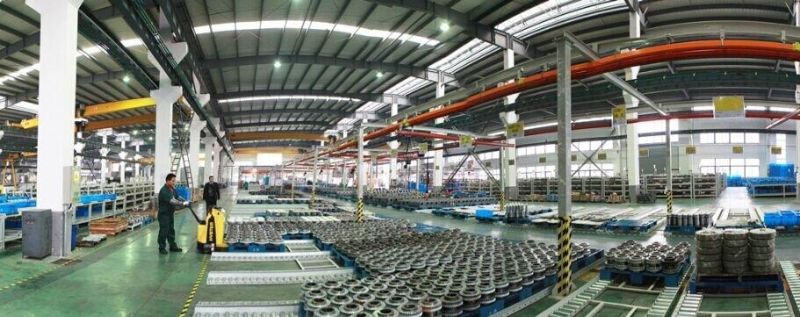

Factory

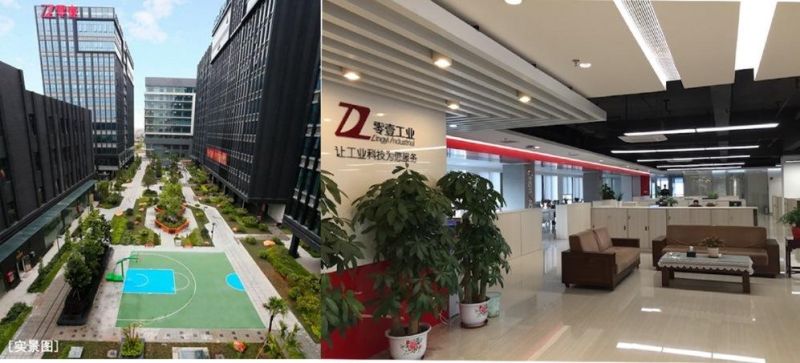

Office Block
