Solid Shaft Planetary Gearbox with Flange / Foot Mounted

Shanghai SGR Heavy Industry Machinery Co., Ltd.
  • Application：Motor, Electric Cars, Machinery, Marine, Agricultural Machinery
  • Function：Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
  • Layout：Coaxial
  • Hardness：Hardened Tooth Surface
  • Installation：Horizontal Type
  • Step：Four-Step

Base Info

  • Type：Planetary Gear Box
  • Transport Package：Wooden Case
  • HS Code：8483409000
  • Production Capacity：400PCS,Month

Description

Basic Info.

Type Planetary Gear Box Transport Package Wooden Case HS Code 8483409000 Production Capacity 400PCS/Month

Product Description

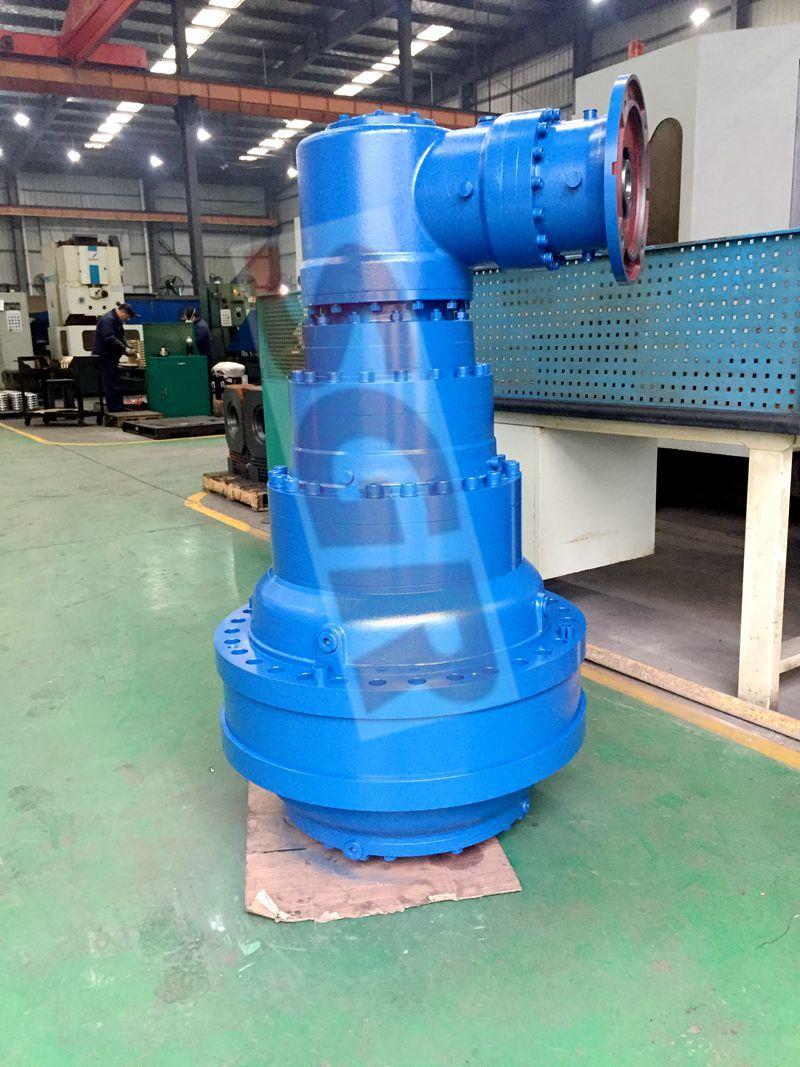

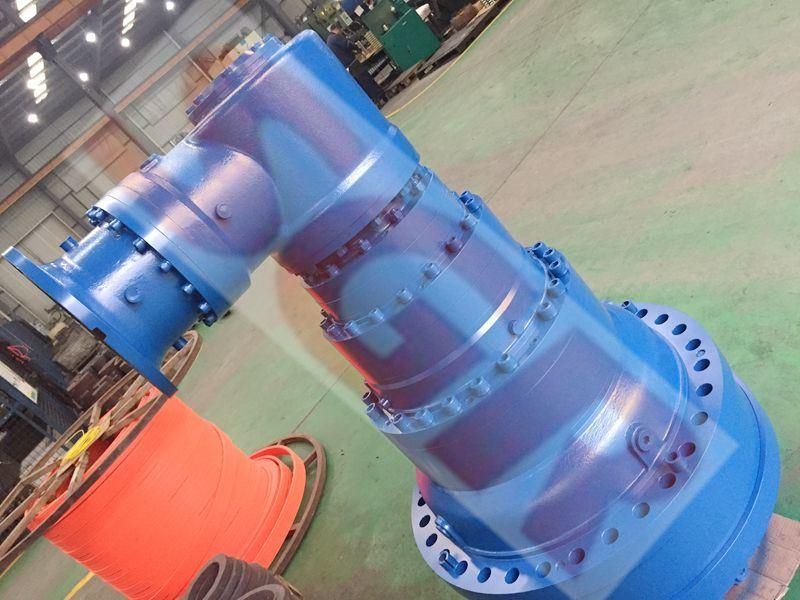

Solid Shaft Planetary Gearbox with Flange / Foot Mounted

Technicial data:
1. Ratio range: 3.15-9000
2. Input power: 0.25-55KW
3. Permit torque rang: ≤ 800000N. M
4. Output speed: 0.425-445 r/min
5. Structure mode: Possibility of the flange, foot, or shaft mounting solutions

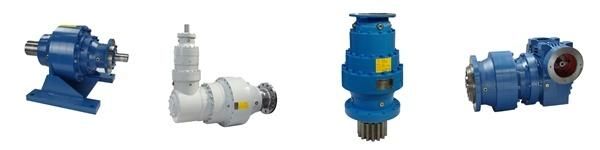

Foot Mounted High Torque Inline Planetary Gearbox for Machining Equipment Equivalent to Bonfiglioli, Brevini, Rossi, Dinamic Oil, Reggiana Riduttor



Characteristic of Foot Mounted High Torque Planetary Gearbox :

1. The wide and comprehensive range of N series for industrial applications
2. Low-speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low-speed shaft bearing

 Ratio 3.15:1 to 9000:1
 Reduction Stages up to 6 reduction stages in one gearbox
 Nominal Output Torque up to 800,000N.m

Company Certificate:
Foot Mounted High Torque Inline Planetary Gearbox for Machining Equipment Equivalent to Bonfiglioli, Brevini, Rossi, Dinamic Oil, Reggiana Riduttor

Packaging & Shipping

Package :

SGR gearbox use standard wood case per gear motor | gear unit.

Foot Mounted High Torque Inline Planetary Gearbox for Machining Equipment Equivalent to Bonfiglioli, Brevini, Rossi, Dinamic Oil, Reggiana Riduttor


Shipping :

According to Customer requirement, we delivery products by different transport, Sea shipping, Air Transportation / Express or Truck transportation etc.

You Appoint, We Service

Solid Shaft Planetary Gearbox with Flange / Foot Mounted
