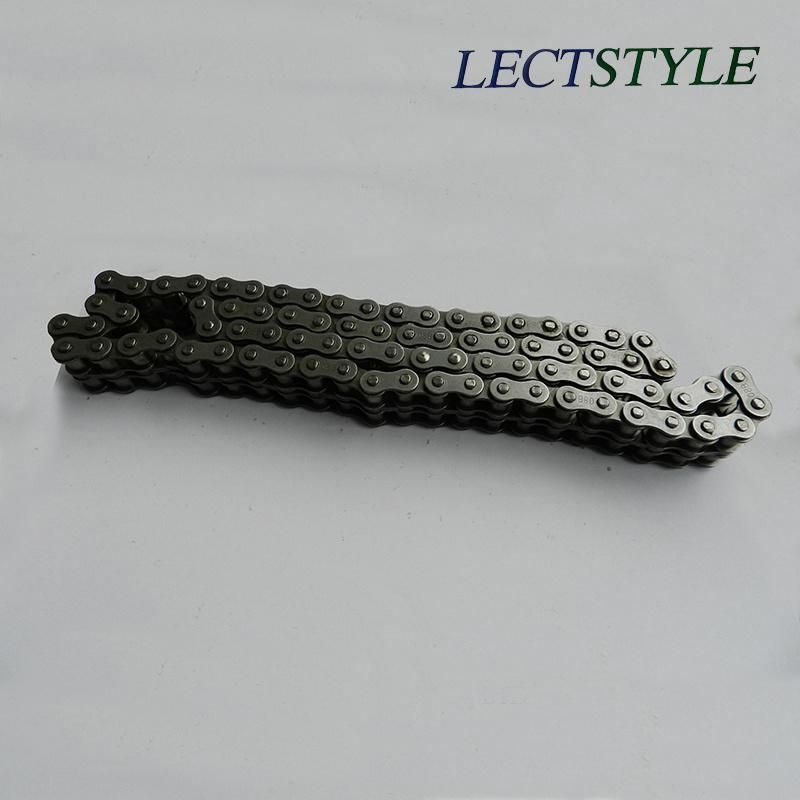

• Model NO.：08B-2
• Model：08b-2
• Pitch：12.7mm
• Roller Diameter：8.51mm
• Width Between Inner Plates：7.75mm
• Pin Diameter：4.45mm
• Pin Length：32.2mm
• Inner Plate Depth：11.8mm
• Plate Thickness：1.6mm
• Ultimate Tensile Strength：32mm
• Transverse Pitch：13.92mm
• Transport Package：Plywood Case
• Specification：ISO, CE
• Trademark：LECTSTYLE
• Origin：China
• HS Code：73151190
• Production Capacity：50000 Meters Each Month

Detailed Photos

Our Advantages

Company Profile

After Sales Service

FAQ

Question:
1.Q:How about mould cost?
A: primarily depend on : 1.Drawing, 2.material, 3.weight and quantity.
We need to know the structure of each parts to analyze the mold solution by:

1) --Complete design drawing, product model or actual sample ----- the best way
--PDF drawing with complete dimension for each parts
--Clearly photos for each parts with more angle-views to show every features.

2)The materials, technical parameters and surface treatments.
technical parameters: tell us about its model, pitch, roller diameter, width between inner plates, attachment type, outside drawing etc.

3)The quantity of order.

2.Q:How to control the product processing?
A: The processing report or pictures will be sent to the customer every week/ each month for review.

3.Q:Who will own the mould?
A:Customer, also the mould can be kept in our factory for future order.

4.Q:How long do you make your quotation?
A:After receiving detail informations we will quote in 1 to 3 days.

5.Q: MOQ? ---
small chain type: if its pitch is less than 38.10mm and its thickness is less than 5mm, MOQ is 1500 meters on these roller chains or conveyor chains;
middle chain type: MOQ is 1000 meters on these roller chains or conveyor chains;
big chain type: if its pitch is more than 76.20mm and its thickness is more than 10mm, MOQ is 200 meters on these roller chains or conveyor chains;
