• Model NO.：TY Reducer
• Input Power：0.55kw~90kw
• Linear Velocity：≤20m,S
• Working Temperature：0-4c
• Models：Ty50~Ty250
• Material：Cast Iron
• Manipulate Way：Semi-Automatic Manipulation
• Toothed Portion Shape：Bevel Wheel
• Changes Way：Stepped
• Manufacturing Method：Forging, Grinding
• Housing：Gray Iron
• Shafts Position：in Line
• Center Distance：50~250mm
• Nominal Ratio：14~100
• Transport Package：Wooden Case; Carton; Pallet
• Specification：ISO; CE; SGS
• Trademark：AOKMAN
• Origin：China
• HS Code：8483409000
• Production Capacity：80000

Basic Info.

Model NO. TY Reducer Input Power 0.55kw~90kw Linear Velocity ≤20m/S Working Temperature 0-4c Models Ty50~Ty250 Material Cast Iron Manipulate Way Semi-Automatic Manipulation Toothed Portion Shape Bevel Wheel Changes Way Stepped Manufacturing Method Forging, Grinding Housing Gray Iron Shafts Position in Line Center Distance 50~250mm Nominal Ratio 14~100 Transport Package Wooden Case; Carton; Pallet Specification ISO; CE; SGS Trademark AOKMAN Origin China HS Code 8483409000 Production Capacity 80000

Product Description

Good Quality 2020 Ty Series Coaxial Helical Gearbox ReducerComponents:
1. Housing: Gray Iron
2. Gears: High Quality Alloy Steel, Hardened Involute Gears, Carburizing, Quenching, Grinding, Gear Accuracy 6 Class
3. Input Configurations:
Equipped with Electric Motors (3 Phase Asynchronous AC Motor, 4 Poles, Motor Mounting B5/B35)
4. Output Configurations:
Keyed Solid Shaft Output
Models:
TY50~TY250
Features:
1. Input shaft and output shaft are located in one same axis
2. Clockwise or counterclockwise rotation is allowed
3. Configured with 3 phase asynchronous motors(4 Poles)
4. Motor Mounting: B5, B35
5. Small size, high load capacity, long service life, low noise, high efficiency
6. Gear linear velocity (gear tangential speed) is not more than 20m/s

Parameters:

Models	Input Power	Nominal Ratio	Output Shaft Dia.(m6)	Weight
TY50	0.55KW~1.1KW	14~28	24mm	25KG
TY63	0.55KW~1.5KW	14~40	25mm	32KG
TY80	1.1KW~3KW	14~40	35mm	46KG
TY100	1.5KW~5.5KW	14~56	45mm	75KG
TY112	1.5KW~7.5KW	14~80	50mm	88KG
TY125	2.2KW~11KW	14~80	55mm	99KG
TY140	3KW~15KW	14~90	65mm	155KG
TY160	3KW~22KW	14~100	75mm	184KG
TY180	4KW~37KW	14~100	85mm	257KG
TY200	5.5KW~45KW	14~100	95mm	315KG
TY224	7.5KW~55KW	14~100	100mm	428KG
TY250	11KW~90KW	14~100	110mm	593KG

Notes:
1. Input Speed n1=1500rpm
2. Nominal Ratio: 14, 16, 18, 20, 22.4, 25, 28, 31.5, 35.5, 40, 45, 50, 56, 63, 71, 80, 90, 100
3. Output shaft tolerance m6
Installation:
Foot Mounted
Inclination angle of the mounting position is not more than 20 degrees
Lubrication:
Oil-bath and Splash Lubrication
Cooling:
Natural Cooling

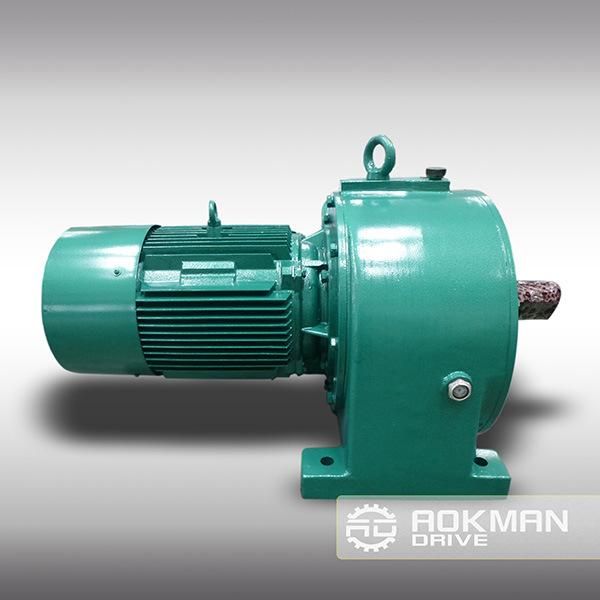

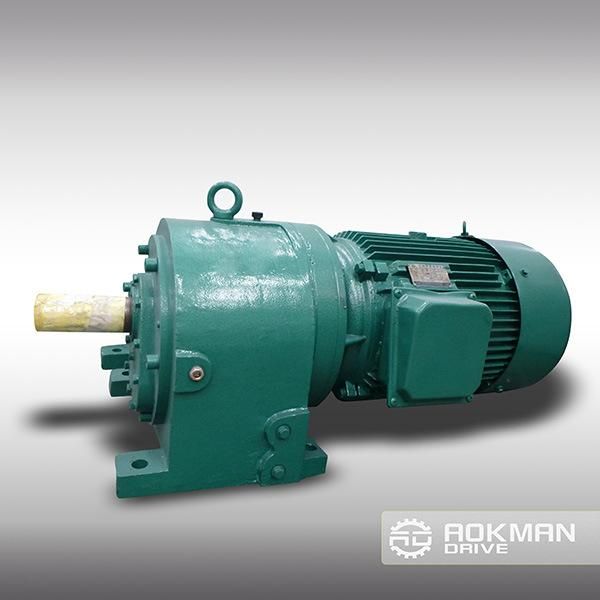

Product picture:

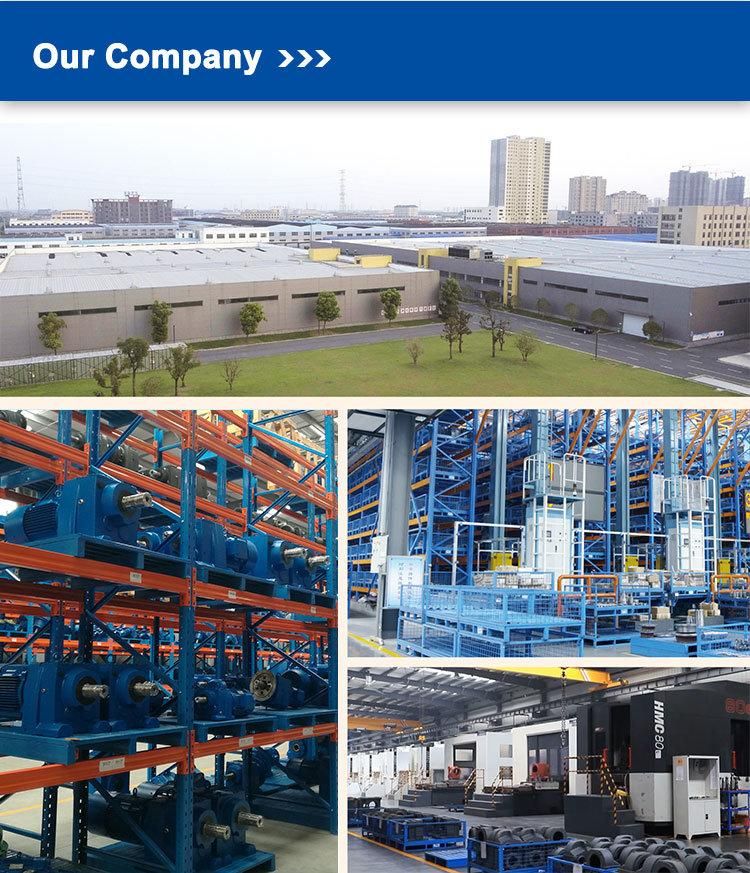

Our company :
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.


Customer visiting:


FAQ:
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set

If you have any demand for our products please feel free to contact me.
