Helical Bevel Horizontal Type Gear Speed Reducer with Hollow Shaft

Shanghai SGR Heavy Industry Machinery Co., Ltd.
  • Application：Motor, Electric Cars, Machinery, Marine, Agricultural Machinery
  • Function：Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
  • Layout：Coaxial
  • Hardness：Hardened Tooth Surface
  • Installation：Horizontal Type
  • Step：Four-Step

Base Info

  • Type：Planetary Gear Box
  • Transport Package：Wooden Case
  • HS Code：8483409000
  • Production Capacity：400PCS,Month

Description

Shaft Dia.(mm)
Solid        HallowCenter HeightOutput Flange Dia.(mm)Power(kw)RatioPermissible Torque(N.m)Weight(KGS)37φ25k6φ30h7100φ110/1600.18-3.05.36-106.382001147φ30k6φ35h7112φ120/2000.18-3.05.81-131.874002057φ35k6φ40h7132φ155/2500.18-5.56.57-145.146002767φ40k6φ40h7140φ155/2500.18-5.57.14-144.798203377φ50k6φ170180φ170/3000.37-11.07.24-292.1815505787φ60m6φ60h7212φ215/3500.75-22.07.19-197.1827008597φ70m6φ70h7265φ260/4501.1-30.08.95-176.054300130107φ90m6φ90h7315φ304/4503.0-45.08.74-141.468000250127φ110m6φ100h7375φ350/5507.5-90.08.68-146.0713000380157φ120m6120h7450φ400/66011.0-160.012.65-150.4118000610167φ160m6140h7500φ80011.0-200.017.28-163.91320001015187φ190m6160h7600φ80018.5-200.017.27-180.78500001700


 Helical Bevel Horizontal Type Gear Speed Reducer with Hollow Shaft

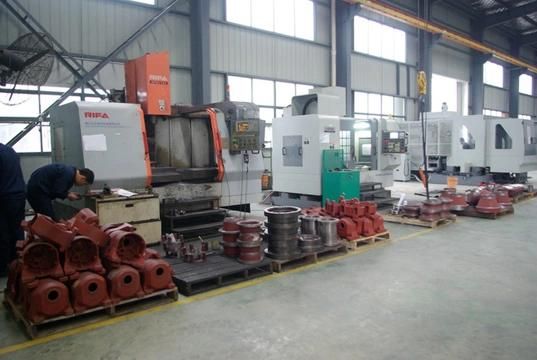

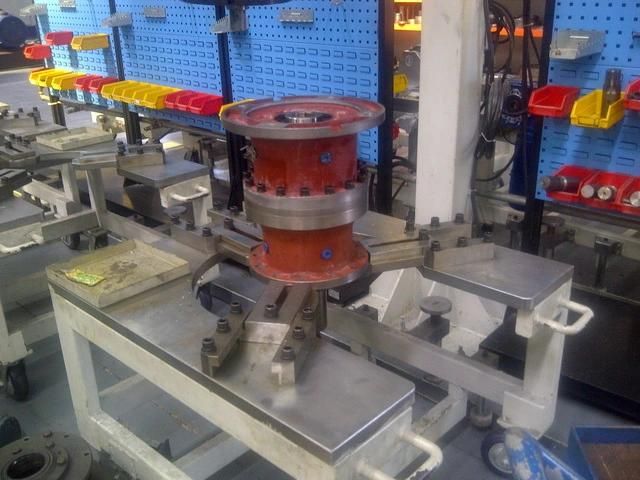

Production pictures:

Helical Bevel Horizontal Type Gear Speed Reducer with Hollow Shaft
Helical Bevel Horizontal Type Gear Speed Reducer with Hollow Shaft
Helical Bevel Horizontal Type Gear Speed Reducer with Hollow Shaft
Helical Bevel Horizontal Type Gear Speed Reducer with Hollow Shaft
Helical Bevel Horizontal Type Gear Speed Reducer with Hollow Shaft


FAQ:
1.Are you a factory or trader ?
We are a professional factory which has 20 years history specialized in gear transmission .
2.MOQ:
Our MOQ is 1pcs. However there is one handling cost $150 for the single order which less than $3000.00
3. Warranty
Our warranty is 12months
4. Payment term
100% T/T in advance and LC at sight .
5. Do you accept customization ?
YES.SGR have strong R&D team, we can provide customizable service according to requirements.
6. Packing
Generally we use standard export plywood case to arrange the shipment .
7. Delivery time
In normal ,time of delivery is 30days after receiving the prepayment .
8. What kinds of certification do you use ?
DNV-ISO9001:2008, SGS,CE etc, And new products patent.
9. What kinds of inspection you do before shipment ?
We do temperature test, noise, and oil leak inspection and commissioning before shipment.
10.How do you solve if the production have problem ?
Mostly, we don't need customer send the goods back to us. Because the cost is very high, if there meets a problem,we firstly ask for the pictures for damaged parts. And base on the pictures, we can have a basic idea for the defect reason. Our guarantee is 12 months, if during the guarantee, we can supply repair .
