• Model NO.：MN200-810
• Type：Planetary Gear Box
• Transport Package：Wooden Case
• HS Code：8483409000
• Production Capacity：400PCS,Month



Equivalent To Other Brand :



 Bonfiglioli

 300 Series

 Brevini

 EM/ED/ET/ET

Dynamic oil

RE Series

REGGIANA RIDUTTOR

RR Series

Application:

N series planetary speed reducer is widely used for industrial applications. With the designs deriving from modern innovating, the product makes great progress in a compact, price effectiveness and combination. The product configuration is highly versatile due to several options as far as the mounting, the output shaft and the motor interface. With overloading bearing fixed to the output shaft, the products has been one of the powerful solutions to heavy-duty drive problems.

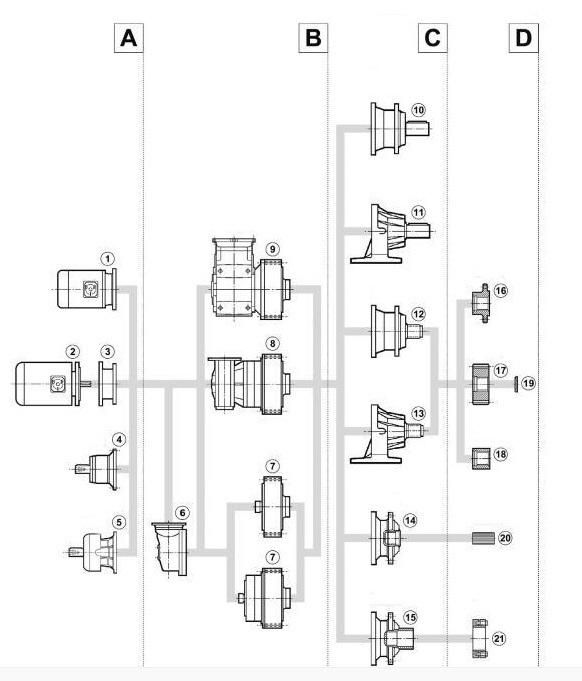

How To Select a Complete SGR planetary gearbox:
Complete planetary gearbox made up of 4 parts :AInput Component 1:AC electric motor 2: NEMA or IEC motor 3: NEMA or IEC motor adapter flange 4: the Solid input shaft 5: Solid input shaft with the fanBGear Reductions (co-axial stage 1-5 ,right angle 1-4 . ) 6:Right angle reduction stage 7: Planetary reduction stage 8: Worm/planetary combination 9: Bevel helical planetary combination  COutput Component  10: Flanged output/ Footed output-Solid shaft 11: Flanged output/ Footed output-Male spline shaft 12: Flanged output/ Footed output- Female spline shaft 13: Flanged output/ Footed output- 14: Flanged output/ Footed output-Pinion 15: Shaft Mount output for shrink discD Fittings 16: Flange 17: Pinion gear 18: Sleeve coupling 19: Endplate 20: Splined bar 21: Shrink disc





Packaging & Shipping

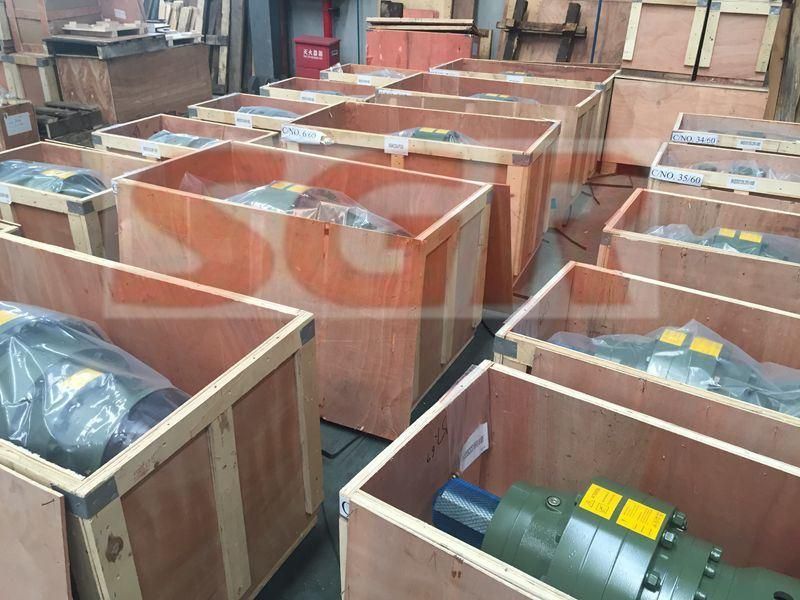

Package :

SGR gearbox use standard wood case per gear motor | gear unit.

hipping :

According to Customer requirement, we delivery products by different transport, Sea shipping, Air Transportation / Express or Truck transportation etc.

You Appoint, We Service!

Our Services

With all our activities DNV-ISO 9001, SGS -certified, we stand for top-quality service. Entrusting your gearboxes to the care of our Services.

Help protect your gearbox from wear and grinding, SGR gearbox converts torque reliably and effi­ciently.
We customize our SGR planetary gear units, double enveloping worm gearbox, helical gear motor, modular design helical gear unit, worm gearbox, cycloidal gearbox etc to fit your application and meet your needs.

These features enable a reliable and safe service life of over 200 000 operational hours.

Our customers have been placing their trust in SGR gear units since 1997. More than 500 000 gear units of our gearbox are in use reliably around the world, in many cases under very harsh conditions.



Our Honour and Patent :

ABOUT US:

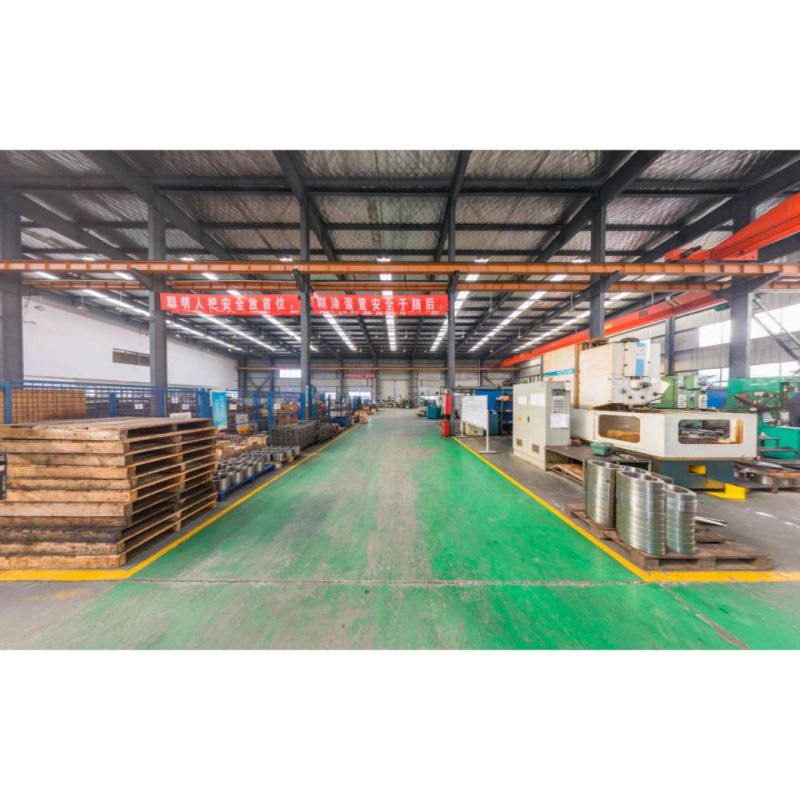

Shanghai SGR Heavy Industry Machinery Co., Ltd.(formerly known as Shanghai Great Wall Reducer Co., Ltd. ) (sgrgear.en.made-in-china.com)  has accumulated rich original designing & manufacturing experience after being founded in 1996. SGR brand planetary gear reducer has won honor of "Science and Technology Advancement Prize" awarded by the National Speed Reducer & Variator Industry Association.

We produce planetary gear units, planar double-enveloping worm gear speed reducers (cone worm gear reducer), helical-bevel gear motors, worm gear reducers, helical worm gear motors, helical gear motors and many other types of gear units. SGR gear motors and gear units have given satisfactory performance in different industrial applications, including metallurgy, mineral, architecture, shipbuilding, petroleum combination, aviation space-flight, lift routeing, textile mechanic, cement, pharmaceuticals, pumps, general mechanic and other domain.

With the advantage of high quality & competitive price, SGR gear motor and gear units are widely welcomed in the domestic market and exported to Southeast Asia, Middle Asia, North America and European countries etc.

With the excellent testing program, SGR company is always keeping up with the most advanced technology in the world. We have already acquired DNV-ISO9001: 2008 certificate,SGS, CE etc and a patent on SGR branded gearbox.

We have adopted advanced CAD and CIMS in design & manufacture, which help our engineers develop 3 - 5 series of new efficient products each year. All staff in sales & service department are well trained termly, thus you will be always warmly welcomed and understood by our company.



FAQ

• Q:  What is your business type?
• A: SGR is gearbox manufacturer and Solutions Provider,  we are experts of the planetary gear reducer, cone worm gearbox, modular design helical gear motor, worm gearbox etc. A suitable model will offer to you according to your requirement, besides, SGR also has professional technical team special in the custom gearbox and gearbox repair.



• Q: How long can you provide products guarantee Period?
• A: Based on different gearbox types, 12-18 months.



• Q: What's Certification your product acquiry  ?
• A: DNV-ISO9001:2008 ,SGS ,CE etc. and new products patent.



• Q: How many technical employees in your company?
• A: We have 10 engineers in our R&D Dep., included 2 engineers who enjoy government 's allowance.



• Q: Where is your company & how to contact you?
• A: Our factory located in No.879 , JinLiu Rd, JinShan District , Shanghai City , China .
